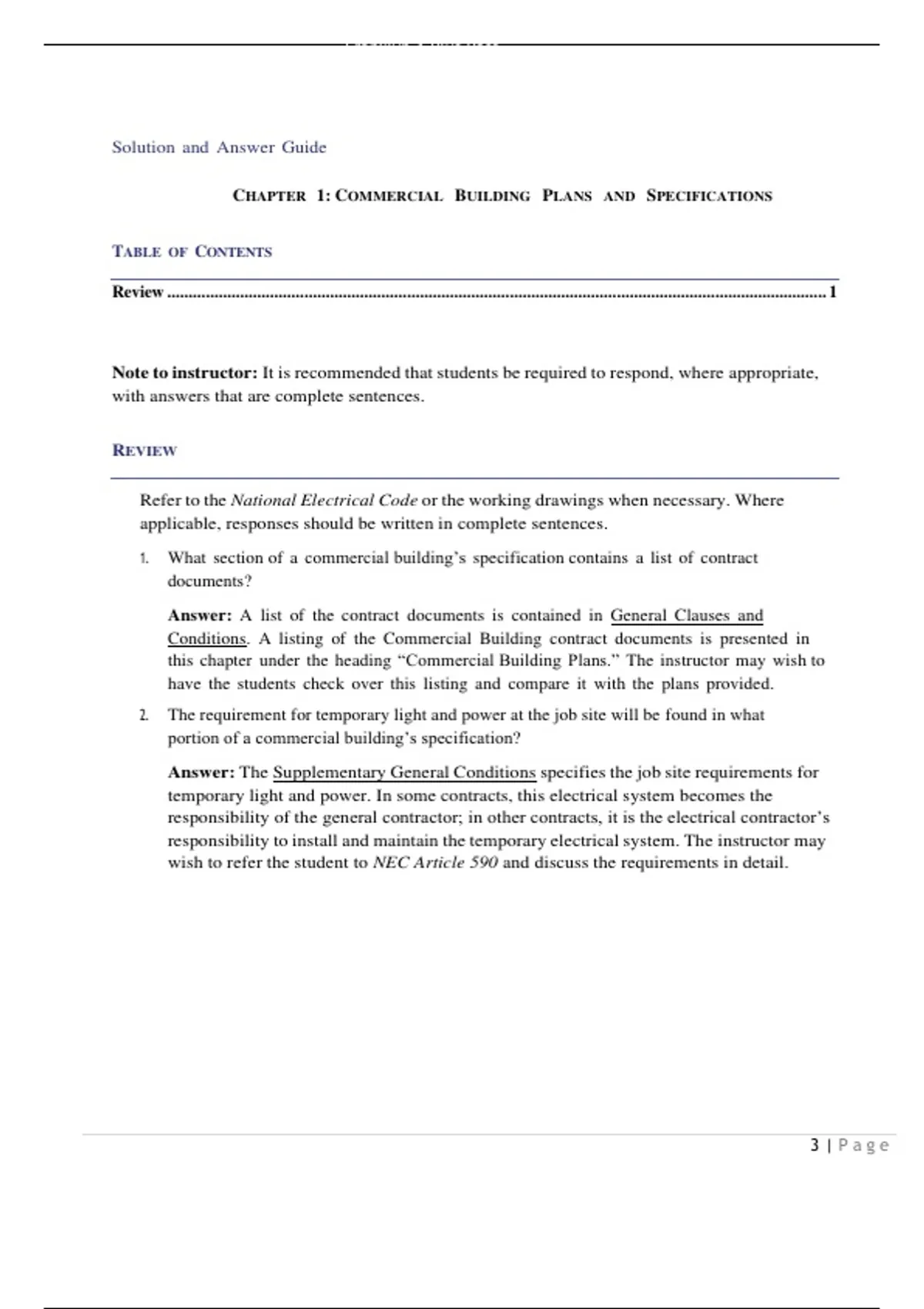

CHAPTER 1: COMMERCIAL BUILDING PLANS AND SPECIFICATIONS
TABLE OF CONTENTS
Review .......................................................................................................................................................... 1
Note to instructor: It is recommended that students be required to respond, where appropriate,
with answers that are complete sentences.
REVIEW
Refer to the National Electrical Code or the working drawings when necessary. Where
applicable, responses should be written in complete sentences.
1. What section of a commercial building’s specification contains a list of contract
documents?
Answer: A list of the contract documents is contained in General Clauses and
Conditions. A listing of the Commercial Building contract documents is presented in
this chapter under the heading ―Commercial Building Plans.‖ The instructor may wish to
have the students check over this listing and compare it with the plans provided.
2. The requirement for temporary light and power at the job site will be found in what
portion of a commercial building’s specification?
Fr
Answer: The Supplementary General Conditions specifies the job site requirements for
an
temporary light and power. In some contracts, this electrical system becomes the
responsibility of the general contractor; in other contracts, it is the electrical contractor’s
kl
responsibility to install and maintain the temporary electrical system. The instructor may
wish to refer the student to NEC Article 590 and discuss the requirements in detail.
yn
Solutions Manual for Electrical Wiring Commercial18th Edition by Phil Simmons A+
Energize your electrical mastery with this comprehensive solution manual for Electrical Wiring Commercial, 18th Edition.
e
Co-authored by Phil Simmons and Ray C. Mullin, it delivers precise, step-by-step solutions to all end-of-chapter exercises,
calculations, and blueprint-based projects—over 600 items—ensuring compliance with the 2023 NEC and beyond.
A
Navigate commercial installations: service entrances, feeders, branch circuits, motors, transformers, emergency systems,
EV charging, and green energy integrations like solar arrays and LED controls, all aligned with 2025 updates on smart building codes
arc-fault protection, and OSHA safety protocols.
pl
Detailed explanations include load computations, conduit sizing, grounding diagrams, and troubleshooting scenarios,
bridging theory to hands-on practice with real-world examples from retail, office, and industrial sites.
Enhanced with code references, wiring schematics, and pedagogical aids, this manual accelerates learning for apprentices,
us
journeymen, and instructors. Ideal for IBEW prep, NEC exams, or vocational courses, it minimizes errors, boosts code confidence,
and powers career advancement in commercial electrification. Wire up success—today!
Pa
3|Page
ss
, Franklyn A Plus Pass
3. The electrician uses the Schedule of Working Drawings for what purpose?
Answer: The electrician uses the Schedule of Working Drawings to determine whether
all of the drawings are at hand. The information on ―the other sheets‖ may be very
important, especially in coordinating with other contractors.
4. Complete the following items by indicating the letter(s) designating the correct
source(s) of information:
No. Answer Item Information
4. Sections Ceiling height Sections, Sheet A6
5. Electrical Electrical receptacle Electrical symbol schedule, Chapter 2,
symbol style Figure 2–6
schedule
6. Electrical Electrical outlet Electrical layout drawings, Sheets El,
layout location E2, and E3
drawings
7. Elevations Exterior wall finishes Elevations, Sheets A4 and A5
8. Site plan Grading elevations Site plan, Sheet A4
9. Electrical Panelboard schedules Electrical layout drawings, Sheet E4
layout
Fr
drawings
an
10. Architectural Room width Architectural floor plan, Sheets Al, A2,
floor plan and A3
kl
11. Architectural Swing of door Architectural floor plan, Sheets Al, A2,
yn
floor plan and A3
12. Sections View of interior wall Sections, Sheet A6
e
Match the items on the left with those on the right by writing the letter designation of the
A
appropriate organization from the list on the right.
pl
13. NEC Electrical Code National Electrical Code (NEC)
us
14. IAEI Electrical inspectors International Association of Electrical
Inspectors (IAEI)
Pa
4|Page
ss
, Franklyn A Plus Pass
15. NFPA Fire codes National Fire Protection Association
(NFPA)
16. IESNA Lighting information Illuminating Engineering Society of
North America (IESNA)
17. UL Listing service Underwriters Laboratories, Inc. (UL)
18. NEMA Manufacturers’ National Electrical Manufacturers
standards Association (NEMA)
19. PE Seal Professional Engineer (PE)
Match the items on the left with those on the right by writing the letter designation of the
proper level of NEC interpretation from the list on the right.
20. with special Allowed by the Code Shall be permitted, or Shall not be
permission required, NEC
21. with special May be done Shall be permitted, or Shall not be
permission required, NEC
22. shall Must be done Shall, National Electrical Code
23. shall Required by the Code Shall, National Electrical Code
Fr
24. never Up to the electrician Shall be permitted, or Shall not be
an
required, NEC
25. Find NEC 250.52(A)(5) and record the first four words.
kl
Answer: The first four words of NEC 250.52(A)(5) are Rod and pipe electrodes.
yn
Show required conversion calculations for problem 26 and problem 27.
e
26. Luminaire style F is four feet long. The length in SI units, as specified by the NEC, is
A
Answer: The length in SI units is 1.22 m; 4 ft × 0.3048 m/ft = 1.2192 m. As will be
discussed later, this luminaire is now called a 4 by 2 or the equivalent 1200 by 600 in
pl
metric terms. This question assumes that the luminaire is exactly 4 ft long.
27. The gross area of the drugstore basement is 1395 square feet. The area in square
us
meters is
Answer: The area in SI units is 129.7 sq. m; 1395 sq. ft × 0.093 sq. m/sq. ft = 129.7 sq. m
Pa
5|Page
ss
, Franklyn A Plus Pass
To answer Questions 28–31, refer to the Plans included with this book. Determine the
Following dimensions. Write the dimensions using unit names, not symbols (for example, 1
foot, not 1’), and indicate the source of the information.
28. What is the inside clear distance of the interior stairway to the drugstore basement?
Answer: The inside clear distance of the interior stairway to the Drugstore basement is 4
ft 0 in. (1.22 m), as scaled from Sheet A2.
29. What is the gross square footage of each floor of the building?
Answer: The gross area of each floor of the building is 60 ft × 43 ft = 2580 sq. ft (18.82
m × 13.1 m = 246.5 sq. m), as taken from Sheets Al, A2, and A3.
30. What is the distance in the drugstore from the exterior block wall to the block wall
separating the drugstore from the bakery?
Answer: The distance from the exterior block wall in the Drugstore to the block wall separating
the Drugstore from the Bakery is 21 ft 7 in. (6.58 m), as shown on Sheet A2.
31. What is the finished floor to finished ceiling height on the second floor?
Answer: The finished floor to finished ceiling height on the second floor is 8 ft 6 in.
(2.59 m), as available from East and West Elevations A41–2, and Sheet A6, Cross
Sections A–A and B–B.
For problems 32–34, cite the NEC source. We will show the method of using the NEC
Index for the first two questions in Chapter 1 and will provide this same method of
locating requirements in other chapters of this book.
32. The standard ampere ratings for fuses and fixed trip circuit breakers.
Fr
Answer: The standard ampere rating for fuses and fixed trip circuit breakers is given in
NEC Table 240.6(A).
an
To find this information in the Index of the NEC, locate ―Circuit breakers, Article 240, and
locate Rating and under that locate Fixed-Trip circuit breakers, 240.6(A)…‖ This will
kl
provide the Section number for the ratings.
yn
33. The minimum bending radius for metal-clad cable with a smooth sheath with an
external diameter of 1 in.
e
Answer: The minimum bending radius for metal clad cable with a smooth sheath with
A
an external diameter of 1 in. (size 1) is given in NEC 330.24(A)(2) as 12 times the diameter.
To find this information in the Index of the NEC, locate ―Metal-clad Cable, Article 330, and
pl
under that locate ―Bends, 330.24.‖ 330.24(A)(2).
us
34. The permission to use splices in busbars as grounding electrode conductors.
Answer: The permission to use splices in busbars as a grounding electrode conductor is
Pa
given in NEC 250.64(C)(2).
