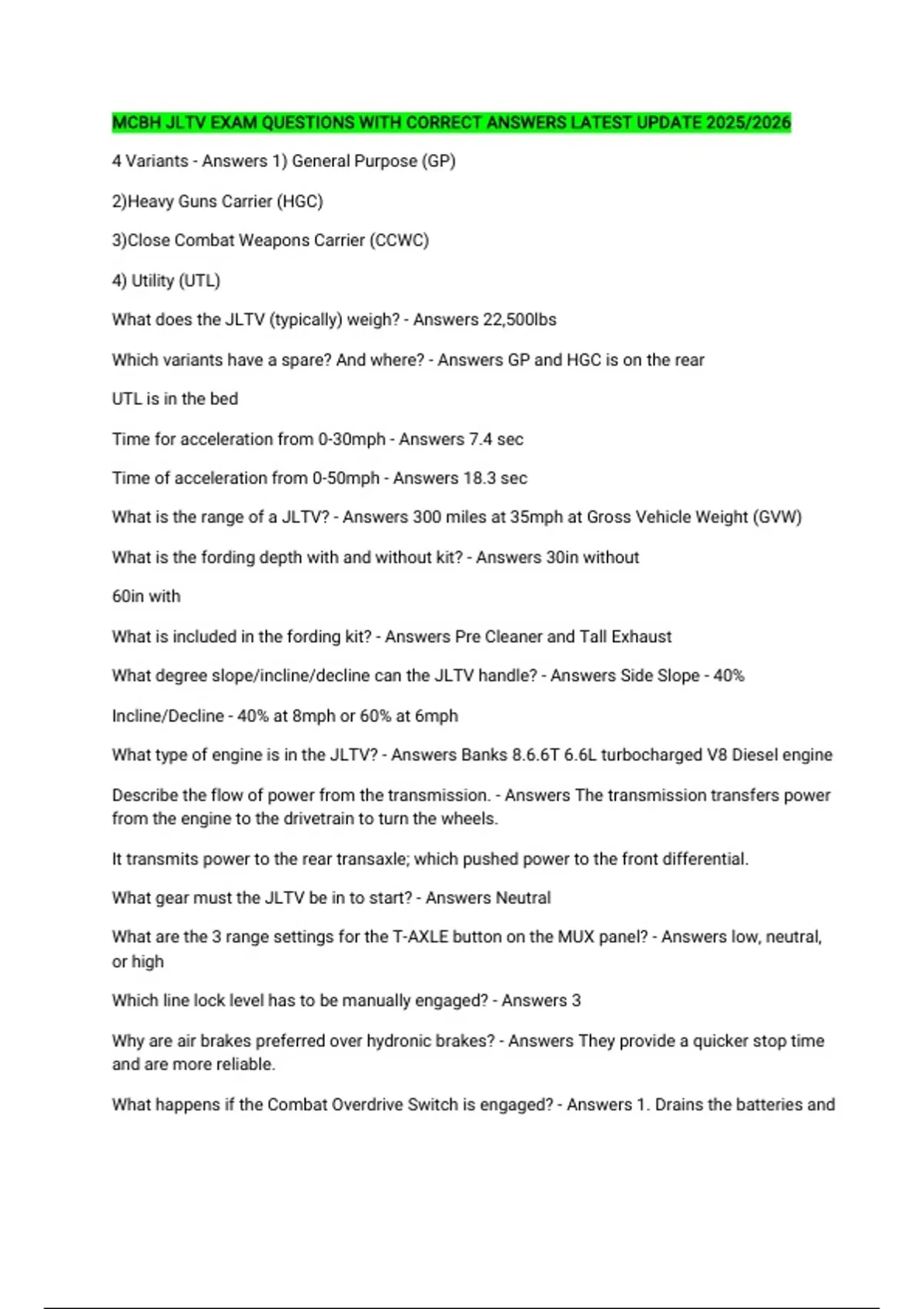

MCBH JLTV EXAM QUESTIONS WITH CORRECT ANSWERS LATEST UPDATE 2025/2026
4 Variants - Answers 1) General Purpose (GP)
2)Heavy Guns Carrier (HGC)
3)Close Combat Weapons Carrier (CCWC)
4) Utility (UTL)
What does the JLTV (typically) weigh? - Answers 22,500lbs
Which variants have a spare? And where? - Answers GP and HGC is on the rear
UTL is in the bed
Time for acceleration from 0-30mph - Answers 7.4 sec
Time of acceleration from 0-50mph - Answers 18.3 sec
What is the range of a JLTV? - Answers 300 miles at 35mph at Gross Vehicle Weight (GVW)
What is the fording depth with and without kit? - Answers 30in without
60in with
What is included in the fording kit? - Answers Pre Cleaner and Tall Exhaust
What degree slope/incline/decline can the JLTV handle? - Answers Side Slope - 40%
Incline/Decline - 40% at 8mph or 60% at 6mph
What type of engine is in the JLTV? - Answers Banks 8.6.6T 6.6L turbocharged V8 Diesel engine
Describe the flow of power from the transmission. - Answers The transmission transfers power
from the engine to the drivetrain to turn the wheels.
It transmits power to the rear transaxle; which pushed power to the front differential.
What gear must the JLTV be in to start? - Answers Neutral
What are the 3 range settings for the T-AXLE button on the MUX panel? - Answers low, neutral,
or high
Which line lock level has to be manually engaged? - Answers 3
Why are air brakes preferred over hydronic brakes? - Answers They provide a quicker stop time
and are more reliable.
What happens if the Combat Overdrive Switch is engaged? - Answers 1. Drains the batteries and
, the vehicle will not start.
2. Disables the neutral safety start.
3. Bypasses all speed interlocks and systems.
4. Ties the batteries together for more amp
5. Disables speed limitations
What are the benefits associated with the JLTVs suspension? - Answers 1. Traction
2. Ride quality
3. Fuel efficiency
4. Vertical wheel travel of 20in
5. Full steering cramp angle
List the 5 suspension drive settings. - Answers S-Suspension Aided Egress System (SAES)
O-Operational
F-Fording
T-Tie Down
L-Loading
What is the purpose of the suspension lockout braces (slobs)? - Answers If there is a loss in
nitrogen pressure causing the vehicle to drop abruptly, the slobs act as a barrier to keep the
vehicle from injuring anyone under it.
What is the diameter of the wheels? - Answers 20in
What 3 solenoids are engaged when towing? - Answers R1 - ready
T2 - to
T3 - tow
What does CTIS stand for? - Answers Central Tire Inflation System
Describe the overspeed protection feature. - Answers If the vehicle is driving too fast for its
selected configuration, the vehicle will give a warning to the driver and automatically shift to the
next terrain setting after a given amount of time.
How many batteries are in the JLTV? - Answers 4
4 Variants - Answers 1) General Purpose (GP)
2)Heavy Guns Carrier (HGC)
3)Close Combat Weapons Carrier (CCWC)
4) Utility (UTL)
What does the JLTV (typically) weigh? - Answers 22,500lbs
Which variants have a spare? And where? - Answers GP and HGC is on the rear
UTL is in the bed
Time for acceleration from 0-30mph - Answers 7.4 sec
Time of acceleration from 0-50mph - Answers 18.3 sec
What is the range of a JLTV? - Answers 300 miles at 35mph at Gross Vehicle Weight (GVW)
What is the fording depth with and without kit? - Answers 30in without
60in with
What is included in the fording kit? - Answers Pre Cleaner and Tall Exhaust
What degree slope/incline/decline can the JLTV handle? - Answers Side Slope - 40%
Incline/Decline - 40% at 8mph or 60% at 6mph
What type of engine is in the JLTV? - Answers Banks 8.6.6T 6.6L turbocharged V8 Diesel engine
Describe the flow of power from the transmission. - Answers The transmission transfers power
from the engine to the drivetrain to turn the wheels.
It transmits power to the rear transaxle; which pushed power to the front differential.
What gear must the JLTV be in to start? - Answers Neutral
What are the 3 range settings for the T-AXLE button on the MUX panel? - Answers low, neutral,
or high
Which line lock level has to be manually engaged? - Answers 3
Why are air brakes preferred over hydronic brakes? - Answers They provide a quicker stop time
and are more reliable.
What happens if the Combat Overdrive Switch is engaged? - Answers 1. Drains the batteries and
, the vehicle will not start.
2. Disables the neutral safety start.
3. Bypasses all speed interlocks and systems.
4. Ties the batteries together for more amp
5. Disables speed limitations
What are the benefits associated with the JLTVs suspension? - Answers 1. Traction
2. Ride quality
3. Fuel efficiency
4. Vertical wheel travel of 20in
5. Full steering cramp angle
List the 5 suspension drive settings. - Answers S-Suspension Aided Egress System (SAES)
O-Operational
F-Fording
T-Tie Down
L-Loading
What is the purpose of the suspension lockout braces (slobs)? - Answers If there is a loss in
nitrogen pressure causing the vehicle to drop abruptly, the slobs act as a barrier to keep the
vehicle from injuring anyone under it.
What is the diameter of the wheels? - Answers 20in
What 3 solenoids are engaged when towing? - Answers R1 - ready
T2 - to
T3 - tow
What does CTIS stand for? - Answers Central Tire Inflation System
Describe the overspeed protection feature. - Answers If the vehicle is driving too fast for its
selected configuration, the vehicle will give a warning to the driver and automatically shift to the
next terrain setting after a given amount of time.
How many batteries are in the JLTV? - Answers 4
