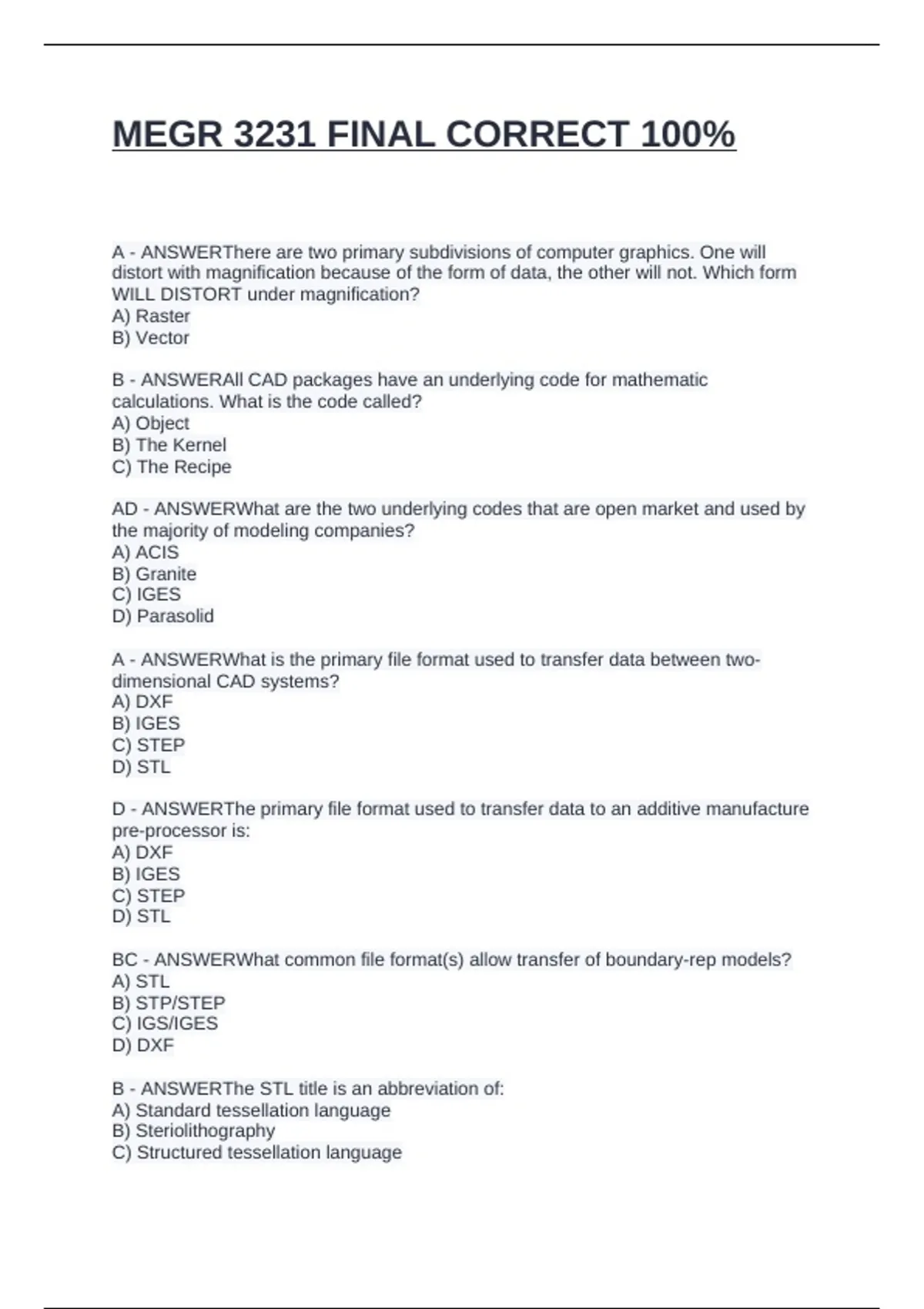

MEGR 3231 FINAL CORRECT 100%

MEGR 3231 FINAL CORRECT 100%

A - ANSWERThere are two primary subdivisions of computer graphics. One will
distort with magnification because of the form of data, the other will not. Which form
WILL DISTORT under magnification?
A) Raster
B) Vector

B - ANSWERAll CAD packages have an underlying code for mathematic
calculations. What is the code called?
A) Object
B) The Kernel
C) The Recipe

AD - ANSWERWhat are the two underlying codes that are open market and used by
the majority of modeling companies?
A) ACIS
B) Granite
C) IGES
D) Parasolid

A - ANSWERWhat is the primary file format used to transfer data between two-
dimensional CAD systems?
A) DXF
B) IGES
C) STEP
D) STL

D - ANSWERThe primary file format used to transfer data to an additive manufacture
pre-processor is:
A) DXF
B) IGES
C) STEP
D) STL

BC - ANSWERWhat common file format(s) allow transfer of boundary-rep models?
A) STL
B) STP/STEP
C) IGS/IGES
D) DXF

B - ANSWERThe STL title is an abbreviation of:
A) Standard tessellation language
B) Steriolithography
C) Structured tessellation language
