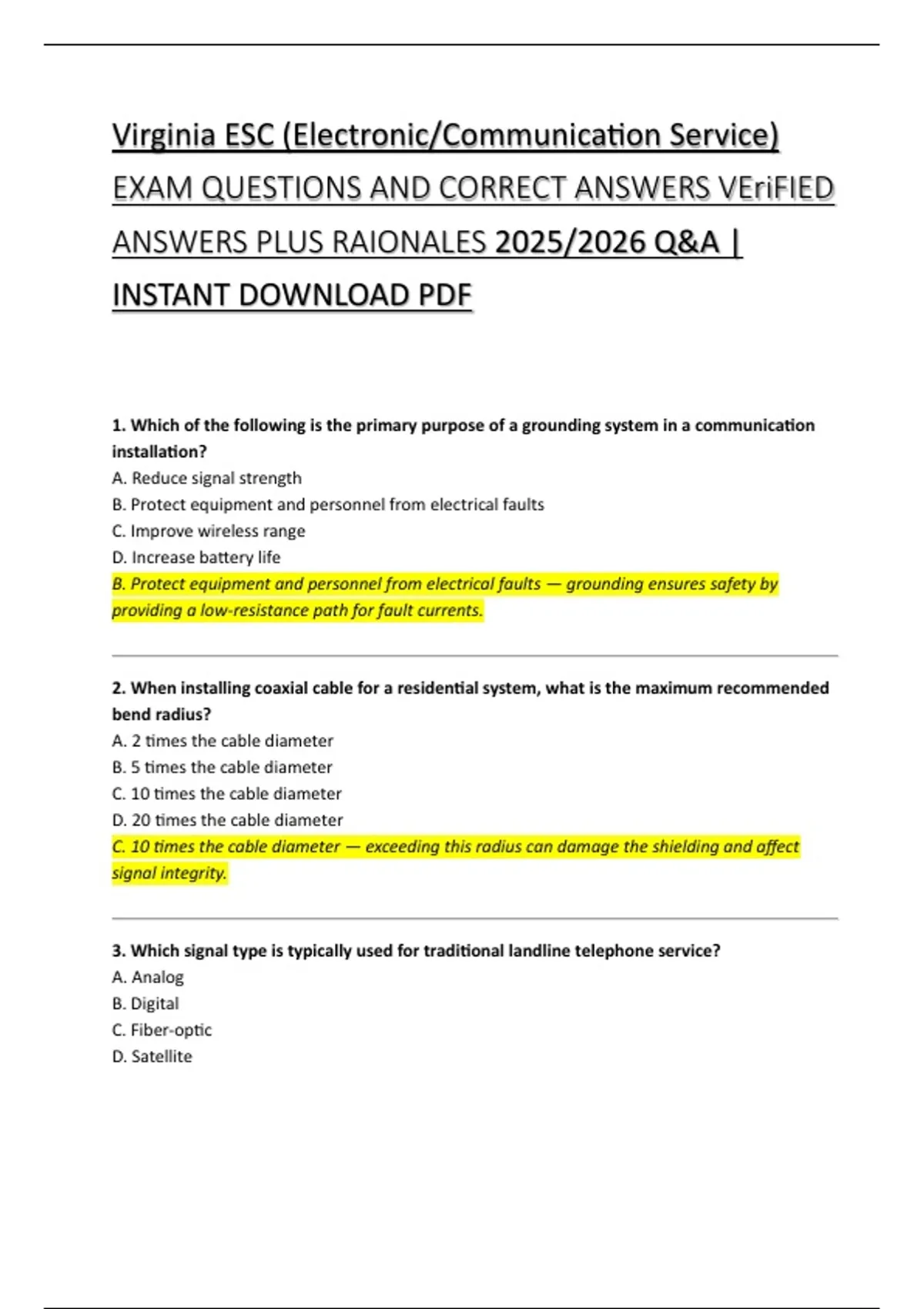

Virginia ESC (Electronic/Communication Service)
EXAM QUESTIONS AND CORRECT ANSWERS VEriFIED
ANSWERS PLUS RAIONALES 2025/2026 Q&A |
INSTANT DOWNLOAD PDF
1. Which of the following is the primary purpose of a grounding system in a communication
installation?
A. Reduce signal strength
B. Protect equipment and personnel from electrical faults
C. Improve wireless range
D. Increase battery life
B. Protect equipment and personnel from electrical faults — grounding ensures safety by
providing a low-resistance path for fault currents.
2. When installing coaxial cable for a residential system, what is the maximum recommended
bend radius?
A. 2 times the cable diameter
B. 5 times the cable diameter
C. 10 times the cable diameter
D. 20 times the cable diameter
C. 10 times the cable diameter — exceeding this radius can damage the shielding and affect
signal integrity.
3. Which signal type is typically used for traditional landline telephone service?
A. Analog
B. Digital
C. Fiber-optic
D. Satellite
,A. Analog — traditional POTS (Plain Old Telephone Service) uses analog signals over copper
pairs.
4. What is the main advantage of using twisted pair cables in communication systems?
A. Lower cost than coax
B. Reduced electromagnetic interference (EMI)
C. Easier to terminate
D. Higher bandwidth than fiber
B. Reduced electromagnetic interference (EMI) — twisting the pairs cancels out noise from
external sources.
5. Which of the following is considered a low-voltage system in ESC work?
A. 120V AC lighting
B. 48V DC security system
C. 240V AC HVAC
D. 208V three-phase motor
B. 48V DC security system — low-voltage systems are generally below 50 volts and include
security, fire alarm, and communication systems.
6. Before performing any electronic installation in a client’s building, what is the most
important safety step?
A. Check for proper lighting
B. Obtain building permits
C. De-energize circuits and verify zero voltage
D. Ensure Wi-Fi signal is strong
C. De-energize circuits and verify zero voltage — this prevents shock or electrocution during
installation.
7. Which tool is used to test signal strength on a coaxial cable?
A. Multimeter
B. Spectrum analyzer
C. Cable toner
D. Time-domain reflectometer (TDR)
D. Time-domain reflectometer (TDR) — TDR can identify cable faults and measure signal loss.
,8. A fire alarm system requires which type of supervision?
A. Manual
B. Central station or local monitoring
C. Wireless only
D. Battery-only operation
B. Central station or local monitoring — to ensure alarms are detected and responded to
promptly.
9. In a structured cabling system, which color is typically used for the data network backbone?
A. Blue
B. Red
C. Orange
D. Green
C. Orange — TIA/EIA standards often use orange for backbone fiber or high-speed cabling.
10. When installing a security camera outdoors, which factor is most important for long-term
performance?
A. Lens type
B. Housing rating (IP/Weatherproof)
C. Cable color
D. Wi-Fi password
B. Housing rating (IP/Weatherproof) — protects the camera from dust and water ingress.
11. Which type of fire suppression system is typically required in server rooms?
A. Water sprinklers
B. Clean agent (FM-200, CO2)
C. Foam
D. Dry chemical
B. Clean agent — prevents damage to electronic equipment while extinguishing fire.
12. Which NEC article covers low-voltage communication circuits?
A. 210
B. 725
, C. 300
D. 800
D. 800 — Article 800 addresses communication circuits, including telephone and data systems.
13. Which of the following best describes “attenuation” in a signal cable?
A. Amplification of a signal
B. Loss of signal strength over distance
C. Interference from external sources
D. Short circuit
B. Loss of signal strength over distance — attenuation increases with cable length and
frequency.
14. For wireless access points, which frequency band provides longer range but lower data
rates?
A. 2.4 GHz
B. 5 GHz
C. 60 GHz
D. 900 MHz
A. 2.4 GHz — lower frequency penetrates walls better but supports slower data speeds than 5
GHz.
15. What is the primary function of a patch panel in structured cabling?
A. Amplify signals
B. Connect incoming cables to network devices in an organized manner
C. Convert analog to digital
D. Protect against lightning
B. Connect incoming cables to network devices — patch panels simplify management and
troubleshooting.
16. Which type of cable connector is standard for Ethernet network connections?
A. RJ11
B. RJ45
C. F-type
