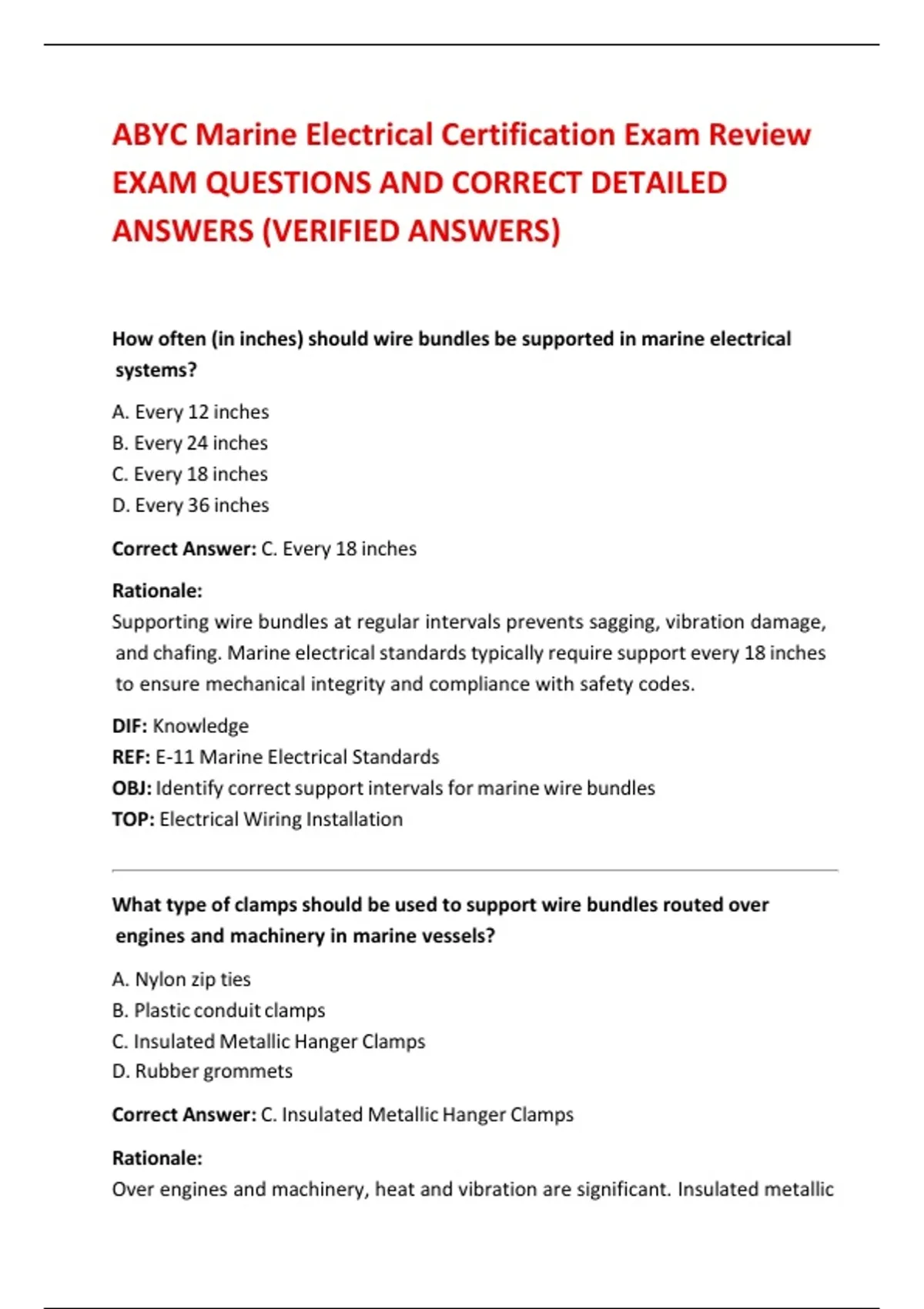

ABYC Marine Electrical Certification Exam Review
EXAM QUESTIONS AND CORRECT DETAILED
ANSWERS (VERIFIED ANSWERS)
How often (in inches) should wire bundles be supported in marine electrical
| | | | | | | | | | |
systems?
|
A. Every 12 inches | |
B. Every 24 inches | |
C. Every 18 inches | |
D. Every 36 inches | |
Correct Answer: C. Every 18 inches
| | | | |
Rationale:
Supporting wire bundles at regular intervals prevents sagging, vibration damage,
| | | | | | | | |
and chafing. Marine electrical standards typically require support every 18 inches
| | | | | | | | | | |
to ensure mechanical integrity and compliance with safety codes.
| | | | | | | | |
DIF: Knowledge
|
REF: E-11 Marine Electrical Standards
| | | |
OBJ: Identify correct support intervals for marine wire bundles
| | | | | | | |
TOP: Electrical Wiring Installation
| | |
What type of clamps should be used to support wire bundles routed over
| | | | | | | | | | | |
engines and machinery in marine vessels?
| | | | | |
A. Nylon zip ties | |
B. Plastic conduit clamps | |
C. Insulated Metallic Hanger Clamps | | |
D. Rubber grommets |
Correct Answer: C. Insulated Metallic Hanger Clamps
| | | | | |
Rationale:
Over engines and machinery, heat and vibration are significant. Insulated metallic
| | | | | | | | | |
,hanger clamps provide durability, insulation, and secure attachment, making them
| | | | | | | | | |
ideal for high-heat and vibration-prone environments.
| | | | | |
,DIF: Application
|
REF: E-11 Table VII
| | |
OBJ: Select proper support hardware for routing wires over mechanical
| | | | | | | | |
equipment
|
TOP: Electrical System Installation
| | |
According to E-11 Table XV, what tensile force must a 10-gauge crimp connector
| | | | | | | | | | | |
withstand for one minute?
| | | |
A. 20 lbs |
B. 30 lbs |
C. 40 lbs |
D. 50 lbs |
Correct Answer: C. 40 lbs
| | | |
Rationale:
To ensure mechanical reliability, crimp connectors must meet specific tensile
| | | | | | | | |
standards. A 10-gauge connector must withstand at least 40 lbs for one minute
| | | | | | | | | | | | |
without failure, verifying a secure and compliant connection.
| | | | | | | |
DIF: Comprehension
|
REF: E-11 Table XV
| | |
OBJ: Identify tensile requirements for crimp connectors
| | | | | |
TOP: Electrical Connections and Safety
| | | |
What is the maximum allowed unsupported cable length for battery cables in a
| | | | | | | | | | | |
marine vessel?
| |
A. 12 inches |
B. 24 inches |
C. 36 inches |
D. 48 inches |
, Correct Answer: C. 36 inches| | | |
Rationale:
Battery cables are heavy and can be subjected to high current loads. Supporting
| | | | | | | | | | | |
them at least every 36 inches helps prevent strain on terminals and reduces
| | | | | | | | | | | | |
the risk of heat buildup, wear, and fire hazards.
| | | | | | | | |
DIF: Knowledge
|
REF: ABYC E-11 Electrical Standard
| | | |
OBJ: Recognize cable support standards for battery cables
| | | | | | |
TOP: Battery Installation and Support
| | | |
True or False: Running AC and DC conductors together is allowed if the AC
| | | | | | | | | | | | |
conductors are sheathed.
| | |
A. True
B. False
Correct Answer: A. True | | |
Rationale:
Marine electrical codes permit AC and DC conductors to share routing space only
| | | | | | | | | | | |
if AC conductors are properly sheathed and shielded to prevent
| | | | | | | | | |
electromagnetic interference (EMI). Proper bundling and identification are also
| | | | | | | | |
required.
|
DIF: Application
|
REF: ABYC E-11 Standard
| | |
OBJ: Interpret code requirements for routing AC and DC wires
| | | | | | | | |
TOP: Electrical Code Compliance
| | |
What is the most common electrical circuit problem in marine applications?
| | | | | | | | | |
A. Short circuits |
B. Too much continuity | |
