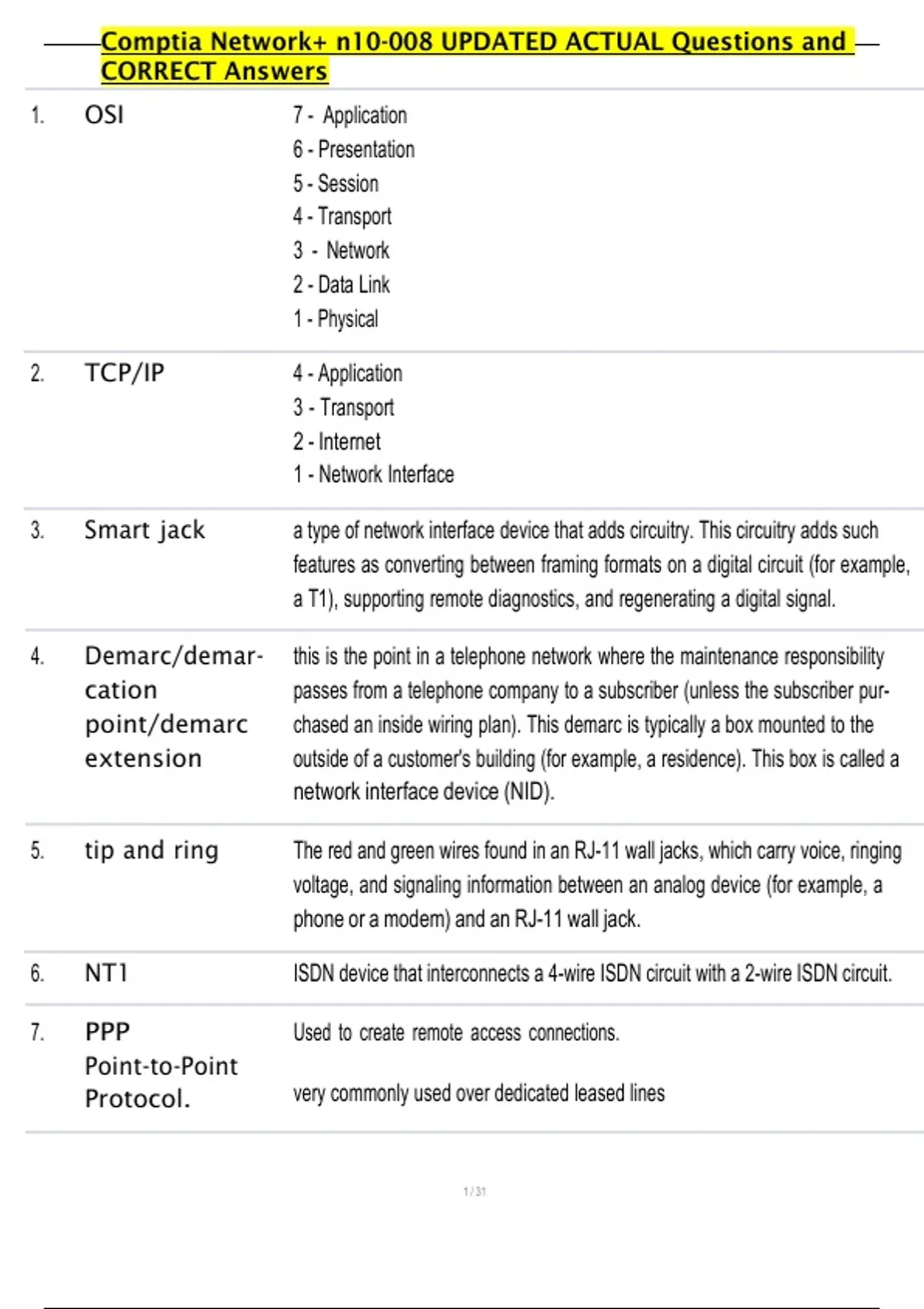

Comptia Network+ n10-008 UPDATED ACTUAL Questions and
CORRECT Answers
1. OSI 7 - Application
6 - Presentation
5 - Session
4 - Transport
3 - Network
2 - Data Link
1 - Physical
2. TCP/IP 4 - Application
3 - Transport
2 - Internet
1 - Network Interface
3. Smart jack a type of network interface device that adds circuitry. This circuitry adds such
features as converting between framing formats on a digital circuit (for example,
a T1), supporting remote diagnostics, and regenerating a digital signal.
4. Demarc/demar- this is the point in a telephone network where the maintenance responsibility
cation passes from a telephone company to a subscriber (unless the subscriber pur-
point/demarc chased an inside wiring plan). This demarc is typically a box mounted to the
extension outside of a customer's building (for example, a residence). This box is called a
network interface device (NID).
5. tip and ring The red and green wires found in an RJ-11 wall jacks, which carry voice, ringing
voltage, and signaling information between an analog device (for example, a
phone or a modem) and an RJ-11 wall jack.
6. NT1 ISDN device that interconnects a 4-wire ISDN circuit with a 2-wire ISDN circuit.
7. PPP Used to create remote access connections.
Point-to-Point
Protocol. very commonly used over dedicated leased lines
, Comptia Network+ n10-008 UPDATED ACTUAL Questions and
CORRECT Answers
8. HDLC (High-level A bit-oriented synchronous data link layer protocol developed by the International
Data Link Con- Organization for Standardization (ISO).
trol)
much less popular because it lacks the robust features of PPP
9. ADSL (asymmet- One of many DSL technologies, is designed to deliver more bandwidth down-
ric digital sub- stream (from the central oflce to the customer site) than upstream.
scriber line)
used to provide high-speed WAN links
10. DSL (digital sub- A method of connecting to the Internet via a phone line. uses copper telephone
scriber line) lines but is able to relay data at much higher speeds than modems and does not
interfere with telephone use.
used to provide high-speed WAN links
11. virtual PBX virtu- Usually a VoIP telephony solution hosted by a service provider, which intercon-
al private branch nects with a company's existing telephone system.
exchange
12. virtual switch allows you to have Layer 2 control (for example, VLAN separation and filtering) for
virtual servers co-resident on a single physical server
13. hub-and-spoke enables you to minimize costs by not directly connecting any two locations
a network design where we have a central device that is connected to multiple
other devices
14. mGRE is one of the key technologies in the Dynamic Multipoint VPN (DMVPN) solution.
makes the tunnels that are formed dynamically between spokes and the hubs
(and spokes to spokes)
15. SAN (storage You can construct a high-speed, highly reliable network for the express purpose
area network) of transmitting stored data.
,16. Metropolitan More widespread than a CAN and less widespread than a WAN, a interconnects
Area Network locations scattered throughout a the area
(MAN)
17. SD-WAN - provides a simple policy and profile approach to managing the WAN. It also gives
software-de- you tools to have new levels of visibility into and control over the use of the varied
fined wide area WAN circuits in the typical enterprise today
network
18. T1 and T3 lines leased line
19. Frame Relay packet-switch WAN
20. ISDN (Integrated circuit switched
Services Digital
Network)
21. Asynchronous is a Layer 2 WAN technology that uses fixed-length cells as its protocol data unit,
Transfer Mode as opposed to the variable frames used by Frame-Relay
(ATM)
48 Byte cells
22. T1 1.544 Mbps
23. E1 2.048 Mbps
24. T3 44.7 Mbps
25. E3 34.4 Mbps
26. 10GBASE-SW MMF - 10Gbps, 300 m
27. 10GBASE-LW SMF - 10Gbps, 10 km
28. 10GBASE-LR SMF - 10Gbps, 10-25 km
, 29. 10GBASE-ER and SMF - 10Gbps, 40 km
10GBASE-EW
30. 100GBASE-ER4 SMF - 100Gbps, 40 km
31. DWDM (Dense uses as many as 32 light wavelengths on a single fiber, where each wavelength
Wavelength Di- can support as many as 160 simultaneous transmissions using more than eight
vision Multiplex- active wavelengths per fiber
ing)
32. CWDM (coarse uses fewer than eight active wavelengths per fiber
wavelength divi-
sion multiplex-
ing)
33. WDM (wave- multiplexes a number of optical carrier signals onto a single optical fiber by using
length division different wavelengths. Using this technique enables bidirectional communica-
multiplexing) tions over one strand of fiber and increases the overall capacity.
34. QSFP+ (quad is a smaller variant of a regular gigabit interface converter (GBIC) and is the small
small form-factor form-factor pluggable (SFP), which is sometimes called a mini-GBIC.
pluggable plus)
35. fiber distribution The fiber equivalent of a patch panel; used to terminate horizontal fiber cabling.
panel
36. GBIC (Gigabit In- A transceiver used to convert electrical signals into optical signals and vice versa.
terface Convert-
er)
37. punchdown How Copper Wiring is terminated. Used for telecommunications and data cabling.
block
