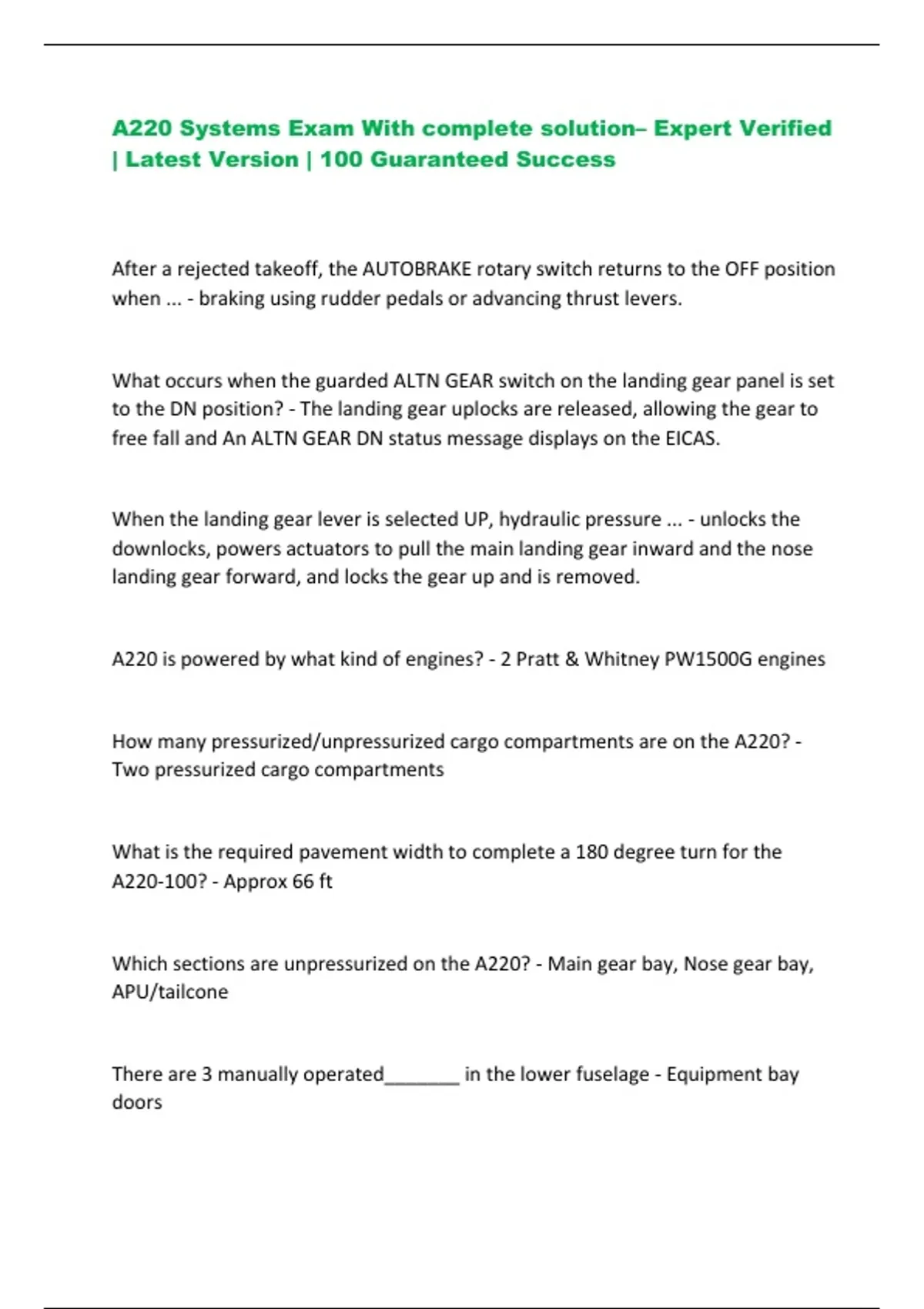

A220 Systems Exam With complete solution– Expert Verified
| Latest Version | 100 Guaranteed Success
After a rejected takeoff, the AUTOBRAKE rotary switch returns to the OFF position
when ... - braking using rudder pedals or advancing thrust levers.
What occurs when the guarded ALTN GEAR switch on the landing gear panel is set
to the DN position? - The landing gear uplocks are released, allowing the gear to
free fall and An ALTN GEAR DN status message displays on the EICAS.
When the landing gear lever is selected UP, hydraulic pressure ... - unlocks the
downlocks, powers actuators to pull the main landing gear inward and the nose
landing gear forward, and locks the gear up and is removed.
A220 is powered by what kind of engines? - 2 Pratt & Whitney PW1500G engines
How many pressurized/unpressurized cargo compartments are on the A220? -
Two pressurized cargo compartments
What is the required pavement width to complete a 180 degree turn for the
A220-100? - Approx 66 ft
Which sections are unpressurized on the A220? - Main gear bay, Nose gear bay,
APU/tailcone
There are 3 manually operated_______ in the lower fuselage - Equipment bay
doors
,Where does the slide status of the pax and service doors display? - Cabin
management system (CMS), EICAS, and DOOR synoptic page
T or F: A small mechanical indicator, located on the outside of each cargo door,
provides a visual inspection of the status of the door. - True
T or F: The status of the equipment bay doors displays on the DOOR synoptic page
and on the EICAS - True
When emergency access to the flight deck is requested, what audio and visual
signals are triggered? - -Tone alert sounds for 30 to 60 seconds
-CKPT DOOR EMER ACCESS warning message displays on the EICAS page
-EMER ACCESS switch light DENY on the COCKPIT DOOR panel illuminates red
T or F: The CKPT DOOR EMER ACCESS warning message on the EICAS indicates an
emergency request from the cabin. - True
T or F: The cabin entrance light extinguishes after 20 min if the aircraft remains
unpowered - True
The controls for the landing and taxi lights are located on which panel? - LND LTS
control panel
T or F: Nose landing and taxi lights will not illuminate unless the nose gear is down
and locked - True
, T or F: The function of the flight deck lights can be verified from the AVIO tab on
the AVIONICS synoptic page - True
What controls interior and exterior emergency lighting? - The EMER LTS rotary
switch on the flight deck, and guarded EMER LIGHTS switch light on the forward
flight attendant panel
True or False: The Electronic Checklist (ECL) displays all normal and non-normal
checklists and procedures that are available in Electronic Flight Bag (EFB) or paper
format. - True
Which page of the electronic checklist displays normal checklists for all phases of
flight? - Normal Page
True or False: The electronic checklist (ECL) priority pointer is considered
mandatory, and only the checklist adjacent to the priority pointer can be started. -
False
When a limitation checklist item has been selected, the limitation displays where
on the SUMMARY page? - In the history subsection below the checklist from
which it was generated and the page footer displays LIMITATIONS.
True or False: When the ECL is not available, all content is removed, and
CHECKLIST NOT AVAILABLE displays on the page. - True
Which system records flight parameters? - Flight data recorder
| Latest Version | 100 Guaranteed Success
After a rejected takeoff, the AUTOBRAKE rotary switch returns to the OFF position
when ... - braking using rudder pedals or advancing thrust levers.
What occurs when the guarded ALTN GEAR switch on the landing gear panel is set
to the DN position? - The landing gear uplocks are released, allowing the gear to
free fall and An ALTN GEAR DN status message displays on the EICAS.
When the landing gear lever is selected UP, hydraulic pressure ... - unlocks the
downlocks, powers actuators to pull the main landing gear inward and the nose
landing gear forward, and locks the gear up and is removed.
A220 is powered by what kind of engines? - 2 Pratt & Whitney PW1500G engines
How many pressurized/unpressurized cargo compartments are on the A220? -
Two pressurized cargo compartments
What is the required pavement width to complete a 180 degree turn for the
A220-100? - Approx 66 ft
Which sections are unpressurized on the A220? - Main gear bay, Nose gear bay,
APU/tailcone
There are 3 manually operated_______ in the lower fuselage - Equipment bay
doors
,Where does the slide status of the pax and service doors display? - Cabin
management system (CMS), EICAS, and DOOR synoptic page
T or F: A small mechanical indicator, located on the outside of each cargo door,
provides a visual inspection of the status of the door. - True
T or F: The status of the equipment bay doors displays on the DOOR synoptic page
and on the EICAS - True
When emergency access to the flight deck is requested, what audio and visual
signals are triggered? - -Tone alert sounds for 30 to 60 seconds
-CKPT DOOR EMER ACCESS warning message displays on the EICAS page
-EMER ACCESS switch light DENY on the COCKPIT DOOR panel illuminates red
T or F: The CKPT DOOR EMER ACCESS warning message on the EICAS indicates an
emergency request from the cabin. - True
T or F: The cabin entrance light extinguishes after 20 min if the aircraft remains
unpowered - True
The controls for the landing and taxi lights are located on which panel? - LND LTS
control panel
T or F: Nose landing and taxi lights will not illuminate unless the nose gear is down
and locked - True
, T or F: The function of the flight deck lights can be verified from the AVIO tab on
the AVIONICS synoptic page - True
What controls interior and exterior emergency lighting? - The EMER LTS rotary
switch on the flight deck, and guarded EMER LIGHTS switch light on the forward
flight attendant panel
True or False: The Electronic Checklist (ECL) displays all normal and non-normal
checklists and procedures that are available in Electronic Flight Bag (EFB) or paper
format. - True
Which page of the electronic checklist displays normal checklists for all phases of
flight? - Normal Page
True or False: The electronic checklist (ECL) priority pointer is considered
mandatory, and only the checklist adjacent to the priority pointer can be started. -
False
When a limitation checklist item has been selected, the limitation displays where
on the SUMMARY page? - In the history subsection below the checklist from
which it was generated and the page footer displays LIMITATIONS.
True or False: When the ECL is not available, all content is removed, and
CHECKLIST NOT AVAILABLE displays on the page. - True
Which system records flight parameters? - Flight data recorder
