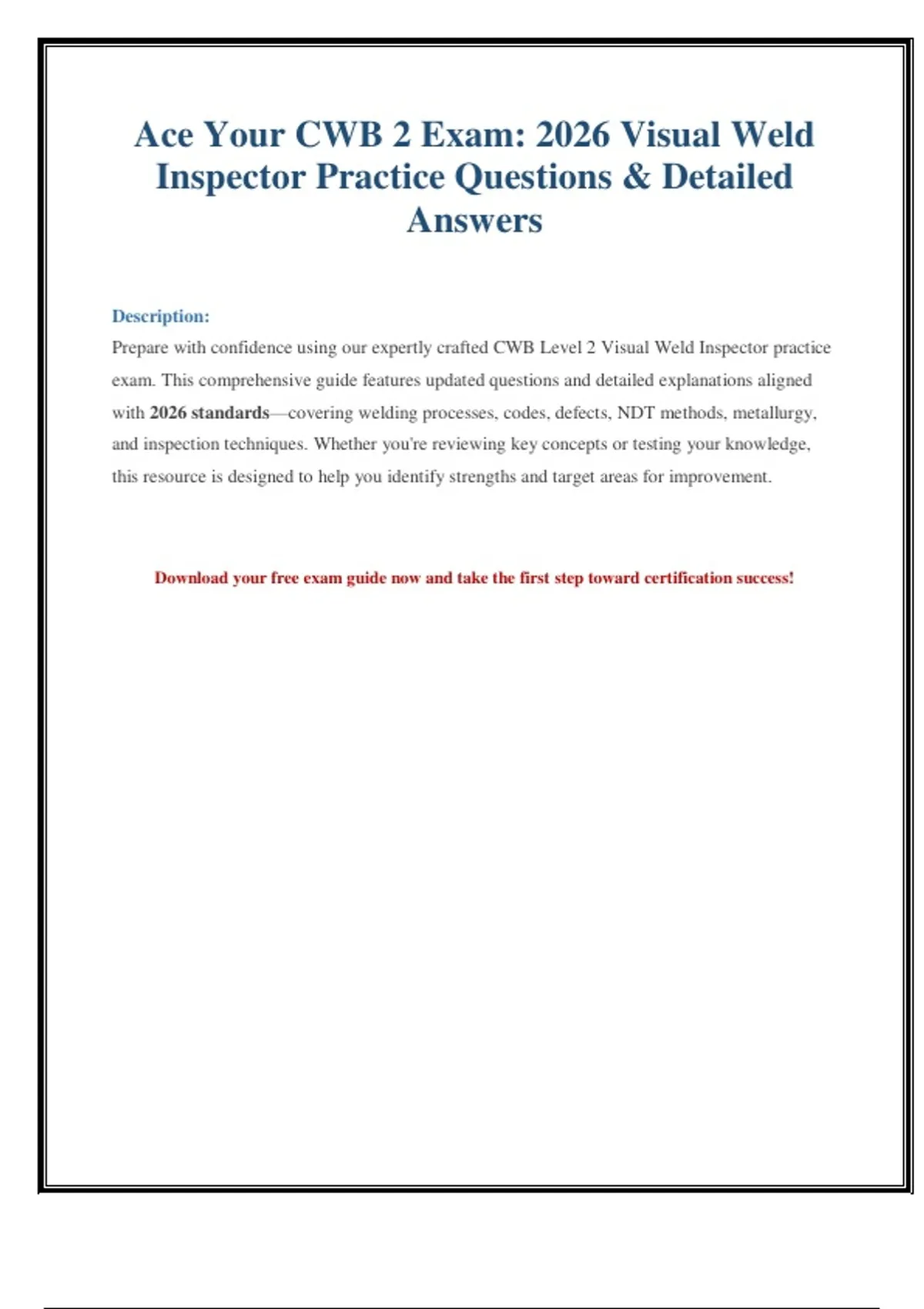

Ace Your CWB 2 Exam: 2026 Visual Weld
Inspector Practice Questions & Detailed
Answers
Description:
Prepare with confidence using our expertly crafted CWB Level 2 Visual Weld Inspector practice
exam. This comprehensive guide features updated questions and detailed explanations aligned
with 2026 standards—covering welding processes, codes, defects, NDT methods, metallurgy,
and inspection techniques. Whether you're reviewing key concepts or testing your knowledge,
this resource is designed to help you identify strengths and target areas for improvement.
Download your free exam guide now and take the first step toward certification success!
, CWB 2 Visual Weld Inspector Exam: Questions & Answers Guide
2026
1. A consumable electrode is:
a) An electrode that does not melt during welding
b) An electrode which melts and provides metal to fill the joint
c) An electrode used only for grounding
d) A non-conductive electrode
Answer: b) An electrode which melts and provides metal to fill the joint
Explanation: By definition, a consumable electrode is designed to be melted by the heat of the
arc, becoming part of the weld metal filler.
2. The weld heat-affected zone (HAZ) is:
Answer: The portion of the base metal adjacent to the weld metal whose mechanical properties
and microstructure have been altered by the heat of welding.
Explanation: The HAZ is not melted but is heated to a temperature high enough to change its
grain structure and properties, such as hardness and toughness.
3. When an arc is formed between two electrodes, electricity flows from:
a) Positive anode to negative cathode
b) Negative cathode to positive anode
c) The power source to the ground clamp
d) The workpiece to the electrode
Answer: b) Negative cathode to positive anode
Explanation: In an electrical circuit, electrons flow from the negative terminal (cathode) to the
positive terminal (anode).
4. The magnetic pinch force helps detach molten metal droplets from the electrode tip. This
force:
Answer: increases as the square of the current, causing smaller and smaller droplets to be
detached.
, Explanation: A higher current creates a stronger electromagnetic field that constricts (pinches)
the molten metal at the electrode tip, promoting the detachment of finer droplets.
5. A welding power source must transform electrical current from:
Answer: High voltage, low amperage to low voltage, high amperage.
Explanation: Utility power is high voltage and low current. Arc welding requires high current at
a lower, safer voltage to generate the necessary heat.
6. The major advantage of the Electron Beam Welding (EBW) process is:
Answer: The ability to produce full penetration, narrow welds on very thick material in a single
pass.
Explanation: EBW's highly concentrated heat source allows for exceptional depth-to-width
ratios, making it ideal for deep, single-pass welds.
7. The progression of welding with the Electroslag welding (ESW) process is:
a) Vertical down
b) Horizontal
c) Overhead
d) Vertical up
Answer: d) Vertical up
Explanation: ESW is a single-pass process used for welding very thick sections in a vertical or
near-vertical position, with welding progressing upward.
8. Explosion welding is:
Answer: a solid-state process where coalescence is produced through the high-speed impact of
two or more materials by a controlled detonation.
Explanation: No melting occurs. The surfaces are forced together at such a high velocity that
they atomically bond upon impact.
9. A typical application for thermite welding is:
Answer: The joining of railway rails.
