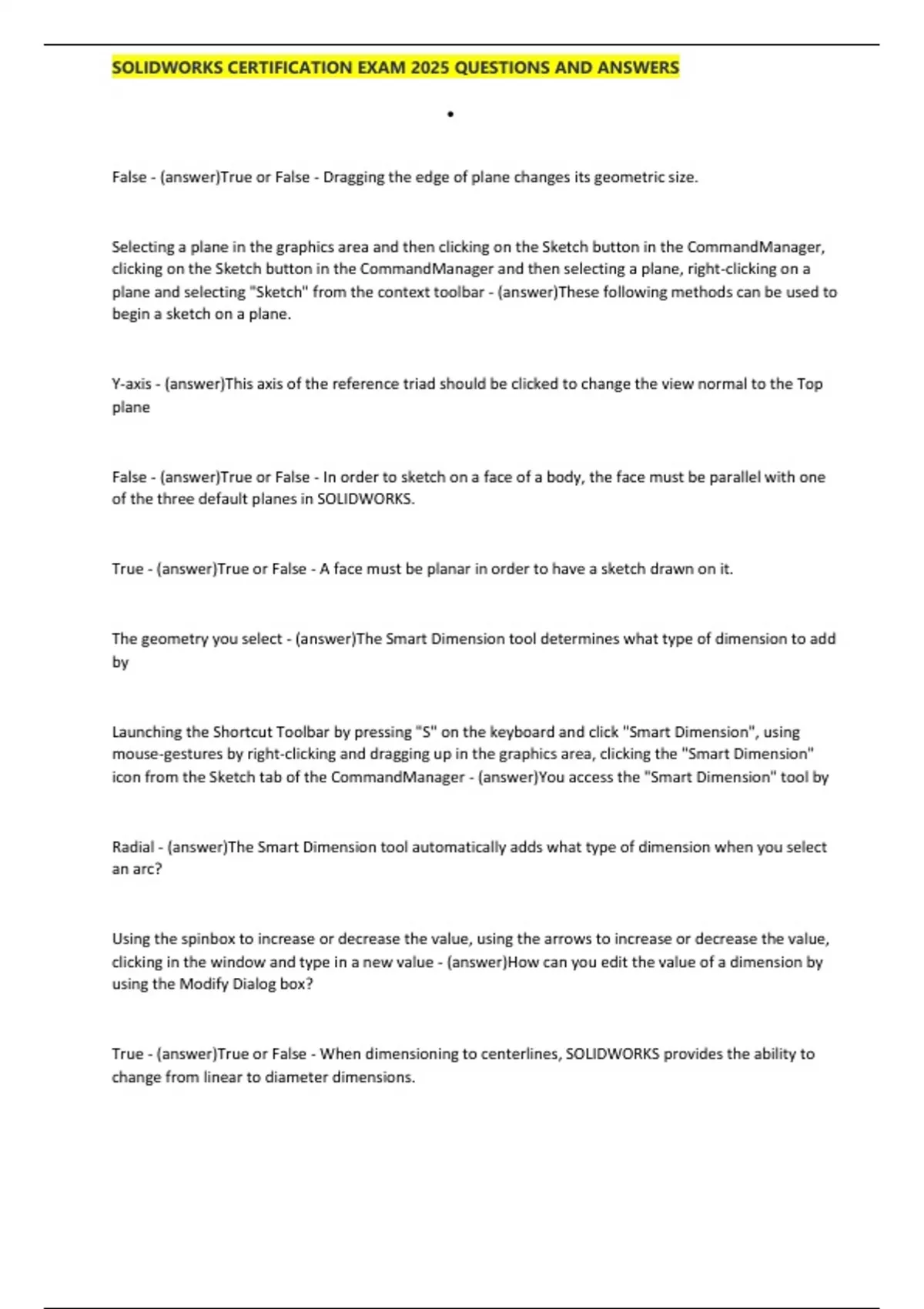

SOLIDWORKS CERTIFICATION EXAM 2025 QUESTIONS AND ANSWERS
False - (answer)True or False - Dragging the edge of plane changes its geometric size.
Selecting a plane in the graphics area and then clicking on the Sketch button in the CommandManager,
clicking on the Sketch button in the CommandManager and then selecting a plane, right-clicking on a
plane and selecting "Sketch" from the context toolbar - (answer)These following methods can be used to
begin a sketch on a plane.
Y-axis - (answer)This axis of the reference triad should be clicked to change the view normal to the Top
plane
False - (answer)True or False - In order to sketch on a face of a body, the face must be parallel with one
of the three default planes in SOLIDWORKS.
True - (answer)True or False - A face must be planar in order to have a sketch drawn on it.
The geometry you select - (answer)The Smart Dimension tool determines what type of dimension to add
by
Launching the Shortcut Toolbar by pressing "S" on the keyboard and click "Smart Dimension", using
mouse-gestures by right-clicking and dragging up in the graphics area, clicking the "Smart Dimension"
icon from the Sketch tab of the CommandManager - (answer)You access the "Smart Dimension" tool by
Radial - (answer)The Smart Dimension tool automatically adds what type of dimension when you select
an arc?
Using the spinbox to increase or decrease the value, using the arrows to increase or decrease the value,
clicking in the window and type in a new value - (answer)How can you edit the value of a dimension by
using the Modify Dialog box?
True - (answer)True or False - When dimensioning to centerlines, SOLIDWORKS provides the ability to
change from linear to diameter dimensions.
, SOLIDWORKS CERTIFICATION EXAM 2025 QUESTIONS AND ANSWERS
snap to axes - (answer)Which is not an available option for a line?
Angle - (answer)Which line type allows dimensions to be added with the creation of the line?
Selecting a line, clicking "Centerline" button in the CommandManager - (answer)What method will not
convert a line to a construction line?
True - (answer)True or False - When a corner rectangle is sketched, two of the sides are automatically
set to horizontal and the other two are automatically set to vertical.
Center Rectangle - (answer)What type of rectangle tool adds centerlines when the sketch entity is
drawn?
Parallelogram - (answer)What rectangle tool requires more than two points to be selected in order to
draw the sketch entity?
True - (answer)True or False - To create a "3 Point Center Rectangle", you first click at the center point,
then click at the midpoint of one edge of the rectangle, and then click to set the height of the rectangle.
False - (answer)True or False - Two identical rectangles can be created by sketching one rectangle on top
of another and then dragging it to a new position.
Perimeter Circle - (answer)What circle tool requires clicking three points to draw the circle?
False - (answer)True or False - The center point of a Perimeter circle cannot be selected since it is
interpolated using the three selected points on the perimeter.
Tangent Arc - (answer)What arc tool only requires two points to be created?
