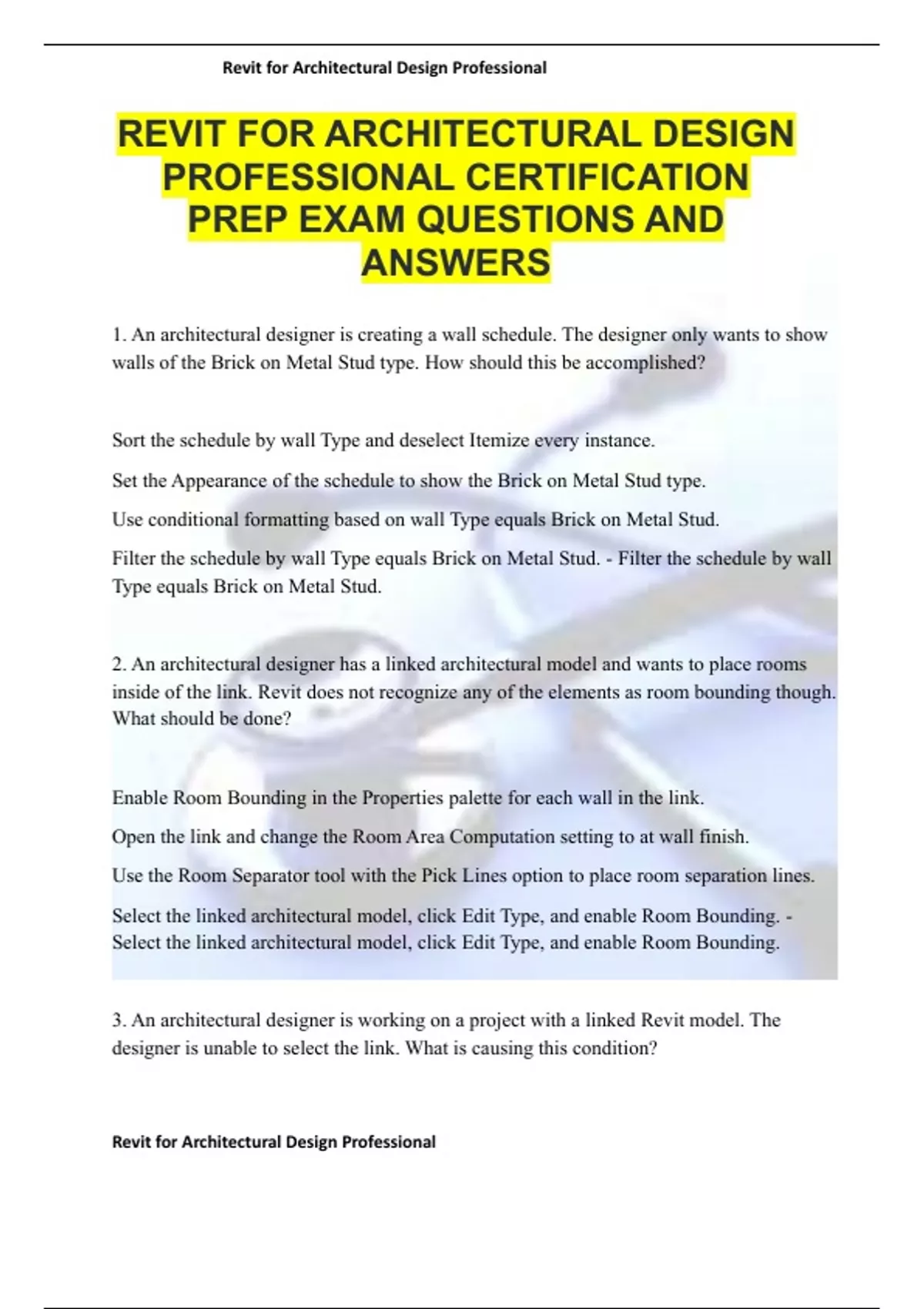

Revit for Architectural Design Professional
REVIT FOR ARCHITECTURAL DESIGN
PROFESSIONAL CERTIFICATION
PREP EXAM QUESTIONS AND
ANSWERS
1. An architectural designer is creating a wall schedule. The designer only wants to show
walls of the Brick on Metal Stud type. How should this be accomplished?
Sort the schedule by wall Type and deselect Itemize every instance.
Set the Appearance of the schedule to show the Brick on Metal Stud type.
Use conditional formatting based on wall Type equals Brick on Metal Stud.
Filter the schedule by wall Type equals Brick on Metal Stud. - Filter the schedule by wall
Type equals Brick on Metal Stud.
2. An architectural designer has a linked architectural model and wants to place rooms
inside of the link. Revit does not recognize any of the elements as room bounding though.
What should be done?
Enable Room Bounding in the Properties palette for each wall in the link.
Open the link and change the Room Area Computation setting to at wall finish.
Use the Room Separator tool with the Pick Lines option to place room separation lines.
Select the linked architectural model, click Edit Type, and enable Room Bounding. -
Select the linked architectural model, click Edit Type, and enable Room Bounding.
3. An architectural designer is working on a project with a linked Revit model. The
designer is unable to select the link. What is causing this condition?
Revit for Architectural Design Professional
, Revit for Architectural Design Professional
The Select Links option is disabled.
A view template is assigned to the view.
The model is in a closed workset.
Another user is borrowing the link. - The Select Links option is disabled.
Where is the leader arrowhead controlled for a text note?
Additional Settings dialog
Arrowhead Type Properties
Text Type Properties
Text Instance Properties - Text Type Properties
An architectural designer needs to create the condition shown in the exhibit. The bottom
extension of the outer brick layer needs to be adjusted independently of the other layers
in the wall. How can this be accomplished?
Add a void extrusion to the wall and then use the Cut Geometry tool.
On the Modify tab, activate the Split Element tool, and split the wall at the brick layer.
In the Edit Assembly dialog, use the Modify tool and unlock the brick layer.
Edit the wall profile and adjust the sketch lines to account for the proper brick offset. - In
the Edit Assembly dialog, use the Modify tool and unlock the brick layer
An architectural designer needs to create a family that can be hosted to a wall or a ceiling.
Which template should be used to create the family?
Generic Model.rft
Generic Model face based.rft
Revit for Architectural Design Professional
, Revit for Architectural Design Professional
Generic Model ceiling based.rft
Generic Model wall based.rft - Generic Model face based.rft
An architectural designer is working on a door family. The material for each geometric
form needs to be controlled in the project. How can this be accomplished?
Associate each form's Material parameter to a family parameter that is a Material type of
parameter.
Associate each form's Visible parameter to a family parameter that is a Material type of
parameter.
Create a family parameter that has Material in the name and associate the family to it.
Create a family parameter that is a Material type of parameter and associate the family to
it. - Associate each form's Material parameter to a family parameter that is a Material type
of parameter.
An architectural designer needs to create a detail using detail components. The detail
should be independent of the building model. What type of view should be used?
3D View
Callout View
Drafting View
Section View - Drafting View
An architectural designer has created a drafting view with a detail. The designer wants to
use the detail in another project. Which tool should be used?
Insert Views from File
Link Revit
