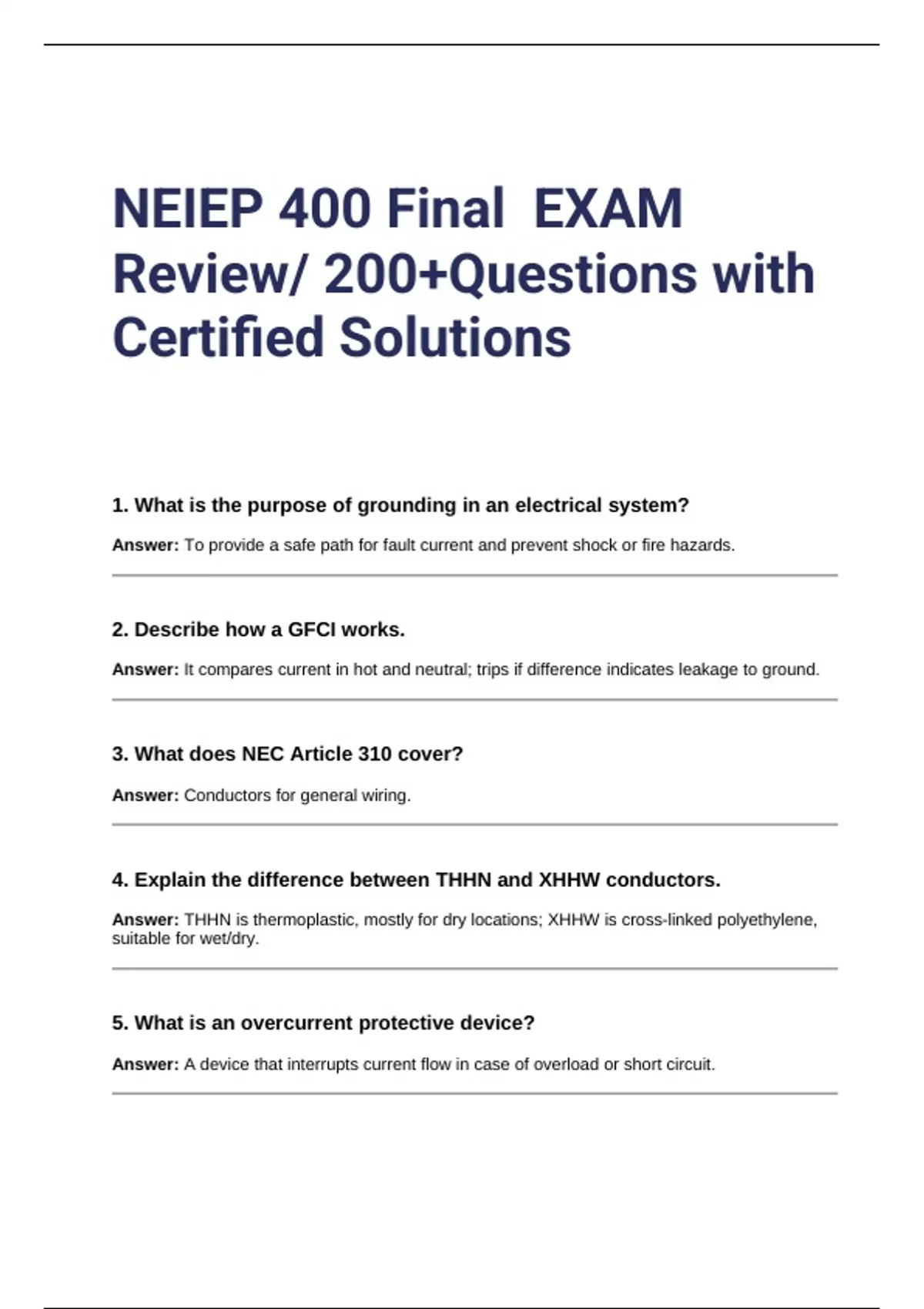

NEIEP 400 Final EXAM
Review/ 200+Questions with
Certified Solutions
1. What is the purpose of grounding in an electrical system?
Answer: To provide a safe path for fault current and prevent shock or fire hazards.
2. Describe how a GFCI works.
Answer: It compares current in hot and neutral; trips if difference indicates leakage to ground.
3. What does NEC Article 310 cover?
Answer: Conductors for general wiring.
4. Explain the difference between THHN and XHHW conductors.
Answer: THHN is thermoplastic, mostly for dry locations; XHHW is cross-linked polyethylene,
suitable for wet/dry.
5. What is an overcurrent protective device?
Answer: A device that interrupts current flow in case of overload or short circuit.
,6. What is the maximum number of conductors allowed in a conduit
according to NEC?
Answer: Depends on conduit size and conductor fill percentage; typically not more than 40% fill
for more than 2 conductors.
7. What color is the equipment grounding conductor typically?
Answer: Green or bare copper.
8. What is the meaning of “continuous load” in the NEC?
Answer: A load expected to operate for 3 hours or more.
9. Why is conductor derating necessary?
Answer: To prevent overheating when conductors are bundled or in high ambient temperature.
10. Calculation: Calculate the full load current of a 3-phase, 480V, 30kW
motor.
Solution:
I=P3×V×PF≈30,0003×480×0.9=40.1AI = \frac{P}{\sqrt{3} \times V \times \
text{PF}} \approx \frac{30,000}{\sqrt{3} \times 480 \times 0.9} = 40.1AI=3
×V×PFP≈3×480×0.930,000=40.1A
11. What is the purpose of a contactor?
Answer: Electrically controlled switch for motor or load control.
12. How does a circuit breaker differ from a fuse?
Answer: Circuit breaker can be reset; fuse melts once and must be replaced.
, 13. What is the NEC requirement for receptacle spacing in a dwelling?
Answer: No point along the floor line should be more than 6 feet from a receptacle.
14. What type of conductor insulation is rated for wet locations?
Answer: XHHW, USE, or similar types.
15. Calculation: Size a feeder for a continuous load of 60A using NEC 125%
rule.
Solution:
60A×1.25=75A60A \times 1.25 = 75A60A×1.25=75A
Feeder must be sized for at least 75A.
16. Define a “derived system.”
Answer: A system with no direct electrical connection to supply neutral, such as a transformer
secondary.
17. What is the minimum size copper grounding electrode conductor for a
200A service?
Answer: #4 AWG copper (per NEC Table 250.66).
18. What are conduit bodies used for?
Answer: Provide access for pulling wires, making splices, or changing direction in conduit runs.
19. What does the term “ampacity” mean?
Answer: Maximum current a conductor can safely carry.
