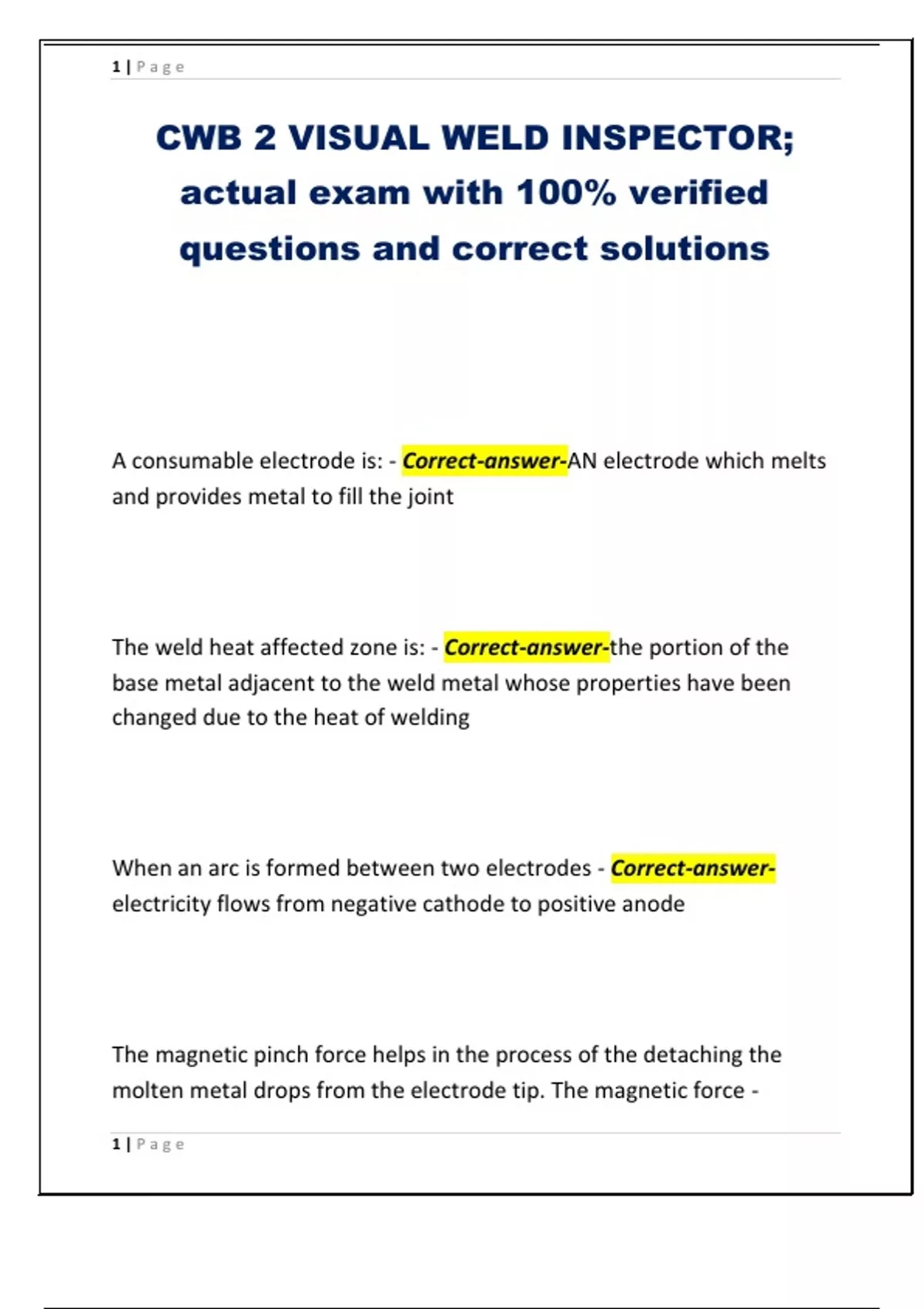

CWB 2 VISUAL WELD INSPECTOR;
actual exam with 100% verified
questions and correct solutions
A consumable electrode is: - Correct-answer-AN electrode which melts
and provides metal to fill the joint
The weld heat affected zone is: - Correct-answer-the portion of the
base metal adjacent to the weld metal whose properties have been
changed due to the heat of welding
When an arc is formed between two electrodes - Correct-answer-
electricity flows from negative cathode to positive anode
The magnetic pinch force helps in the process of the detaching the
molten metal drops from the electrode tip. The magnetic force -
1|Page
,2|Page
Correct-answer-increases as the square of the current causing smaller
and smaller droplets to be detached
The electric current for welding must be transformed from - Correct-
answer-High voltage, low amperage to low voltage, high amperage
The major advantage of electron beam welding process is - Correct-
answer-full penetration welds on thick material in one pass
The progress of welding with Electroslag welding process is - Correct-
answer-Vertical up
Explosion welding - Correct-answer-is solid state process in which
coalescence is produced through high speed impacting of two or more
materials by controlled detonation
2|Page
,3|Page
A typical application for thermite welding is - Correct-answer-joining of
rails
Welding without filler metal with GTAW process is referred to as -
Correct-answer-autogenous welding
A typical weld flaw associated with GTAW process is - Correct-answer-
porosity
SMAW power sources typically have a volt-ampere curve that is -
Correct-answer-drooping
Once a box of E49XX low hydrogen electrodes has been opened the
electrodes may remain at ambient temperature for up to a maximum of
- Correct-answer-4 hours
3|Page
, 4|Page
Shielded Metal ARC Welding (SMAW) process - Correct-answer-
establishes an arc between the end of a covered electrode and the
work piece.
The spray mode of metal transfer is achieved with - Correct-answer-
high amperage, high voltage and argon-rich shielding gas
digital wire feeders - Correct-answer-have feedback systems to
maintain the preset wire feed speed
wire designated by CSA standard W48 as an E491T-9MJ-H8 - Correct-
answer-Results in weld deposit with a maximum of 8 ml diffusible
hydrogen per 100 g of weld metal
Self shield flux cored wires are - Correct-answer-better able to tolerate
air currents
4|Page
