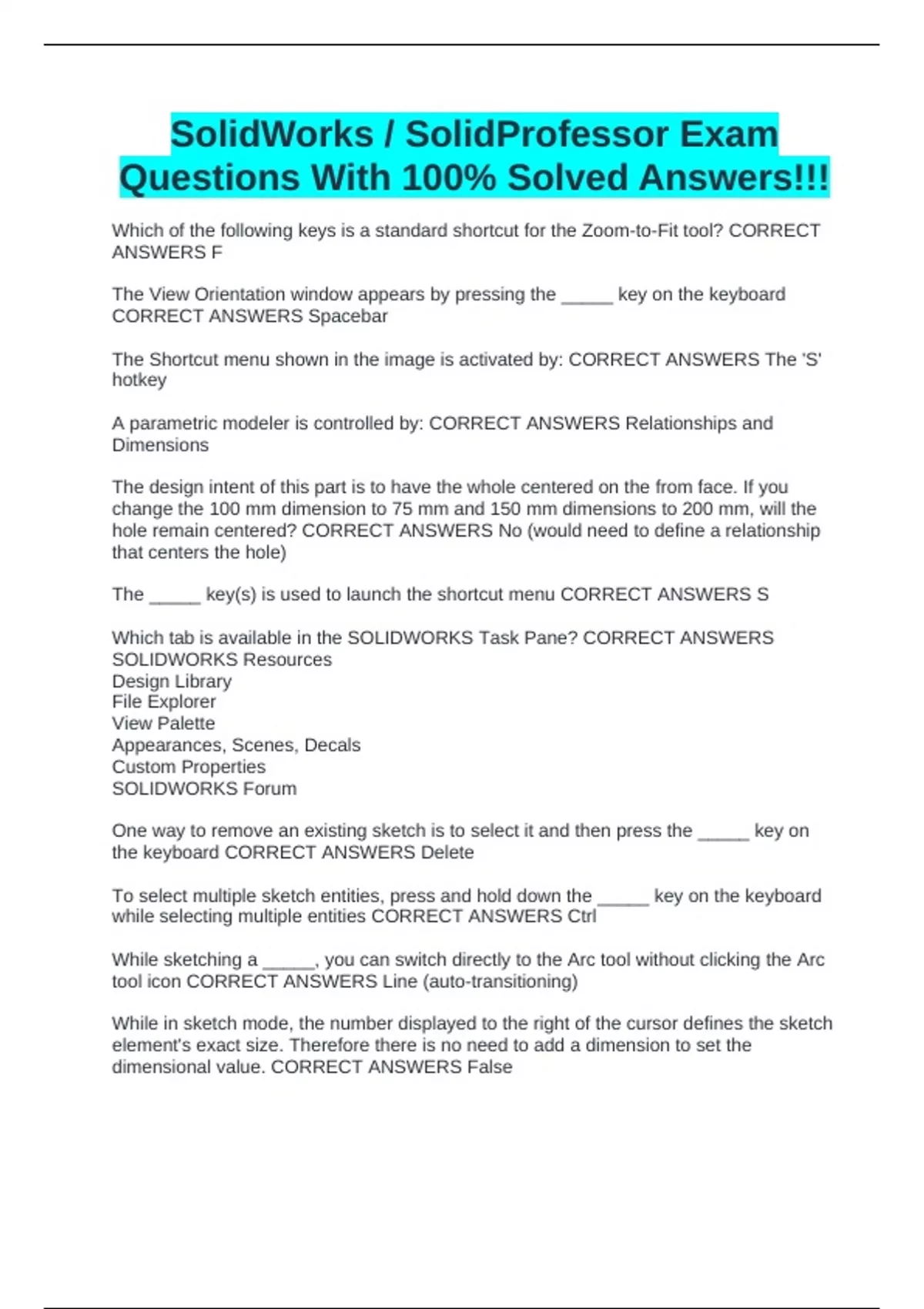

SolidWorks / SolidProfessor Exam
Questions With 100% Solved Answers!!!
Which of the following keys is a standard shortcut for the Zoom-to-Fit tool? CORRECT
ANSWERS F
The View Orientation window appears by pressing the _____ key on the keyboard
CORRECT ANSWERS Spacebar
The Shortcut menu shown in the image is activated by: CORRECT ANSWERS The 'S'
hotkey
A parametric modeler is controlled by: CORRECT ANSWERS Relationships and
Dimensions
The design intent of this part is to have the whole centered on the from face. If you
change the 100 mm dimension to 75 mm and 150 mm dimensions to 200 mm, will the
hole remain centered? CORRECT ANSWERS No (would need to define a relationship
that centers the hole)
The _____ key(s) is used to launch the shortcut menu CORRECT ANSWERS S
Which tab is available in the SOLIDWORKS Task Pane? CORRECT ANSWERS
SOLIDWORKS Resources
Design Library
File Explorer
View Palette
Appearances, Scenes, Decals
Custom Properties
SOLIDWORKS Forum
One way to remove an existing sketch is to select it and then press the _____ key on
the keyboard CORRECT ANSWERS Delete
To select multiple sketch entities, press and hold down the _____ key on the keyboard
while selecting multiple entities CORRECT ANSWERS Ctrl
While sketching a _____, you can switch directly to the Arc tool without clicking the Arc
tool icon CORRECT ANSWERS Line (auto-transitioning)
While in sketch mode, the number displayed to the right of the cursor defines the sketch
element's exact size. Therefore there is no need to add a dimension to set the
dimensional value. CORRECT ANSWERS False
, Which of the following is NOT a type of arc in SolidWorks? CORRECT ANSWERS
Equal Radius Arc
(3 Point Arc, Center Point Arc, and Tangent Arc are)
What type of arc can be transitioned to directly from sketching a line? CORRECT
ANSWERS Tangent Arc
The units of a part can be changed under Options in the System Options tab?
CORRECT ANSWERS False (Under Document Properties in Options)
Which icon allows you to exit a sketch while saving its changes? CORRECT ANSWERS
(The blue arrow)
When box-selecting multiple items, to include only items completely enclosed within the
box, drag the selection box from left to right CORRECT ANSWERS True (right to left for
selecting anything that is touched at all)
You can fully define the shape and size of a sketch using only dimensions and
geometric relations. CORRECT ANSWERS True
In order to create two-dimensional geometry, such as lines, arcs, and rectangles, what
mode should SolidWorks be in? CORRECT ANSWERS Editing Sketch
While in sketch mode, the number displayed to the right of the cursor defines the sketch
element's exact size. Therefore there is no need to add a dimension to set the
dimensional value. CORRECT ANSWERS False
When sketched geometry is displayed in blue, the geometry is: CORRECT ANSWERS
Under-Defined
When sketched geometry is displayed in black, the geometry is: CORRECT ANSWERS
Fully Defined
The Extruded Boss feature can be used to remove material. CORRECT ANSWERS
False
Which end condition of an Extruded Boss is used to add an equal amount of material to
both sides of the sketch plane? CORRECT ANSWERS Mid Plane
Using the ___ option, you can change the state of a model back to where a particular
feature or features weren't yet created CORRECT ANSWERS Rollback
After an extruded feature has been created, you can always, go back and edit the
feature. When you edit an existing extrude feature, which of the following cannot be
changed from the Extrude PropertyManager CORRECT ANSWERS The shape of the
sketch profile
