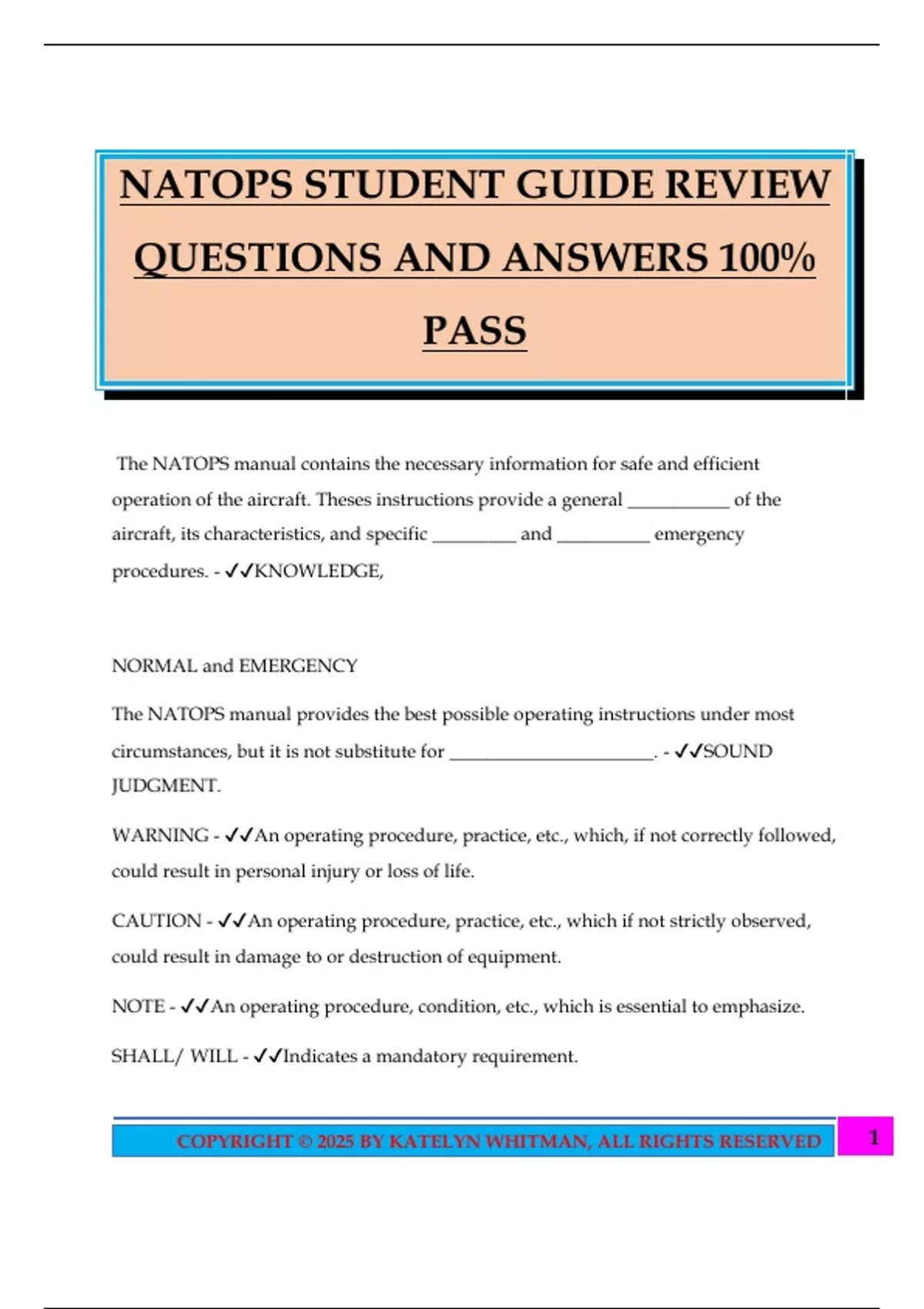

NATOPS STUDENT GUIDE REVIEW
QUESTIONS AND ANSWERS 100%
PASS
The NATOPS manual contains the necessary information for safe and efficient
operation of the aircraft. Theses instructions provide a general ___________ of the
aircraft, its characteristics, and specific _________ and __________ emergency
procedures. - ✔✔KNOWLEDGE,
NORMAL and EMERGENCY
The NATOPS manual provides the best possible operating instructions under most
circumstances, but it is not substitute for ______________________. - ✔✔SOUND
JUDGMENT.
WARNING - ✔✔An operating procedure, practice, etc., which, if not correctly followed,
could result in personal injury or loss of life.
CAUTION - ✔✔An operating procedure, practice, etc., which if not strictly observed,
could result in damage to or destruction of equipment.
NOTE - ✔✔An operating procedure, condition, etc., which is essential to emphasize.
SHALL/ WILL - ✔✔Indicates a mandatory requirement.
COPYRIGHT © 2025 BY KATELYN WHITMAN, ALL RIGHTS RESERVED 1
,SHOULD - ✔✔Indicates a NON-MANDATORY, desired, or preferred method of
accomplishment.
MAY - ✔✔Indicates an acceptable or suggested means of accomplishment.
A chip detector is mounted in the ____________ to detect ____________ in the oil. -
✔✔RGB
Ferrous material
If PMU function is lost or deactivated, the mechanical flyweight overspeed governor
modulates oil pressure to the propeller pitch change piston to maintain Np at or below
_____. - ✔✔100% +/- 2%
the starter and ignition switches are located in ______ cockpits - ✔✔BOTH
a flexible cable connects the front PCL (electrically and mechanically) to the
_____________ - ✔✔FMU (Fuel management unit)
The ____________ monitors engine operating parameters and illuminates the
appropriate annunciation when necessary. - ✔✔EDM (Engine data manager)
A fire warning system test switch, labeled, ____________, is provided on the
____________ left console test panel to verify the electrical continuity of the two fire
warning systems. - ✔✔FIRE,
FRONT
The firewall shutoff handle, located on the front left console panel, mechanically
operates cables to close ____________ at the firewall, cutting of ____________, and
COPYRIGHT © 2025 BY KATELYN WHITMAN, ALL RIGHTS RESERVED 2
, ____________ to the engine as well as cutting off ____________ from the engine. -
✔✔VALVES,
FUEL,
HYDRAULIC FLUID,
BLEED AIR
The left and right wing tanks have a capacity of aprox ____________ pounds each. The
central collector tank holds aprox. ____________ pounds. - ✔✔527,
47
To reset the auto balance system and the 2-minute timer, place the _______________
switch to ____________ then return it to the _____________ position. - ✔✔FUEL
BALANCE,
MAN RESET,
AUTO
During inverted flight, a weighted rod in the pickup valve closes off the normal fuel
pickup and opens the "inverted flight fuel pickup". This provides a minimum of
____________ of fuel regardless of orientation. - ✔✔60 SECONDS
COPYRIGHT © 2025 BY KATELYN WHITMAN, ALL RIGHTS RESERVED 3
