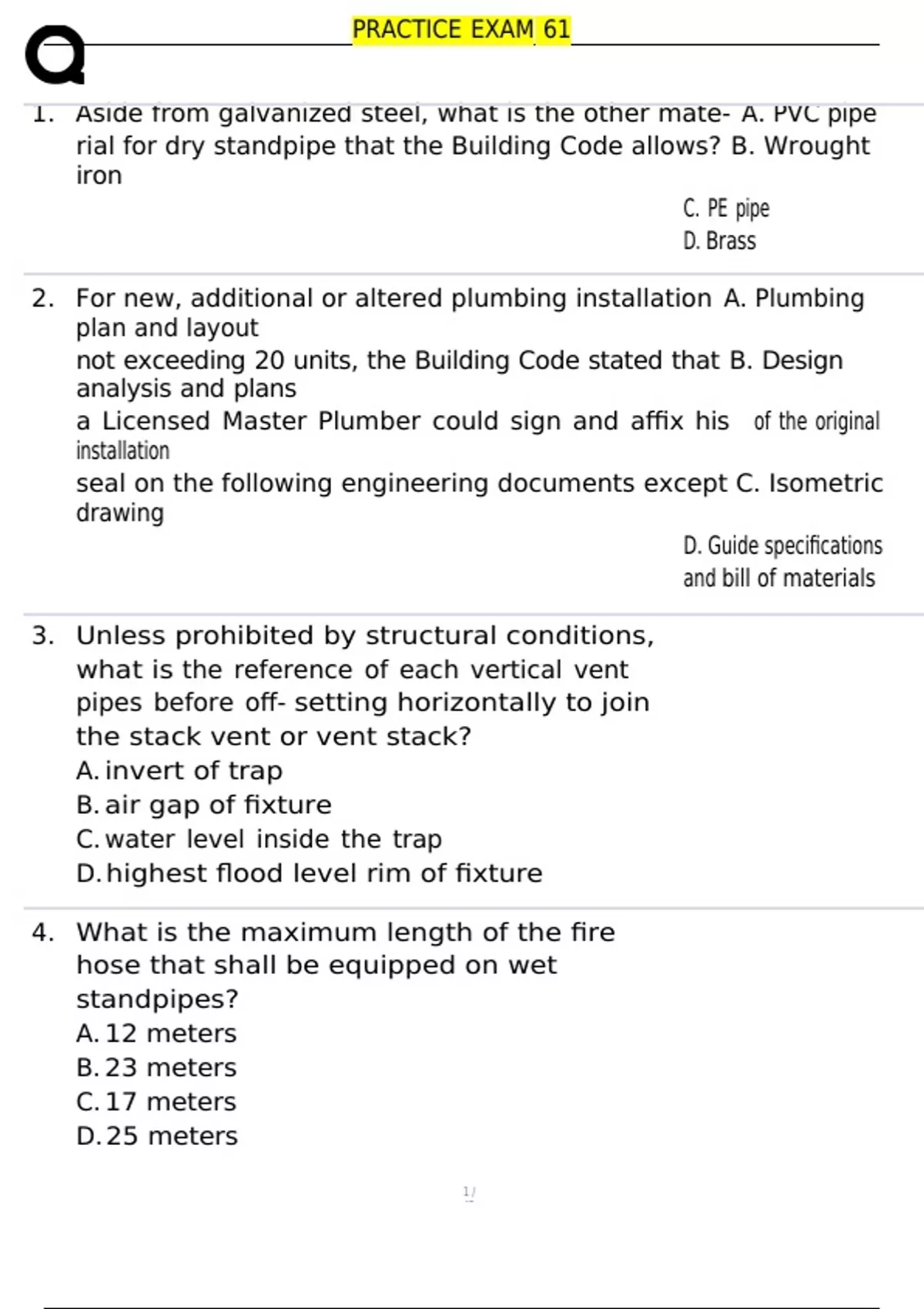

PRACTICE EXAM 61
1. Aside from galvanized steel, what is the other mate- A. PVC pipe
rial for dry standpipe that the Building Code allows? B. Wrought
iron
C. PE pipe
D. Brass
2. For new, additional or altered plumbing installation A. Plumbing
plan and layout
not exceeding 20 units, the Building Code stated that B. Design
analysis and plans
a Licensed Master Plumber could sign and affix his of the original
installation
seal on the following engineering documents except C. Isometric
drawing
D. Guide specifications
and bill of materials
3. Unless prohibited by structural conditions,
what is the reference of each vertical vent
pipes before off- setting horizontally to join
the stack vent or vent stack?
A. invert of trap
B. air gap of fixture
C. water level inside the trap
D. highest flood level rim of fixture
4. What is the maximum length of the fire
hose that shall be equipped on wet
standpipes?
A. 12 meters
B. 23 meters
C. 17 meters
D. 25 meters
1/
42
, PRACTICE EXAM 61
5. Who was awarded as the most outstanding
Regis- tered Master Plumber for the Year
2011?
A. Dave Vela
B. Alberto Azarcon
2/
42
, PRACTICE EXAM 61
C. Alberto Cabael
D. Thelma Cardente
6. 6. What is the minimum total net inlet
area of roof deck drains on roof deck used
as sun decks and parking decks?
A. equal to the area of outlet pipe
B. equal to 4 times the area of outlet pipe
C. equal to 2 times the area of outlet pipe
D. equal to 1 1/2 times the area of outlet pipe
7. The cover of gravity tanks shall be vented
using a screened
A. return bend pipe
B. upright pipe
C. horizontal nipple
D. all of these
8. A type of drainage and venting system with
universal branch line that is prohibited
A. single
B. dual
C. dependent
D. alternate
9. . A fitting for lead-caulked joint that is
prohibited when in vertical position
A. single hub
B. double hub
C. double tapped tee
D. all of these
10.
3/
42
, PRACTICE EXAM 61
What is the shape for the signage for women's
com- fort room in order to aid visually
impaired women readily determine whether
a washroom is for men or women?
A. CIRCLE
B. RECTANGLE
C. TRIANGLE
D. SQUARE
11. In the excreta drainage system, which of
the fol- lowing pipe materials should not
be used under- ground?
A. vitrified clay pipe
B. hubless cast iron
C. galvanized wrought iron
D. none of the above
12. According to the Fire Code of the Philippines
what is the required slope of all horizontal
runs of dry standpipes system for purpose
of drawing?
A. 10%
B. 20%
C. 5%
D. 2%
13. What portion of the trap should the vent
pipe open- ing will not go below from a soil
or waste pipe?
A. slip joint
B. weir
C. sleeve
D. seal
4/
42
