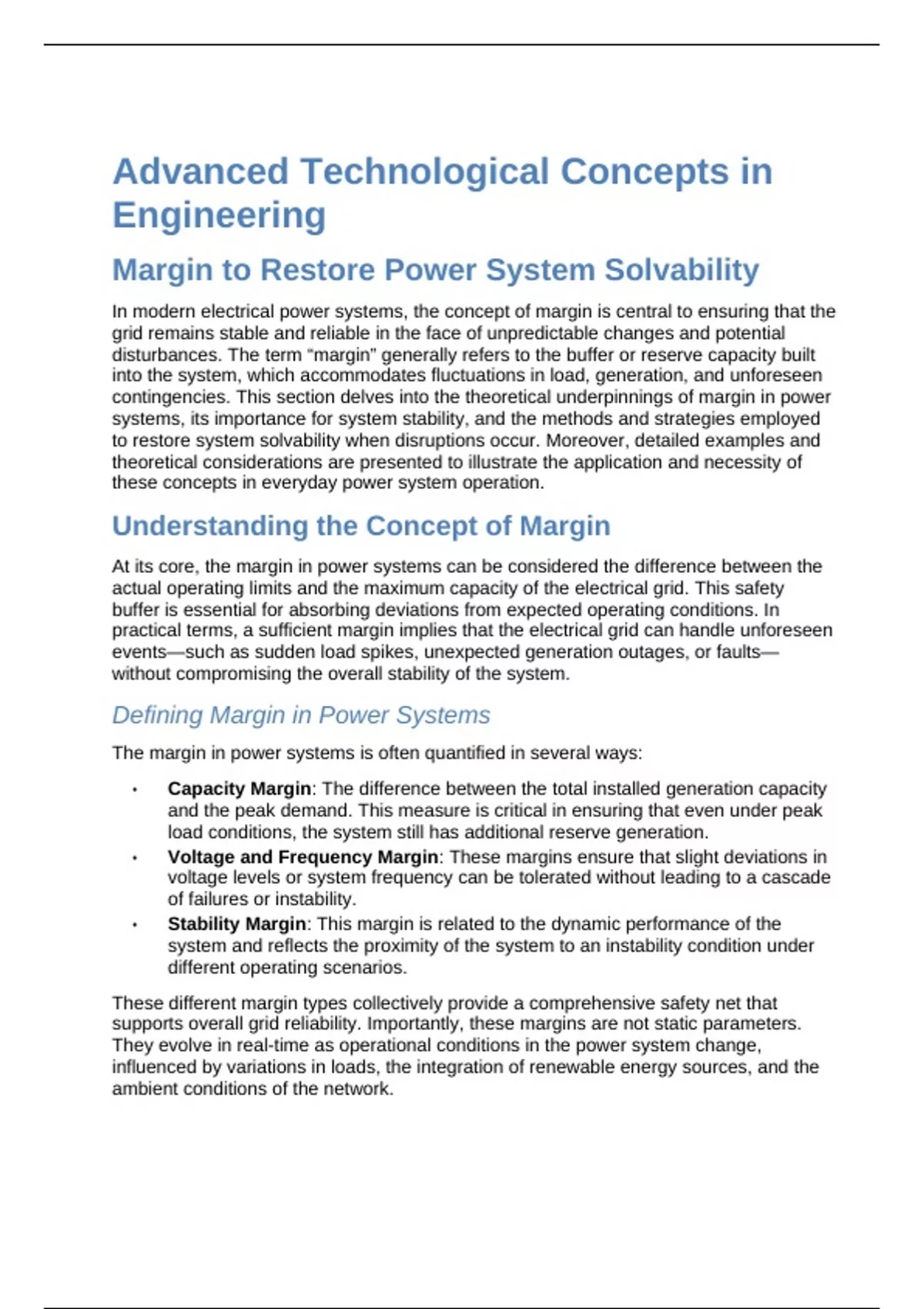

Advanced Technological Concepts in
Engineering
Margin to Restore Power System Solvability
In modern electrical power systems, the concept of margin is central to ensuring that the
grid remains stable and reliable in the face of unpredictable changes and potential
disturbances. The term “margin” generally refers to the buffer or reserve capacity built
into the system, which accommodates fluctuations in load, generation, and unforeseen
contingencies. This section delves into the theoretical underpinnings of margin in power
systems, its importance for system stability, and the methods and strategies employed
to restore system solvability when disruptions occur. Moreover, detailed examples and
theoretical considerations are presented to illustrate the application and necessity of
these concepts in everyday power system operation.
Understanding the Concept of Margin
At its core, the margin in power systems can be considered the difference between the
actual operating limits and the maximum capacity of the electrical grid. This safety
buffer is essential for absorbing deviations from expected operating conditions. In
practical terms, a sufficient margin implies that the electrical grid can handle unforeseen
events—such as sudden load spikes, unexpected generation outages, or faults—
without compromising the overall stability of the system.
Defining Margin in Power Systems
The margin in power systems is often quantified in several ways:
• Capacity Margin: The difference between the total installed generation capacity
and the peak demand. This measure is critical in ensuring that even under peak
load conditions, the system still has additional reserve generation.
• Voltage and Frequency Margin: These margins ensure that slight deviations in
voltage levels or system frequency can be tolerated without leading to a cascade
of failures or instability.
• Stability Margin: This margin is related to the dynamic performance of the
system and reflects the proximity of the system to an instability condition under
different operating scenarios.
These different margin types collectively provide a comprehensive safety net that
supports overall grid reliability. Importantly, these margins are not static parameters.
They evolve in real-time as operational conditions in the power system change,
influenced by variations in loads, the integration of renewable energy sources, and the
ambient conditions of the network.
,Theoretical Foundations and Modeling of Margin
The theoretical understanding of power system margins is rooted in both deterministic
and probabilistic approaches. Traditional deterministic models treat the system as a set
of equations representing power flow, voltage limits, and other constraints, thereby
delineating a feasible operating region. Within this region, a margin exists as a measure
of distance from the system’s stability boundaries.
On the other hand, probabilistic methods consider the inherent uncertainties in
generation, demand, and network conditions. These uncertainties are modeled using
statistical variables, leading to a probabilistic description of the operating margin. For
instance, Monte Carlo simulations are widely employed to derive probabilistic
distributions of margins, thereby offering a nuanced view of system robustness under
stochastic influences.
Mathematical Representation:
Consider the following simplified equation for power flow validation in a network:
P = V² / Z
where P represents the active power, V is the voltage magnitude, and Z denotes the
impedance of the system. The margin is defined based on how far the current operating
point (P_operating, V_operating) lies from its critical limits (P_critical, V_critical) in
relation to the impedance characteristics of the network. More formally, a stability index
can be introduced:
Margin Index = (P_critical - P_operating) / P_critical
This ratio must remain above a predefined threshold to maintain system solvability. In
multi-node, meshed networks, similar indices are computed for each network branch
and then aggregated to yield a comprehensive view of the system margin.
Importance of Maintaining Margin in Power Systems
The margin is not merely an abstract concept; it plays an instrumental role in ensuring
the safe and reliable operation of electrical grids throughout their lifecycle. In an
environment where loads rapidly evolve and generation sources fluctuate particularly
with increasing integration of renewable resources, maintaining a robust margin is
critical to avoid blackouts and cascading failures.
Ensuring System Resilience
Resilience in power systems is the ability to absorb disturbances without losing
functionality. The operational margin is analogous to a shock absorber—it absorbs the
excess stresses that occur during contingencies such as sudden generation loss or
surges in consumer demand. This is vital because even minor disturbances, if
unmitigated due to an inadequate margin, may escalate into systemic instability.
,For example, a thermal power station operating close to its maximum capacity might
face difficulties during sudden drops in generation from renewable sources like wind or
solar. The built-in capacity margin allows for rapid compensation by other lower-cost,
faster-ramping generation units, thus preserving the system frequency and voltage
levels within acceptable limits.
Dynamic Operating Conditions and Margin Utilization
The margin is dynamic in nature, implying that it continuously adapts to fluctuating
conditions in the grid. A key driver of this dynamism is the balance between supply and
demand. When demand is high or generation capacity is unexpectedly diminished, the
margin shrinks, signaling increased vulnerability. Conversely, periods of low demand
and robust generation resources typically see a recovery in the operational margin.
Real-time monitoring systems, harnessing advanced technology such as phasor
measurement units (PMUs) and smart sensors, continuously evaluate these margins.
These systems support grid operators in pre-emptively addressing potential issues.
Automated control schemes and decision support tools rely on margin analysis to
activate countermeasures and ensure instantaneous stabilization actions.
Implications of Margin Loss
When the operational margin falls below critical thresholds, the system enters a region
where stability can no longer be guaranteed. At this juncture, even minor disturbances
can trigger rapid divergence from normal operating conditions—commonly referred to
as “voltage collapse” or “frequency instability.” In severe cases, the resulting instability
can cascade across the network, leading to widespread, unmanageable blackouts.
Methods for Restoring Power System Solvability
Given that disturbances and reductions in margin are inevitable in power systems,
various techniques and strategies have been devised to restore system solvability and
re-establish stability. These methods can be broadly grouped into automated control
schemes, operator-driven contingency management steps, and advanced simulation-
assisted recovery strategies. Each approach is tailored to specific types of disturbances
and operational scenarios.
Automated Control and Protection Systems
Automated systems play a crucial role in the immediate recognition and response to
disturbances that compromise the operational margin. These systems utilize advanced
sensor networks and intelligent algorithms to detect anomalies and initiate corrective
actions. Some of the key automated strategies include:
• Load Shedding Schemes:
When the system margin is critically reduced, one of the quickest restoration
methods is controlled load shedding. In this approach, non-essential loads are
systematically disconnected to balance supply and demand. By reducing the
, overall system load, load shedding immediately increases the effective stability
margin and helps in preventing a total collapse.
• Generation Rescheduling and Fast Ramping Units:
Automated signals can prompt generators with fast ramping capabilities to adjust
their output rapidly. By either ramping up alternative generation sources or
modulating output from existing units, these systems continuously manage the
supply‐demand balance.
• Voltage and Frequency Regulation Mechanisms:
In scenarios where voltage or frequency deviations threaten system solvability,
automatic regulation devices, such as on-load tap changers (OLTC) and static
VAR compensators (SVC), bring these parameters back within acceptable
ranges.
• Dynamic Reconfiguration:
Modern smart grids are equipped with reconfigurable network elements that can
redirect power flows. In the event of line outages or faults, these systems
automatically reconfigure the network topology to bypass affected elements and
optimize the transmission of power through alternative routes.
These automated interventions are implemented through extensive protective relaying
and control systems, reducing the need for human intervention during acute events. The
speed and precision of these systems are fundamental to preserving margin during
high-stress situations.
Human Operator Interventions and Decision Support Systems
While automation handles instantaneous responses, human operators remain pivotal in
managing longer-term system recovery and strategic decision-making. Advanced
decision support systems provide operators with real-time information, predictive
analytics, and scenario simulations to support manual intervention strategies. The
interventions include:
• Sequential Load Restoration Procedures:
After an initial event and subsequent load shedding, operators often rely on
sequential restoration pre-plans that gradually reintroduce loads based on
criticality and network stability. These procedures ensure that a solution is stable
and does not induce a secondary wave of instability.
• Utilization of Contingency Analysis Tools:
Operators can use contingency analysis tools to simulate a range of potential
disturbances and to formulate robust action plans. These tools help forecast the
impact of generation or transmission outages and provide actionable insights on
how to best restore margin and solvability.
• Communication and Coordination with Generation Units:
Effective communication between grid operators and generation units allows for
coordinated ramping of additional capacity. In interconnected systems, this
Engineering
Margin to Restore Power System Solvability
In modern electrical power systems, the concept of margin is central to ensuring that the
grid remains stable and reliable in the face of unpredictable changes and potential
disturbances. The term “margin” generally refers to the buffer or reserve capacity built
into the system, which accommodates fluctuations in load, generation, and unforeseen
contingencies. This section delves into the theoretical underpinnings of margin in power
systems, its importance for system stability, and the methods and strategies employed
to restore system solvability when disruptions occur. Moreover, detailed examples and
theoretical considerations are presented to illustrate the application and necessity of
these concepts in everyday power system operation.
Understanding the Concept of Margin
At its core, the margin in power systems can be considered the difference between the
actual operating limits and the maximum capacity of the electrical grid. This safety
buffer is essential for absorbing deviations from expected operating conditions. In
practical terms, a sufficient margin implies that the electrical grid can handle unforeseen
events—such as sudden load spikes, unexpected generation outages, or faults—
without compromising the overall stability of the system.
Defining Margin in Power Systems
The margin in power systems is often quantified in several ways:
• Capacity Margin: The difference between the total installed generation capacity
and the peak demand. This measure is critical in ensuring that even under peak
load conditions, the system still has additional reserve generation.
• Voltage and Frequency Margin: These margins ensure that slight deviations in
voltage levels or system frequency can be tolerated without leading to a cascade
of failures or instability.
• Stability Margin: This margin is related to the dynamic performance of the
system and reflects the proximity of the system to an instability condition under
different operating scenarios.
These different margin types collectively provide a comprehensive safety net that
supports overall grid reliability. Importantly, these margins are not static parameters.
They evolve in real-time as operational conditions in the power system change,
influenced by variations in loads, the integration of renewable energy sources, and the
ambient conditions of the network.
,Theoretical Foundations and Modeling of Margin
The theoretical understanding of power system margins is rooted in both deterministic
and probabilistic approaches. Traditional deterministic models treat the system as a set
of equations representing power flow, voltage limits, and other constraints, thereby
delineating a feasible operating region. Within this region, a margin exists as a measure
of distance from the system’s stability boundaries.
On the other hand, probabilistic methods consider the inherent uncertainties in
generation, demand, and network conditions. These uncertainties are modeled using
statistical variables, leading to a probabilistic description of the operating margin. For
instance, Monte Carlo simulations are widely employed to derive probabilistic
distributions of margins, thereby offering a nuanced view of system robustness under
stochastic influences.
Mathematical Representation:
Consider the following simplified equation for power flow validation in a network:
P = V² / Z
where P represents the active power, V is the voltage magnitude, and Z denotes the
impedance of the system. The margin is defined based on how far the current operating
point (P_operating, V_operating) lies from its critical limits (P_critical, V_critical) in
relation to the impedance characteristics of the network. More formally, a stability index
can be introduced:
Margin Index = (P_critical - P_operating) / P_critical
This ratio must remain above a predefined threshold to maintain system solvability. In
multi-node, meshed networks, similar indices are computed for each network branch
and then aggregated to yield a comprehensive view of the system margin.
Importance of Maintaining Margin in Power Systems
The margin is not merely an abstract concept; it plays an instrumental role in ensuring
the safe and reliable operation of electrical grids throughout their lifecycle. In an
environment where loads rapidly evolve and generation sources fluctuate particularly
with increasing integration of renewable resources, maintaining a robust margin is
critical to avoid blackouts and cascading failures.
Ensuring System Resilience
Resilience in power systems is the ability to absorb disturbances without losing
functionality. The operational margin is analogous to a shock absorber—it absorbs the
excess stresses that occur during contingencies such as sudden generation loss or
surges in consumer demand. This is vital because even minor disturbances, if
unmitigated due to an inadequate margin, may escalate into systemic instability.
,For example, a thermal power station operating close to its maximum capacity might
face difficulties during sudden drops in generation from renewable sources like wind or
solar. The built-in capacity margin allows for rapid compensation by other lower-cost,
faster-ramping generation units, thus preserving the system frequency and voltage
levels within acceptable limits.
Dynamic Operating Conditions and Margin Utilization
The margin is dynamic in nature, implying that it continuously adapts to fluctuating
conditions in the grid. A key driver of this dynamism is the balance between supply and
demand. When demand is high or generation capacity is unexpectedly diminished, the
margin shrinks, signaling increased vulnerability. Conversely, periods of low demand
and robust generation resources typically see a recovery in the operational margin.
Real-time monitoring systems, harnessing advanced technology such as phasor
measurement units (PMUs) and smart sensors, continuously evaluate these margins.
These systems support grid operators in pre-emptively addressing potential issues.
Automated control schemes and decision support tools rely on margin analysis to
activate countermeasures and ensure instantaneous stabilization actions.
Implications of Margin Loss
When the operational margin falls below critical thresholds, the system enters a region
where stability can no longer be guaranteed. At this juncture, even minor disturbances
can trigger rapid divergence from normal operating conditions—commonly referred to
as “voltage collapse” or “frequency instability.” In severe cases, the resulting instability
can cascade across the network, leading to widespread, unmanageable blackouts.
Methods for Restoring Power System Solvability
Given that disturbances and reductions in margin are inevitable in power systems,
various techniques and strategies have been devised to restore system solvability and
re-establish stability. These methods can be broadly grouped into automated control
schemes, operator-driven contingency management steps, and advanced simulation-
assisted recovery strategies. Each approach is tailored to specific types of disturbances
and operational scenarios.
Automated Control and Protection Systems
Automated systems play a crucial role in the immediate recognition and response to
disturbances that compromise the operational margin. These systems utilize advanced
sensor networks and intelligent algorithms to detect anomalies and initiate corrective
actions. Some of the key automated strategies include:
• Load Shedding Schemes:
When the system margin is critically reduced, one of the quickest restoration
methods is controlled load shedding. In this approach, non-essential loads are
systematically disconnected to balance supply and demand. By reducing the
, overall system load, load shedding immediately increases the effective stability
margin and helps in preventing a total collapse.
• Generation Rescheduling and Fast Ramping Units:
Automated signals can prompt generators with fast ramping capabilities to adjust
their output rapidly. By either ramping up alternative generation sources or
modulating output from existing units, these systems continuously manage the
supply‐demand balance.
• Voltage and Frequency Regulation Mechanisms:
In scenarios where voltage or frequency deviations threaten system solvability,
automatic regulation devices, such as on-load tap changers (OLTC) and static
VAR compensators (SVC), bring these parameters back within acceptable
ranges.
• Dynamic Reconfiguration:
Modern smart grids are equipped with reconfigurable network elements that can
redirect power flows. In the event of line outages or faults, these systems
automatically reconfigure the network topology to bypass affected elements and
optimize the transmission of power through alternative routes.
These automated interventions are implemented through extensive protective relaying
and control systems, reducing the need for human intervention during acute events. The
speed and precision of these systems are fundamental to preserving margin during
high-stress situations.
Human Operator Interventions and Decision Support Systems
While automation handles instantaneous responses, human operators remain pivotal in
managing longer-term system recovery and strategic decision-making. Advanced
decision support systems provide operators with real-time information, predictive
analytics, and scenario simulations to support manual intervention strategies. The
interventions include:
• Sequential Load Restoration Procedures:
After an initial event and subsequent load shedding, operators often rely on
sequential restoration pre-plans that gradually reintroduce loads based on
criticality and network stability. These procedures ensure that a solution is stable
and does not induce a secondary wave of instability.
• Utilization of Contingency Analysis Tools:
Operators can use contingency analysis tools to simulate a range of potential
disturbances and to formulate robust action plans. These tools help forecast the
impact of generation or transmission outages and provide actionable insights on
how to best restore margin and solvability.
• Communication and Coordination with Generation Units:
Effective communication between grid operators and generation units allows for
coordinated ramping of additional capacity. In interconnected systems, this
