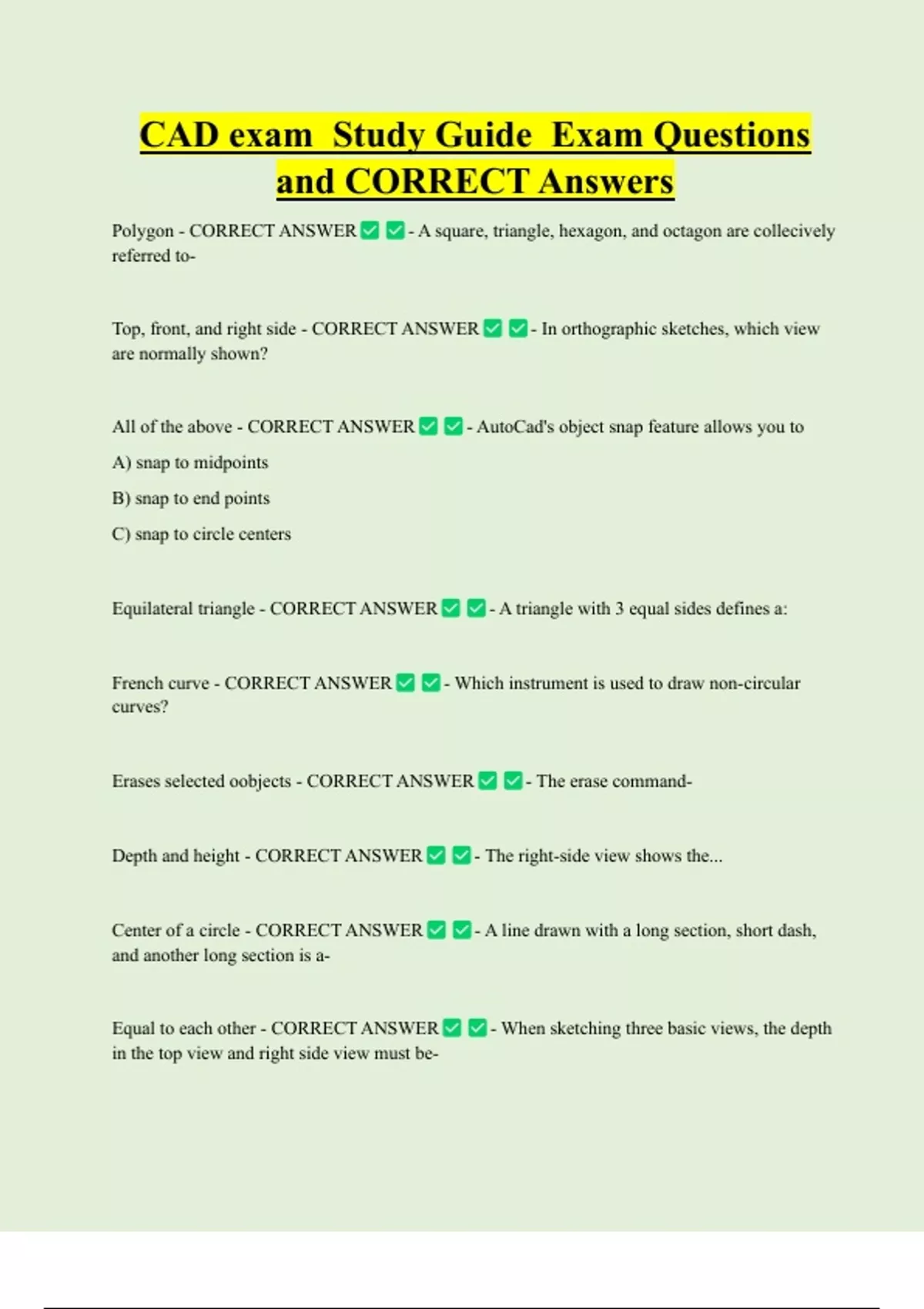

CAD exam Study Guide Exam Questions
and CORRECT Answers
Polygon - CORRECT ANSWER - A square, triangle, hexagon, and octagon are collecively
referred to-
Top, front, and right side - CORRECT ANSWER - In orthographic sketches, which view
are normally shown?
All of the above - CORRECT ANSWER - AutoCad's object snap feature allows you to
A) snap to midpoints
B) snap to end points
C) snap to circle centers
Equilateral triangle - CORRECT ANSWER - A triangle with 3 equal sides defines a:
French curve - CORRECT ANSWER - Which instrument is used to draw non-circular
curves?
Erases selected oobjects - CORRECT ANSWER - The erase command-
Depth and height - CORRECT ANSWER - The right-side view shows the...
Center of a circle - CORRECT ANSWER - A line drawn with a long section, short dash,
and another long section is a-
Equal to each other - CORRECT ANSWER - When sketching three basic views, the depth
in the top view and right side view must be-
, DO's - CORRECT ANSWER - Describe arcs with radius
Circles with diameter
Include all dimensions and notations provided on the designers sketch
Use the same precision (number of decimal places) identifies by the designer
Drafter - CORRECT ANSWER - Makes working plans and detailed drawings
Offset - CORRECT ANSWER - Allows you to create a line hat is parallel to another line
Move - CORRECT ANSWER - Move objects to a new location on the screen
All of the above - CORRECT ANSWER - Layers are used for the following reason(s):
A) so layers can be selectively frozen and thawed
B) to organize drawing objects for color and line type assignments and plotting
C) to filter object selection sets
Keep the sketch n proportion - CORRECT ANSWER - The most important rule in
sketching is:
Tangent - CORRECT ANSWER - When a line intersects a circle at only one point, that
point is called a:
Engineers scale - CORRECT ANSWER - A scale measures a distance of 23.2'. Which
scale was most likely used to make the measurement?
Trim - CORRECT ANSWER - Which of the following commands would you use to
remove line segments drawn too far past an intersecting line?
