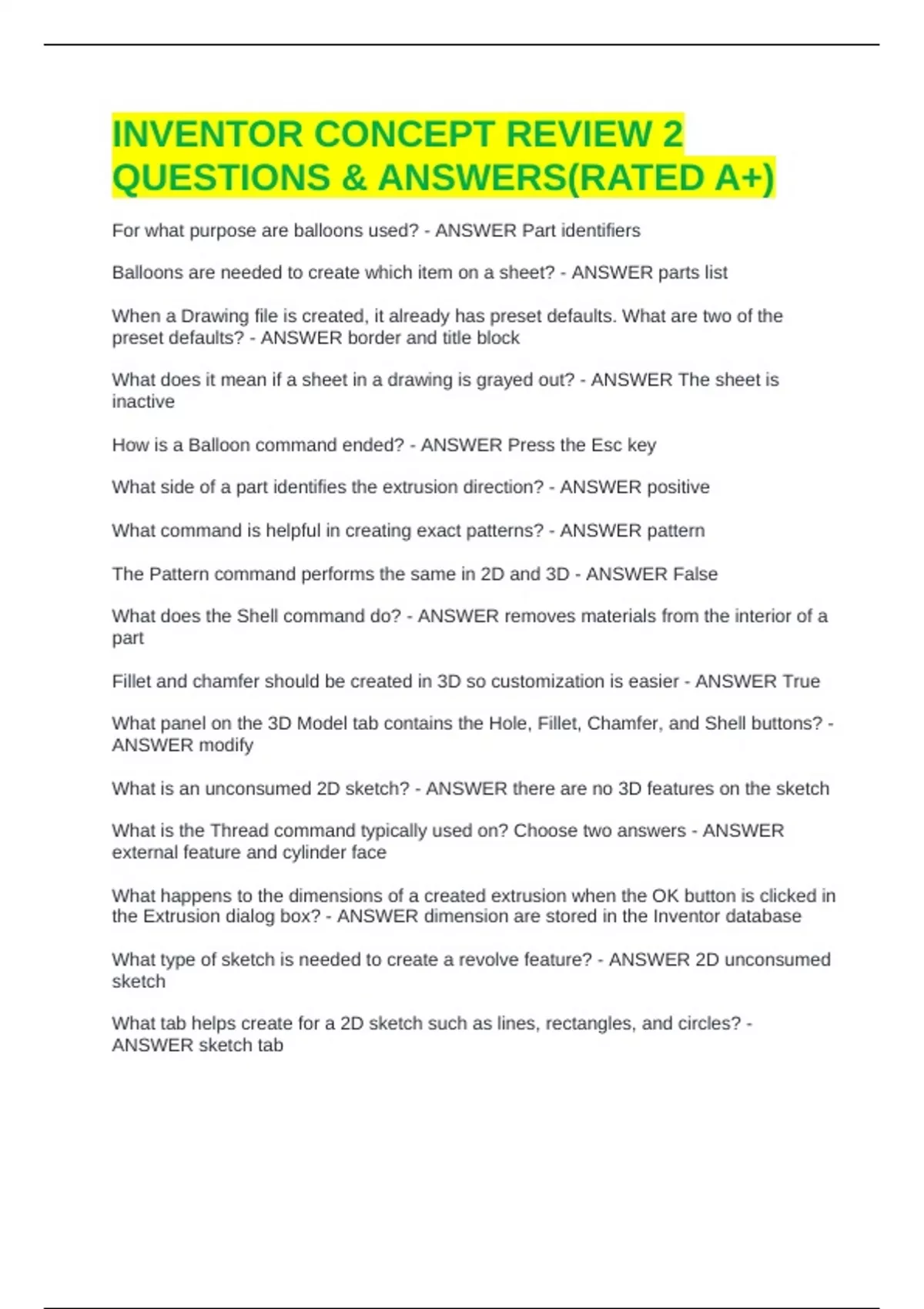

INVENTOR CONCEPT REVIEW 2
QUESTIONS & ANSWERS(RATED A+)
For what purpose are balloons used? - ANSWER Part identifiers
Balloons are needed to create which item on a sheet? - ANSWER parts list
When a Drawing file is created, it already has preset defaults. What are two of the
preset defaults? - ANSWER border and title block
What does it mean if a sheet in a drawing is grayed out? - ANSWER The sheet is
inactive
How is a Balloon command ended? - ANSWER Press the Esc key
What side of a part identifies the extrusion direction? - ANSWER positive
What command is helpful in creating exact patterns? - ANSWER pattern
The Pattern command performs the same in 2D and 3D - ANSWER False
What does the Shell command do? - ANSWER removes materials from the interior of a
part
Fillet and chamfer should be created in 3D so customization is easier - ANSWER True
What panel on the 3D Model tab contains the Hole, Fillet, Chamfer, and Shell buttons? -
ANSWER modify
What is an unconsumed 2D sketch? - ANSWER there are no 3D features on the sketch
What is the Thread command typically used on? Choose two answers - ANSWER
external feature and cylinder face
What happens to the dimensions of a created extrusion when the OK button is clicked in
the Extrusion dialog box? - ANSWER dimension are stored in the Inventor database
What type of sketch is needed to create a revolve feature? - ANSWER 2D unconsumed
sketch
What tab helps create for a 2D sketch such as lines, rectangles, and circles? -
ANSWER sketch tab
