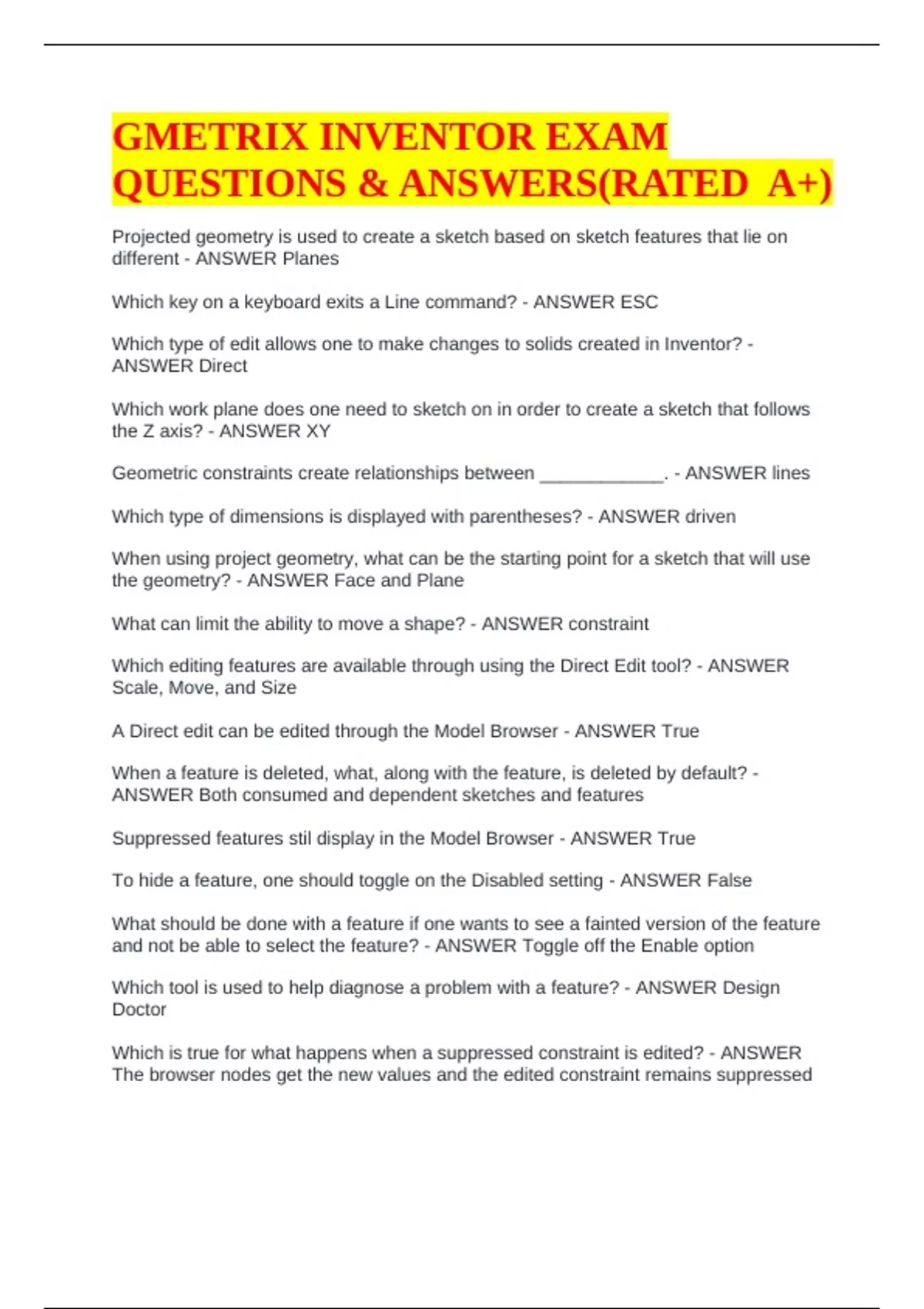

GMETRIX INVENTOR EXAM
QUESTIONS & ANSWERS(RATED A+)
Projected geometry is used to create a sketch based on sketch features that lie on
different - ANSWER Planes
Which key on a keyboard exits a Line command? - ANSWER ESC
Which type of edit allows one to make changes to solids created in Inventor? -
ANSWER Direct
Which work plane does one need to sketch on in order to create a sketch that follows
the Z axis? - ANSWER XY
Geometric constraints create relationships between ____________. - ANSWER lines
Which type of dimensions is displayed with parentheses? - ANSWER driven
When using project geometry, what can be the starting point for a sketch that will use
the geometry? - ANSWER Face and Plane
What can limit the ability to move a shape? - ANSWER constraint
Which editing features are available through using the Direct Edit tool? - ANSWER
Scale, Move, and Size
A Direct edit can be edited through the Model Browser - ANSWER True
When a feature is deleted, what, along with the feature, is deleted by default? -
ANSWER Both consumed and dependent sketches and features
Suppressed features stil display in the Model Browser - ANSWER True
To hide a feature, one should toggle on the Disabled setting - ANSWER False
What should be done with a feature if one wants to see a fainted version of the feature
and not be able to select the feature? - ANSWER Toggle off the Enable option
Which tool is used to help diagnose a problem with a feature? - ANSWER Design
Doctor
Which is true for what happens when a suppressed constraint is edited? - ANSWER
The browser nodes get the new values and the edited constraint remains suppressed
, A feature with the Enabled setting turned off can still be selected in the Graphics
window - ANSWER False
Which of the following is a location where read-only files that are referenced are stored?
- ANSWER library
True or False: iProperties can be used to change the default Bill of Materials structure of
a component. - ANSWER False
Which of the following can be changed in Application Options? - ANSWER Annotation
scale
True or False: In a part file, UCS placement supports a solid circular edge or solid
elliptical edge as a point - ANSWER True
True or False: When direct editing, Scale is used to adjust the size of an individual face.
- ANSWER False
Which of the following is true when using Projected Cut Edges? - ANSWER All edges
that the plan cuts are projected to the sketch plane
For what purpose are balloons used? - ANSWER Part identifiers
Balloons are needed to create which item on a sheet? - ANSWER parts list
When a Drawing file is created, it already has preset defaults. What are two of the
preset defaults? - ANSWER Title Block and Border
What does it mean if a sheet in a drawing is grayed out? - ANSWER The sheet is
inactive
How is a Balloon command ended? - ANSWER Press the Esc key.
What side of a part identifies the extrusion direction? - ANSWER positive
What command is helpful in creating exact patterns? - ANSWER pattern
The pattern command performs the same in 2D and 3D - ANSWER False
What does the shell command do? - ANSWER Removes material from the interior of a
part
Fillet and chamfer features should be created in 3D so customization is easier. -
ANSWER True
