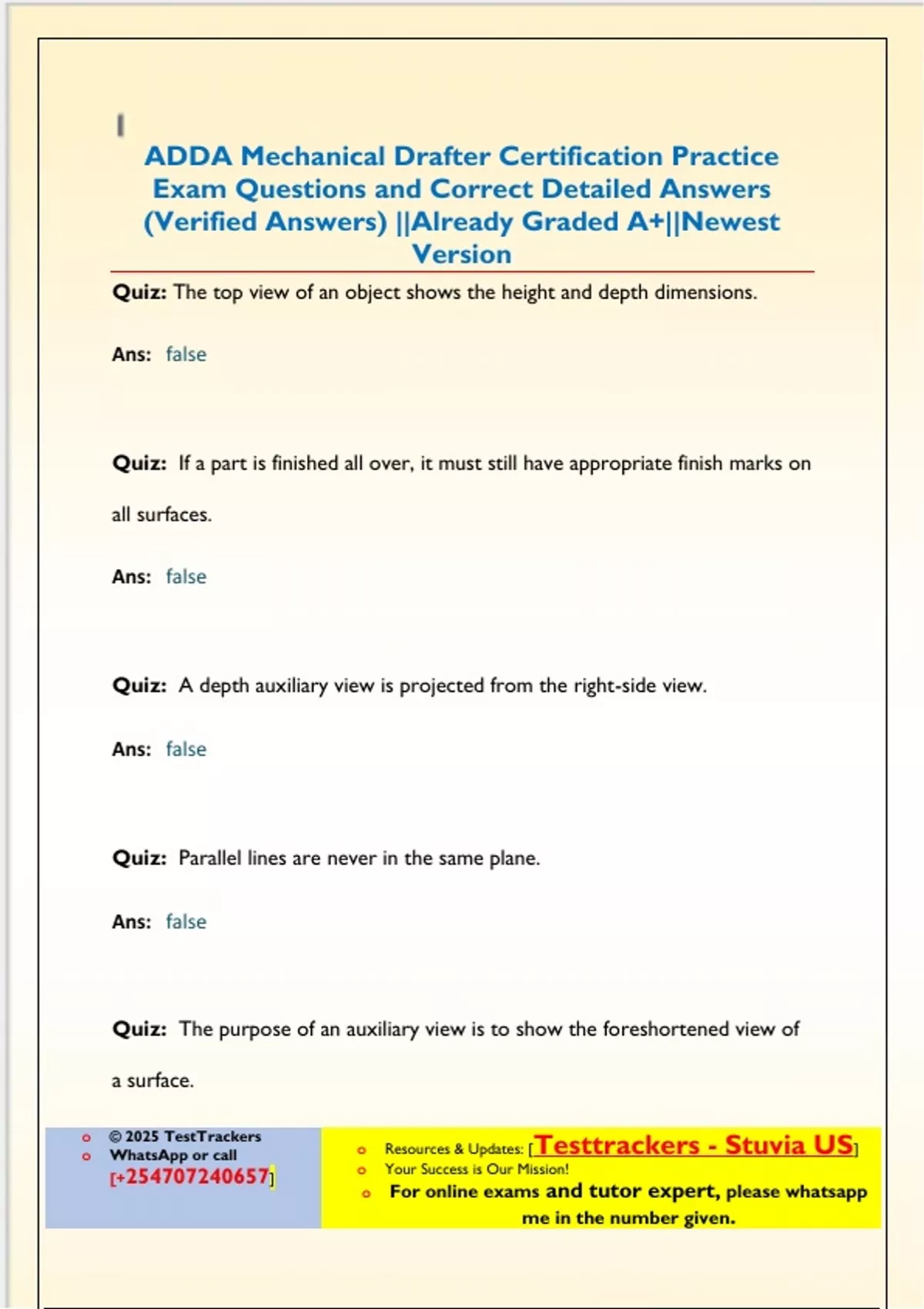

ADDA Mechanical Drafter Certification Practice
Exam Questions and Correct Detailed Answers
(Verified Answers) ||Already Graded A+||Newest
Version
Quiz: The top view of an object shows the height and depth dimensions.

Ans: false

Quiz: If a part is finished all over, it must still have appropriate finish marks on

all surfaces.

Ans: false

Quiz: A depth auxiliary view is projected from the right-side view.

Ans: false

Quiz: Parallel lines are never in the same plane.

Ans: false

Quiz: The purpose of an auxiliary view is to show the foreshortened view of

a surface.

o
o
© 2025 TestTrackers
WhatsApp or call o Resources & Updates: [Testtrackers - Stuvia US]
o Your Success is Our Mission!
[+254707240657]
o For online exams and tutor expert, please whatsapp
me in the number given.

, Ans: false

Quiz: There are 3600 seconds in a degree (angle measure).

Ans: true

Quiz: There are 3 standard projection planes: frontal, horizontal, and profile.

Ans: true

Quiz: In first angle projection, the object is between the viewer and

projection plane.

Ans: true

Quiz: An oblique plane is perpendicular to one of the of the primary planes.

Ans: false

Quiz: The front view of an object should be chosen to maximize hidden lines.

Ans: false

o
o
© 2025 TestTrackers
WhatsApp or call o Resources & Updates: [Testtrackers - Stuvia US]
o Your Success is Our Mission!
[+254707240657]
o For online exams and tutor expert, please whatsapp
me in the number given.

, Quiz: Extension lines may not cross other extension lines.

Ans: false

Quiz: The first line of dimensions is usually spaced 3/4" from the view.

Ans: false

Quiz: Reference dimensions may be used for production purposes.

Ans: false

Quiz: A trimetric pictorial has 3 different scales and axes.

Ans: true

Quiz: In an isometric drawing, measurements are taken from the isometric

axis at full scale.

Ans: true

Quiz: In a cavalier oblique pictorial, the depth dimension is drawn half-scale.

o
o
© 2025 TestTrackers
WhatsApp or call o Resources & Updates: [Testtrackers - Stuvia US]
o Your Success is Our Mission!
[+254707240657]
o For online exams and tutor expert, please whatsapp
me in the number given.
