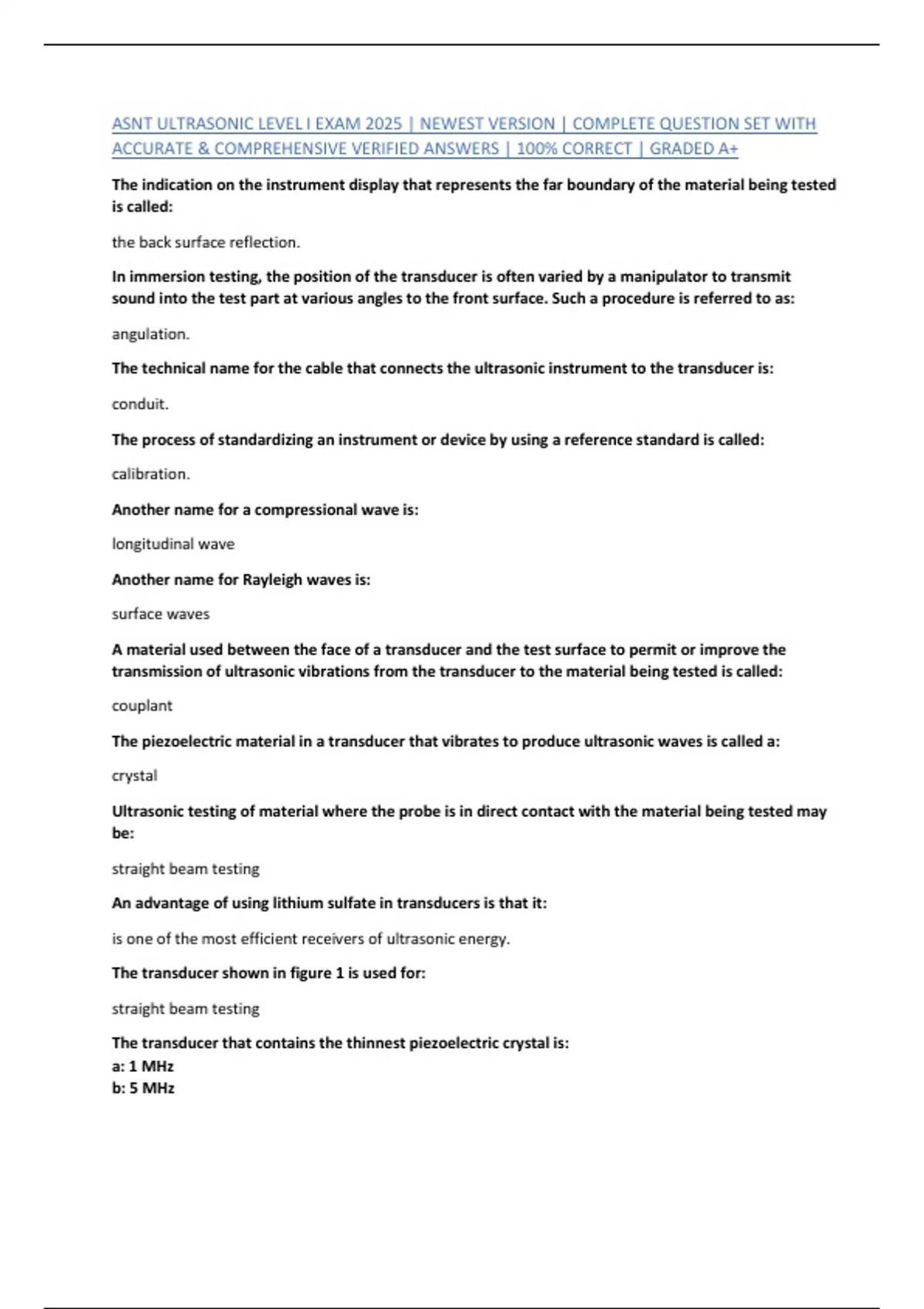

ACCURATE & COMPREHENSIVE VERIFIED ANSWERS | 100% CORRECT | GRADED A+
The indication on the instrument display that represents the far boundary of the material being tested
is called:
the back surface reflection.
In immersion testing, the position of the transducer is often varied by a manipulator to transmit
sound into the test part at various angles to the front surface. Such a procedure is referred to as:
angulation.
The technical name for the cable that connects the ultrasonic instrument to the transducer is:
conduit.
The process of standardizing an instrument or device by using a reference standard is called:
calibration.
Another name for a compressional wave is:
longitudinal wave
Another name for Rayleigh waves is:
surface waves
A material used between the face of a transducer and the test surface to permit or improve the
transmission of ultrasonic vibrations from the transducer to the material being tested is called:
couplant
The piezoelectric material in a transducer that vibrates to produce ultrasonic waves is called a:
crystal
Ultrasonic testing of material where the probe is in direct contact with the material being tested may
be:
straight beam testing
An advantage of using lithium sulfate in transducers is that it:
is one of the most efficient receivers of ultrasonic energy.
The transducer shown in figure 1 is used for:
straight beam testing
The transducer that contains the thinnest piezoelectric crystal is:
a: 1 MHz
b: 5 MHz
,c: 15 MHz
d: 25 MHz
25mhz
The amount of beam divergence from a crystal is primarily dependent on the:
frequency and crystal size
Penetration of ultrasonic waves in a material is normally the function of test frequency used. The
greatest depth of penetration is provided by a frequency of
a: 1 MHz
b: 2.25 MHz
c: 5 MHz
d: 10 Mhz
1 Mhz
When an ultrasonic beam passes through the interface between two dissimilar materials at an angle,
a new angle of sound travel takes place in the second material due to:
refraction
Figure 2 illustrates a contact test on. 203mm (8 in) aluminum block. A discontinuity is located 152mm
(6in) from the front surface. The display representation for this is shown to the right. What does
indication A represent?
A. The initial pulse or front surface indication
B. the first discontinuity indication
C. The first back surface reflection
D. Baseline
The initial pulse or front surface indication
In figure 2, indication B represents:
A: the initial pulse or front surface indication
B. the first discontinuity indication
C: the first back-surface reflection
D: baseline
the first discontinuity indication
In figure 2, indication C represents the:
A: second back surface reflection
B: first discontinuity indication
C: second indication of the discontinuity
D: first back surface reflection
first back surface reflection
In figure 2, indication D represents the:
A: first discontinuity indication
, B: second indication of the discontinuity
C: first back-surface reflection
D: second back-surface reflection
second indication of the discontinuity
In figure 2, indication E represents the:
A: first discontinuity indication
B: second indication of the discontinuity
C: first back-surface reflection
D: second back-surface reflection
second back surface reflection
The velocity of longitudinal waves is approximately ________ the velocity of shear waves in the same
material.
two times
Figure 3 illustrates an immersion test of a 76 mm (3 in) block of aluminum with a discontinuity located
51 mm (2 in) below the surface. The display pattern is shown also. What does indication A represent?
Assume no sweep delay is used.
A: first front surface indication
B: the initial pulse
C: the first discontinuity indication
D: the first back-surface indication
The initial pulse
In figure 3, indication B represents the:
A: first front surface indication
B: the initial pulse
C: the first discontinuity indication
D: the first back-surface indication
First front surface indication
In figure 3, indication C represents:
A: first front surface indication
B: first discontinuity indication
C: first back-surface reflection
D: second front surface indication
first discontinuity indication
In figure 3, indication D represents the:
A: first discontinuity indication
B: first back surface reflection
C: second front surface indication
D: second discontinuity indication
