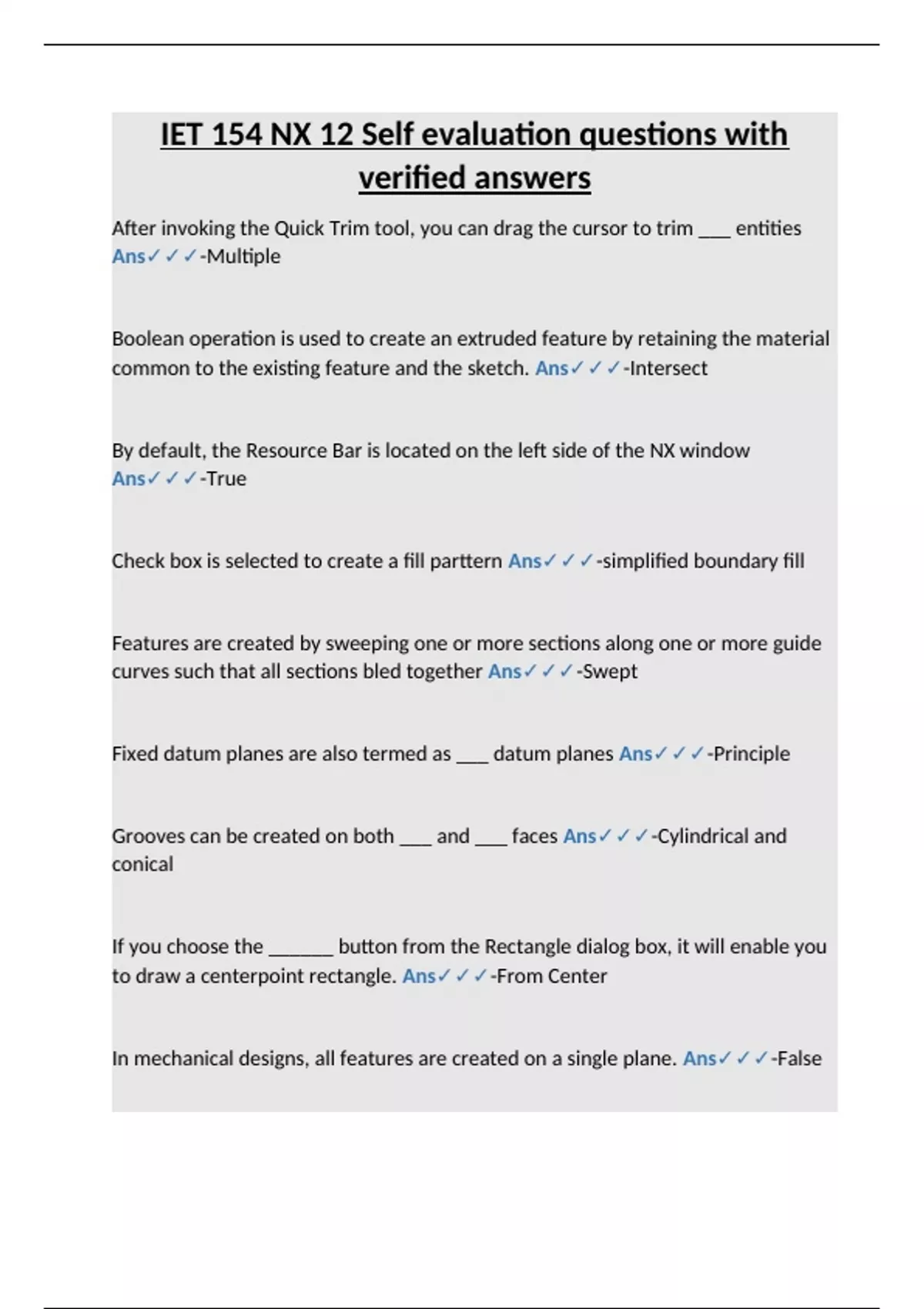

IET 154 NX 12 Self evaluation questions with
verified answers
After invoking the Quick Trim tool, you can drag the cursor to trim ___ entities
Ans✓✓✓-Multiple
Boolean operation is used to create an extruded feature by retaining the material
common to the existing feature and the sketch. Ans✓✓✓-Intersect
By default, the Resource Bar is located on the left side of the NX window
Ans✓✓✓-True
Check box is selected to create a fill parttern Ans✓✓✓-simplified boundary fill
Features are created by sweeping one or more sections along one or more guide
curves such that all sections bled together Ans✓✓✓-Swept
Fixed datum planes are also termed as ___ datum planes Ans✓✓✓-Principle
Grooves can be created on both ___ and ___ faces Ans✓✓✓-Cylindrical and
conical
If you choose the ______ button from the Rectangle dialog box, it will enable you
to draw a centerpoint rectangle. Ans✓✓✓-From Center
In mechanical designs, all features are created on a single plane. Ans✓✓✓-False
, In NX, The radial Dimension tool is used to add to diameter to the sketch
members. Ans✓✓✓-True
In NX, while extruding a sketch you can add a draft to it. Ans✓✓✓-True
In NX, you can add all types of geometric constraints by choosing the Geometric
constraints tool from the direct Sketch group on the home tab. Ans✓✓✓-True
In NX, you can create _________ Types of grooves Ans✓✓✓-three
In NX, you can Create a number of of holes at a time using to hole tool Ans✓✓✓-
True
In NX, you can create an aligned series of holes in multiple bodies. Ans✓✓✓-True
In NX, you can create only realistic thread Ans✓✓✓-False
In NX, you can extrude a sketch to preform only the unite operation Ans✓✓✓-
False
in Nx, you can sweep an open section along a guide curve Ans✓✓✓-True
Most of the designs created in NX consist of sketch-based features and placed
features Ans✓✓✓-True
verified answers
After invoking the Quick Trim tool, you can drag the cursor to trim ___ entities
Ans✓✓✓-Multiple
Boolean operation is used to create an extruded feature by retaining the material
common to the existing feature and the sketch. Ans✓✓✓-Intersect
By default, the Resource Bar is located on the left side of the NX window
Ans✓✓✓-True
Check box is selected to create a fill parttern Ans✓✓✓-simplified boundary fill
Features are created by sweeping one or more sections along one or more guide
curves such that all sections bled together Ans✓✓✓-Swept
Fixed datum planes are also termed as ___ datum planes Ans✓✓✓-Principle
Grooves can be created on both ___ and ___ faces Ans✓✓✓-Cylindrical and
conical
If you choose the ______ button from the Rectangle dialog box, it will enable you
to draw a centerpoint rectangle. Ans✓✓✓-From Center
In mechanical designs, all features are created on a single plane. Ans✓✓✓-False
, In NX, The radial Dimension tool is used to add to diameter to the sketch
members. Ans✓✓✓-True
In NX, while extruding a sketch you can add a draft to it. Ans✓✓✓-True
In NX, you can add all types of geometric constraints by choosing the Geometric
constraints tool from the direct Sketch group on the home tab. Ans✓✓✓-True
In NX, you can create _________ Types of grooves Ans✓✓✓-three
In NX, you can Create a number of of holes at a time using to hole tool Ans✓✓✓-
True
In NX, you can create an aligned series of holes in multiple bodies. Ans✓✓✓-True
In NX, you can create only realistic thread Ans✓✓✓-False
In NX, you can extrude a sketch to preform only the unite operation Ans✓✓✓-
False
in Nx, you can sweep an open section along a guide curve Ans✓✓✓-True
Most of the designs created in NX consist of sketch-based features and placed
features Ans✓✓✓-True
