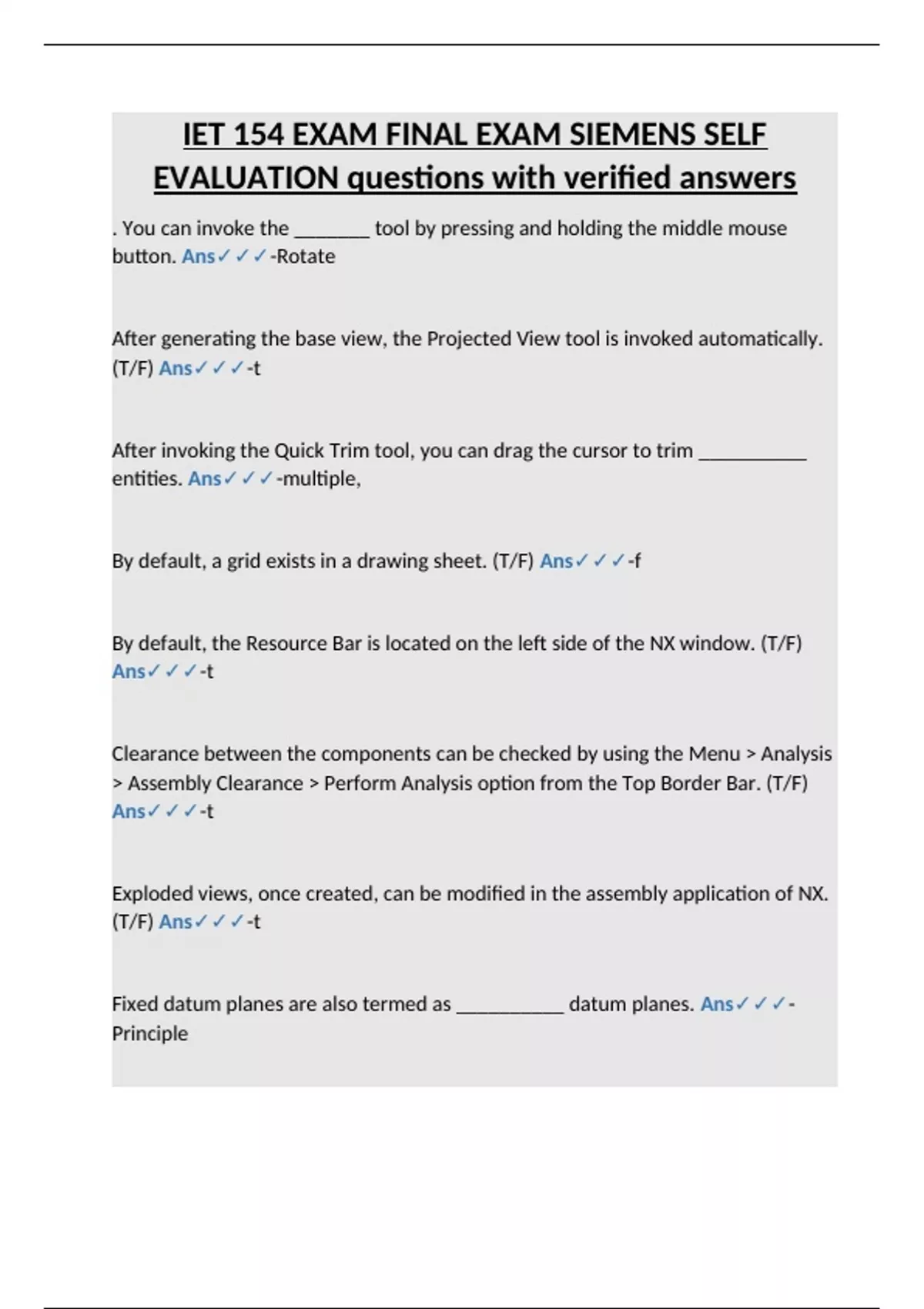

IET 154 EXAM FINAL EXAM SIEMENS SELF
EVALUATION questions with verified answers
. You can invoke the _______ tool by pressing and holding the middle mouse
button. Ans✓✓✓-Rotate
After generating the base view, the Projected View tool is invoked automatically.
(T/F) Ans✓✓✓-t
After invoking the Quick Trim tool, you can drag the cursor to trim __________
entities. Ans✓✓✓-multiple,
By default, a grid exists in a drawing sheet. (T/F) Ans✓✓✓-f
By default, the Resource Bar is located on the left side of the NX window. (T/F)
Ans✓✓✓-t
Clearance between the components can be checked by using the Menu > Analysis
> Assembly Clearance > Perform Analysis option from the Top Border Bar. (T/F)
Ans✓✓✓-t
Exploded views, once created, can be modified in the assembly application of NX.
(T/F) Ans✓✓✓-t
Fixed datum planes are also termed as __________ datum planes. Ans✓✓✓-
Principle
, For assembling the base component, it is mandatory to select the Absolute Origin
option from the Positioning drop-down list in the Add Component dialog box.
(T/F) Ans✓✓✓-f
Grooves can be created on both _________ and _________ faces. Ans✓✓✓-
cylindrical, conical
If you choose the __________ button from the Rectangle dialog box, it will enable
you to draw a centerpoint rectangle. Ans✓✓✓-From Center
In mechanical designs, all features are created on a single plane. (T/F) Ans✓✓✓-f
In NX, the Radial Dimension tool is used to add the diameter dimension to the
sketch members. (T/F) Ans✓✓✓-t
In NX, while extruding a sketch, you can add a draft to it. (T/F) Ans✓✓✓-t
In NX, you can add all types of geometric constraints by choosing the Geometric
Constraints tool from the Direct Sketch group of the Home tab. (T/F) Ans✓✓✓-t
In NX, you can create _________ types of grooves. Ans✓✓✓-three
In NX, you can create a number of holes at a time using the Hole tool. (T/F)
Ans✓✓✓-t
In NX, you can create an aligned series of holes in multiple bodies. (T/F)
Ans✓✓✓-t
EVALUATION questions with verified answers
. You can invoke the _______ tool by pressing and holding the middle mouse
button. Ans✓✓✓-Rotate
After generating the base view, the Projected View tool is invoked automatically.
(T/F) Ans✓✓✓-t
After invoking the Quick Trim tool, you can drag the cursor to trim __________
entities. Ans✓✓✓-multiple,
By default, a grid exists in a drawing sheet. (T/F) Ans✓✓✓-f
By default, the Resource Bar is located on the left side of the NX window. (T/F)
Ans✓✓✓-t
Clearance between the components can be checked by using the Menu > Analysis
> Assembly Clearance > Perform Analysis option from the Top Border Bar. (T/F)
Ans✓✓✓-t
Exploded views, once created, can be modified in the assembly application of NX.
(T/F) Ans✓✓✓-t
Fixed datum planes are also termed as __________ datum planes. Ans✓✓✓-
Principle
, For assembling the base component, it is mandatory to select the Absolute Origin
option from the Positioning drop-down list in the Add Component dialog box.
(T/F) Ans✓✓✓-f
Grooves can be created on both _________ and _________ faces. Ans✓✓✓-
cylindrical, conical
If you choose the __________ button from the Rectangle dialog box, it will enable
you to draw a centerpoint rectangle. Ans✓✓✓-From Center
In mechanical designs, all features are created on a single plane. (T/F) Ans✓✓✓-f
In NX, the Radial Dimension tool is used to add the diameter dimension to the
sketch members. (T/F) Ans✓✓✓-t
In NX, while extruding a sketch, you can add a draft to it. (T/F) Ans✓✓✓-t
In NX, you can add all types of geometric constraints by choosing the Geometric
Constraints tool from the Direct Sketch group of the Home tab. (T/F) Ans✓✓✓-t
In NX, you can create _________ types of grooves. Ans✓✓✓-three
In NX, you can create a number of holes at a time using the Hole tool. (T/F)
Ans✓✓✓-t
In NX, you can create an aligned series of holes in multiple bodies. (T/F)
Ans✓✓✓-t
