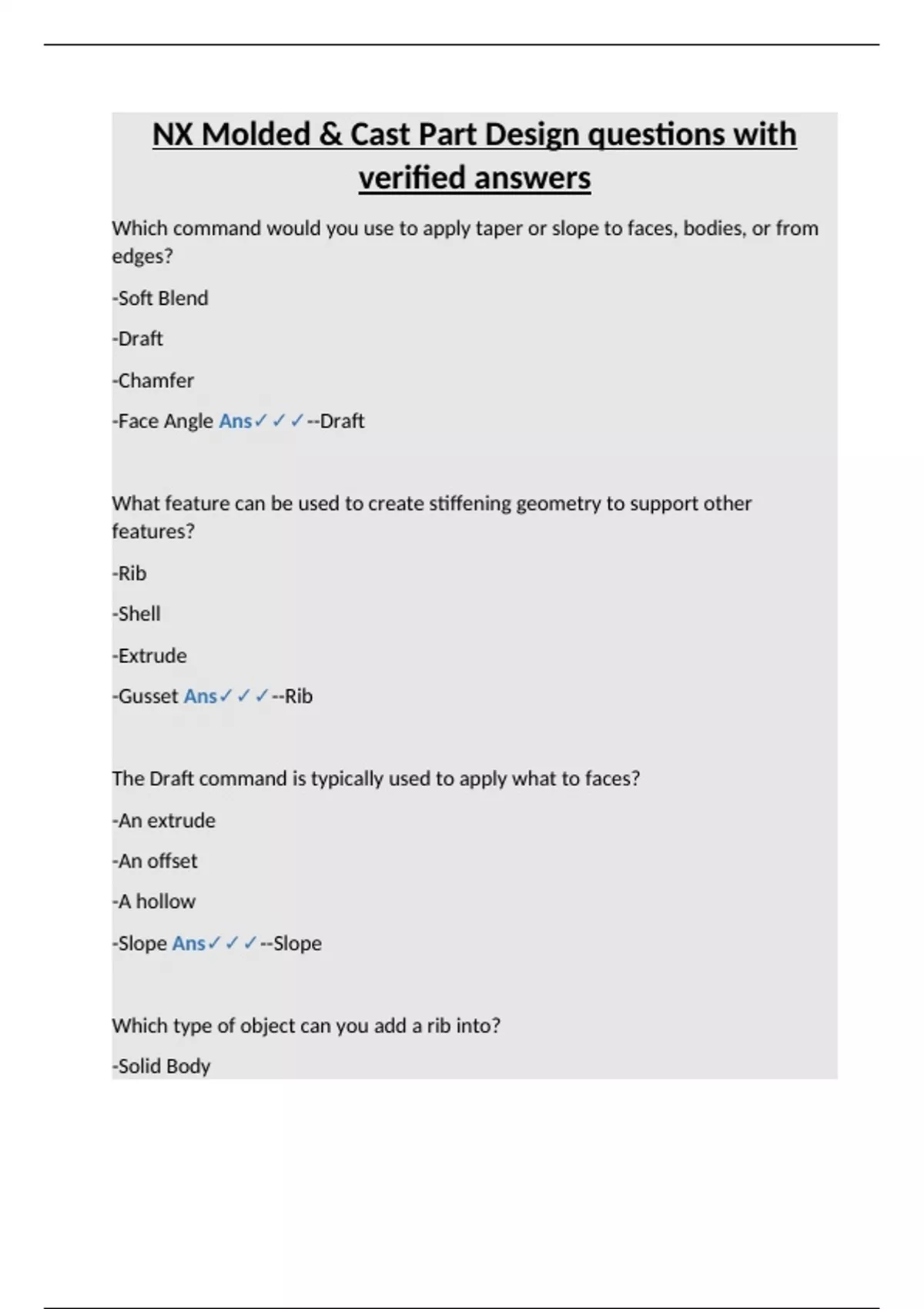

Which command would you use to apply taper or slope to faces, bodies, or from
edges?
-Soft Blend
-Draft
-Chamfer
-Face Angle Ans✓✓✓--Draft


What feature can be used to create stiffening geometry to support other
features?
-Rib
-Shell
-Extrude
-Gusset Ans✓✓✓--Rib


The Draft command is typically used to apply what to faces?
-An extrude
-An offset
-A hollow
-Slope Ans✓✓✓--Slope


Which type of object can you add a rib into?
-Solid Body

,-Sheet Body
-Datum Plane
-Assembly Component Ans✓✓✓--Solid Body


Which one of these is not a type of creation in the Face Blend command?
-Two-face
-Three-face
-Face and Vector
-Feature Intersection Edge Ans✓✓✓--Face and Vector


Which one of these command is the most efficient and preferable way to create
stiffeners on molded parts?
-Extrude
-Rib
-Thicken
-Flange Ans✓✓✓--Rib


The Rib feature can only be created in what situation?
-In a pocket area were the rib extends down and to the side walls
-There is no restriction on where ribs can be created
-Must be created on the top of a model and projected down to the surface
-Can only can be created on surface bodies Ans✓✓✓--In a pocket area were the
rib extends down and to the side walls

, To create a blend between three faces at the same time, what command would
you use?
-Edge Blend
-Styled Blend
-Aesthetic Face Blend
-Face Blend Ans✓✓✓--Face Blend


What command could be used to create a hollow molded part?
-hollow
-Shell
-subtract
-split body Ans✓✓✓--Shell


What is a unique ability of Face Blend over Edge Blend?
-Can create a blend between two connected faces
-Can create a blend between two faces that are not connected
-Can create a blend that is G1 tangent
-Can create a blend that is G2 curvature Ans✓✓✓--Can create a blend between
two faces that are not connected


What option in the extrude dialog will project an extrude to the side walls of a
pocket?
-Open Profile Smart Volume
-draft
-offset
