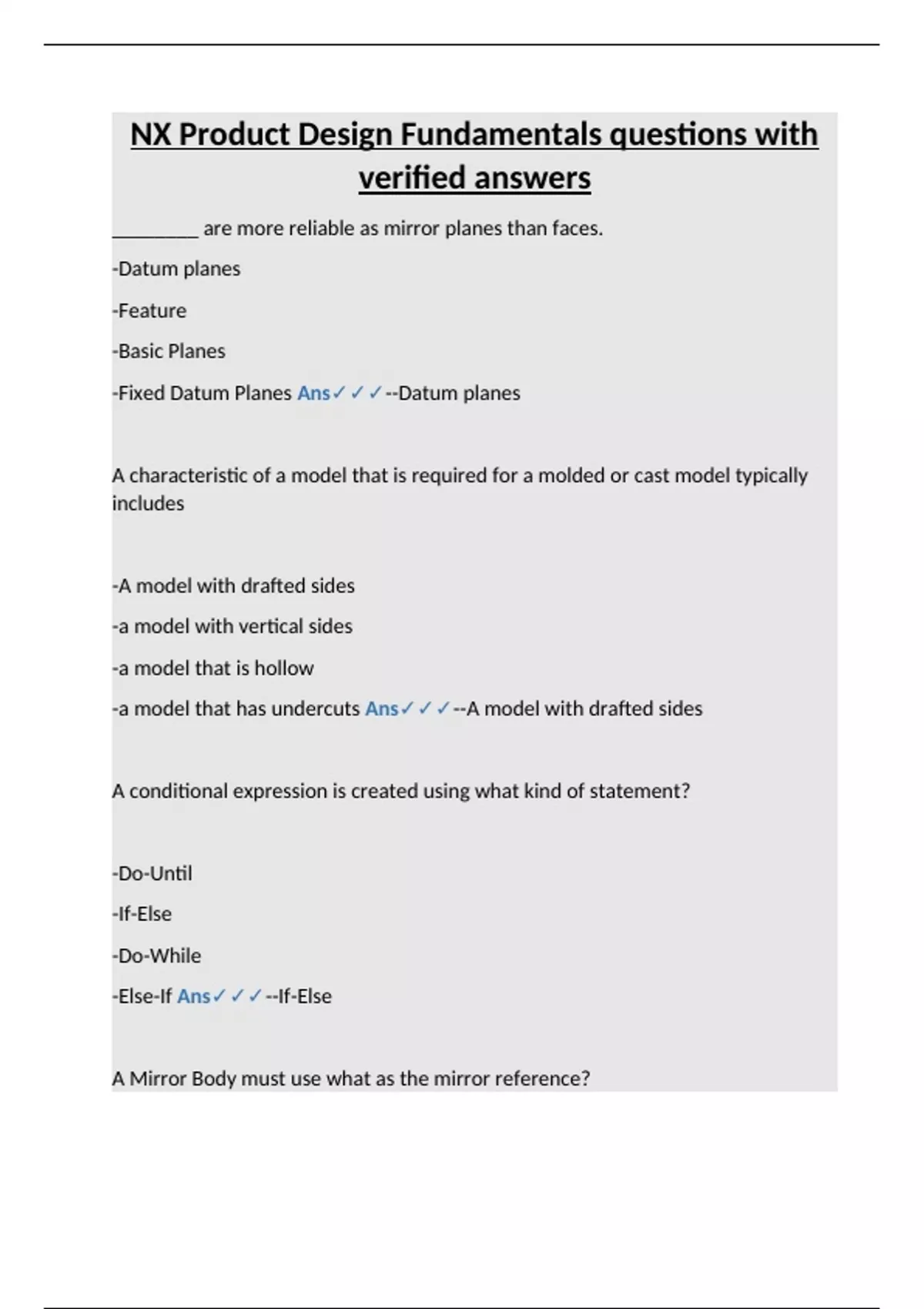

NX Product Design Fundamentals questions with
verified answers
________ are more reliable as mirror planes than faces.
-Datum planes
-Feature
-Basic Planes
-Fixed Datum Planes Ans✓✓✓--Datum planes
A characteristic of a model that is required for a molded or cast model typically
includes
-A model with drafted sides
-a model with vertical sides
-a model that is hollow
-a model that has undercuts Ans✓✓✓--A model with drafted sides
A conditional expression is created using what kind of statement?
-Do-Until
-If-Else
-Do-While
-Else-If Ans✓✓✓--If-Else
A Mirror Body must use what as the mirror reference?
,-planer face
-Datum Plane
-linear edge
-Datum Axis Ans✓✓✓--Datum Plane
Can design intent be incorporated after the initial model construction?
-No, the design intent is locked in from the start
-Only if the part started as an imported model
-Only if the model is not used in an assembly
-Yes, but may be more difficult Ans✓✓✓--Yes, but may be more difficult
Design intent will determine which one of the following tasks.
-The modeling strategy
-If a drawing is required
-The color to make the model
-The material density Ans✓✓✓--The modeling strategy
Draftcommand is typically used to apply ______ to faces for use in molded or die
cast parts.
-color
-texture
-slope
, -pressure Ans✓✓✓--slope
Extrude Offset options include which one of the following:
-Three-Sided
-Multi-Sided, Lop-Sided and asymmetric
-Single-Sided, Two-Sided and Symmetric
-From Start Distance and From Section Ans✓✓✓--Single-Sided, Two-Sided and
Symmetric
Extrude, Revolve and Sweep Along a Guide are what type of functions?
-Drag
-Swept
-Path
-Guide Ans✓✓✓--Swept
How can you easily edit a feature of a model?
-middle click the feature in the part navigator
-Double click the feature in the part navigator
-left click the feature in the part navigator
-double click in the background of the graphics window Ans✓✓✓--Double click
the feature in the part navigator
verified answers
________ are more reliable as mirror planes than faces.
-Datum planes
-Feature
-Basic Planes
-Fixed Datum Planes Ans✓✓✓--Datum planes
A characteristic of a model that is required for a molded or cast model typically
includes
-A model with drafted sides
-a model with vertical sides
-a model that is hollow
-a model that has undercuts Ans✓✓✓--A model with drafted sides
A conditional expression is created using what kind of statement?
-Do-Until
-If-Else
-Do-While
-Else-If Ans✓✓✓--If-Else
A Mirror Body must use what as the mirror reference?
,-planer face
-Datum Plane
-linear edge
-Datum Axis Ans✓✓✓--Datum Plane
Can design intent be incorporated after the initial model construction?
-No, the design intent is locked in from the start
-Only if the part started as an imported model
-Only if the model is not used in an assembly
-Yes, but may be more difficult Ans✓✓✓--Yes, but may be more difficult
Design intent will determine which one of the following tasks.
-The modeling strategy
-If a drawing is required
-The color to make the model
-The material density Ans✓✓✓--The modeling strategy
Draftcommand is typically used to apply ______ to faces for use in molded or die
cast parts.
-color
-texture
-slope
, -pressure Ans✓✓✓--slope
Extrude Offset options include which one of the following:
-Three-Sided
-Multi-Sided, Lop-Sided and asymmetric
-Single-Sided, Two-Sided and Symmetric
-From Start Distance and From Section Ans✓✓✓--Single-Sided, Two-Sided and
Symmetric
Extrude, Revolve and Sweep Along a Guide are what type of functions?
-Drag
-Swept
-Path
-Guide Ans✓✓✓--Swept
How can you easily edit a feature of a model?
-middle click the feature in the part navigator
-Double click the feature in the part navigator
-left click the feature in the part navigator
-double click in the background of the graphics window Ans✓✓✓--Double click
the feature in the part navigator
