ATT Test

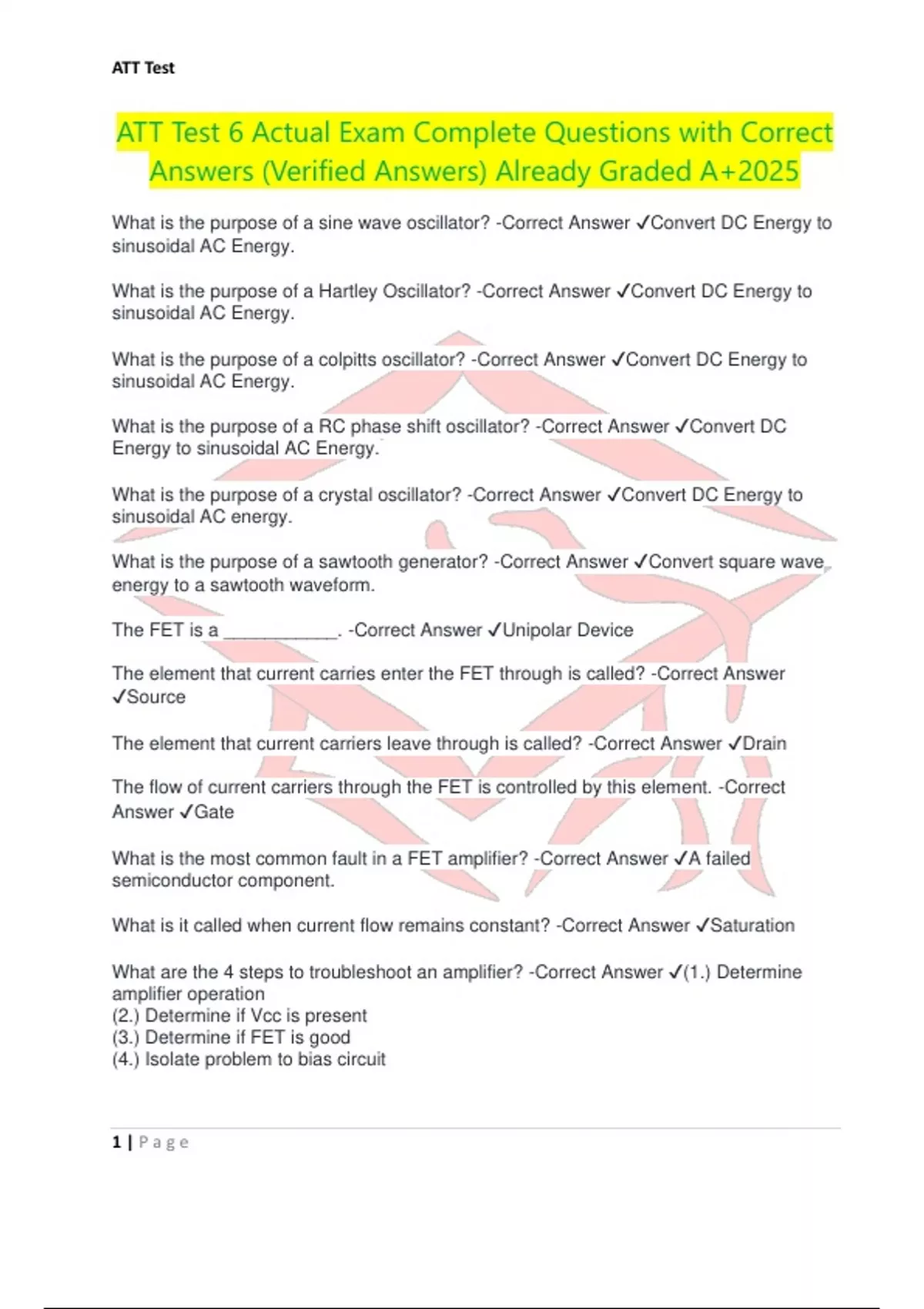

ATT Test 6 Actual Exam Complete Questions with Correct
Answers (Verified Answers) Already Graded A+2025
What is the purpose of a sine wave oscillator? -Correct Answer ✔Convert DC Energy to
sinusoidal AC Energy.
What is the purpose of a Hartley Oscillator? -Correct Answer ✔Convert DC Energy to
sinusoidal AC Energy.
What is the purpose of a colpitts oscillator? -Correct Answer ✔Convert DC Energy to
sinusoidal AC Energy.
What is the purpose of a RC phase shift oscillator? -Correct Answer ✔Convert DC
Energy to sinusoidal AC Energy.
What is the purpose of a crystal oscillator? -Correct Answer ✔Convert DC Energy to
sinusoidal AC energy.
What is the purpose of a sawtooth generator? -Correct Answer ✔Convert square wave
energy to a sawtooth waveform.
The FET is a ___________. -Correct Answer ✔Unipolar Device
The element that current carries enter the FET through is called? -Correct Answer
✔Source
The element that current carriers leave through is called? -Correct Answer ✔Drain
The flow of current carriers through the FET is controlled by this element. -Correct
Answer ✔Gate
What is the most common fault in a FET amplifier? -Correct Answer ✔A failed
semiconductor component.
What is it called when current flow remains constant? -Correct Answer ✔Saturation
What are the 4 steps to troubleshoot an amplifier? -Correct Answer ✔(1.) Determine
amplifier operation
(2.) Determine if Vcc is present
(3.) Determine if FET is good
(4.) Isolate problem to bias circuit
1|Page
, ATT Test
How is a Hartley Oscillator identified? -Correct Answer ✔They have two inductors in the
feedback circuit.
How is frequency determined in a Hartley Oscillators? -Correct Answer ✔The values of
the components in the feedback circuit determine the frequency.
How is a colpitts oscillator identified? -Correct Answer ✔Two capacitors in the feedback
circuit.
How is frequency determined in a colpitts oscillator? -Correct Answer ✔Frequency is
determined by the components in the feedback circuit.
How is an RC Phase Shift oscillator identified? -Correct Answer ✔They have three RC
networks in the feedback circuit.
What is the total phase shift in an RC Phase shift oscillator? -Correct Answer ✔360
degrees.
Q1 is a common emitter amplifier that produces a 180 degree phase shift. Each RC
network produces a phase shift as well.
How is frequency determined with the sawtooth oscillator? -Correct Answer ✔The
frequency of the output is determined by the frequency of the input.
What is the purpose of a blocking oscillator? -Correct Answer ✔They change DC into
short, rectangular pulses that can be used as timing pulses to trigger other circuits.
Blocking Oscillator -Correct Answer ✔Any oscillator that cuts off its own oscillations at a
predetermined time.
Transconductance (gm) -Correct Answer ✔The amount of control that the input voltage
has over the output current.
Gm= Ioutput/Einput
Name the 3 multivibrators whose purpose is to convert DC Energy to square wave
energy. -Correct Answer ✔1. Astable Multivibrator
2. Monostable Multivibrator
3. Bistable Multivibrator
Helps to convert DC energy to square wave energy -Correct Answer ✔Astable
Multivibrator
Converts DC energy to square wave energy -Correct Answer ✔Monostable Multivibrator
2|Page
