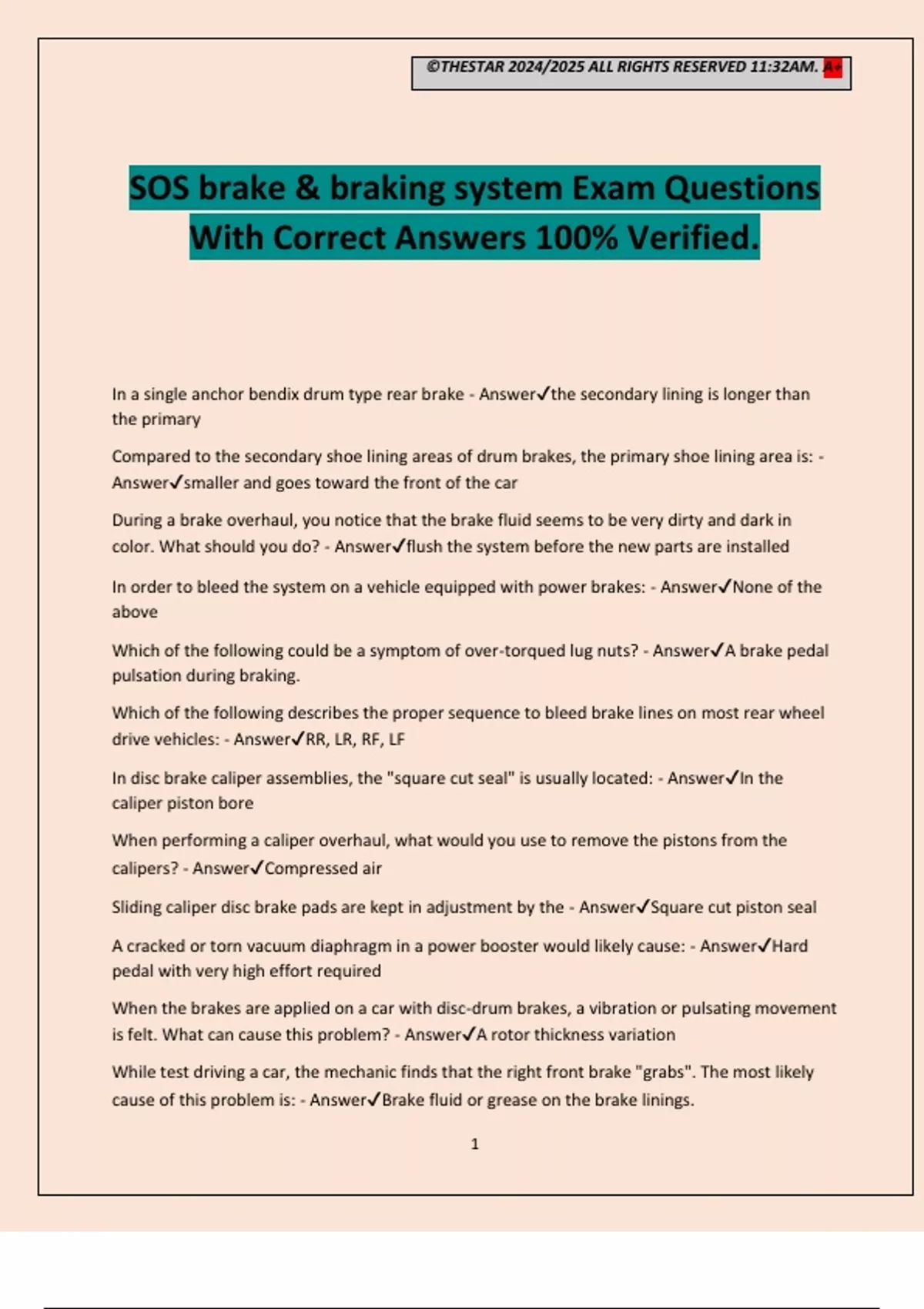

SOS brake & braking system Exam Questions
With Correct Answers 100% Verified.
In a single anchor bendix drum type rear brake - Answer✔the secondary lining is longer than
the primary
Compared to the secondary shoe lining areas of drum brakes, the primary shoe lining area is: -
Answer✔smaller and goes toward the front of the car
During a brake overhaul, you notice that the brake fluid seems to be very dirty and dark in
color. What should you do? - Answer✔flush the system before the new parts are installed
In order to bleed the system on a vehicle equipped with power brakes: - Answer✔None of the
above
Which of the following could be a symptom of over-torqued lug nuts? - Answer✔A brake pedal
pulsation during braking.
Which of the following describes the proper sequence to bleed brake lines on most rear wheel
drive vehicles: - Answer✔RR, LR, RF, LF
In disc brake caliper assemblies, the "square cut seal" is usually located: - Answer✔In the
caliper piston bore
When performing a caliper overhaul, what would you use to remove the pistons from the
calipers? - Answer✔Compressed air
Sliding caliper disc brake pads are kept in adjustment by the - Answer✔Square cut piston seal
A cracked or torn vacuum diaphragm in a power booster would likely cause: - Answer✔Hard
pedal with very high effort required
When the brakes are applied on a car with disc-drum brakes, a vibration or pulsating movement
is felt. What can cause this problem? - Answer✔A rotor thickness variation
While test driving a car, the mechanic finds that the right front brake "grabs". The most likely
cause of this problem is: - Answer✔Brake fluid or grease on the brake linings.
1
, ©THESTAR 2024/2025 ALL RIGHTS RESERVED 11:32AM. A+
During a road test, you find that when normal breaking pressure is applied the pedal slowly
goes to the floor. What is the likely cause of this problem? - Answer✔A leaking master cylinder
primary piston seal.
A rattle is a single piston disc brake assembly which goes away when the brakes are applied is
most likely a result of: - Answer✔Loose pads in the caliper
Which of the following would most likely cause dragging brakes? - Answer✔A defective vehicle
load sensor
With the car standing still, you can hear a squeaking noise when applying the brake pedal
slowly. What could cause this noise? - Answer✔Dry backing plate contact surfaces.
There is a scraping sound coming from one rear brake. The sound stops when the brakes are
applied. What is the likely cause of the problem? - Answer✔A broken shoe hold-down spring or
pin
If a drum brake self-adjuster seizes up, the likely result will be: - Answer✔A low pedal
Which of the following can be used to check for rotor thickness variation? - Answer✔Dial
indicator
On a vehicle with a disc/drum brake system, the rear wheels lock up under hard braking. The
most likely cause is: - Answer✔A defective proportioning valve
After putting a bearing race in a hub, you notice that the new race is loose and can spin in the
hub. What should you do? - Answer✔Replace the hub
When adjusting disc-drum brakes, you should: - Answer✔Adjust the rear brakes after releasing
the parking brakes
What type of rotor surface provides the best braking with new pads? - Answer✔A smooth, flat
surface
Which of the following is a quick way to determine whether the master cylinder is bad? There
are no external leaks in the system. - Answer✔Pump up the brake pedal, then hold it firm. If the
pedal slowly drops to the floor, the master cylinder is bad.
You are rebuilding a master cylinder. What should you use to lubricate the internal parts? -
Answer✔Brake fluid
Which of the following is the most likely cause of low fluid level in the master cylinder? -
Answer✔Worn brake pads and linings
After drum brakes have been applied and released, the brake fluid returns to the master
cylinder reservoir. What causes it to return? - Answer✔Brake shoe return springs
2
SOS brake & braking system Exam Questions
With Correct Answers 100% Verified.
In a single anchor bendix drum type rear brake - Answer✔the secondary lining is longer than
the primary
Compared to the secondary shoe lining areas of drum brakes, the primary shoe lining area is: -
Answer✔smaller and goes toward the front of the car
During a brake overhaul, you notice that the brake fluid seems to be very dirty and dark in
color. What should you do? - Answer✔flush the system before the new parts are installed
In order to bleed the system on a vehicle equipped with power brakes: - Answer✔None of the
above
Which of the following could be a symptom of over-torqued lug nuts? - Answer✔A brake pedal
pulsation during braking.
Which of the following describes the proper sequence to bleed brake lines on most rear wheel
drive vehicles: - Answer✔RR, LR, RF, LF
In disc brake caliper assemblies, the "square cut seal" is usually located: - Answer✔In the
caliper piston bore
When performing a caliper overhaul, what would you use to remove the pistons from the
calipers? - Answer✔Compressed air
Sliding caliper disc brake pads are kept in adjustment by the - Answer✔Square cut piston seal
A cracked or torn vacuum diaphragm in a power booster would likely cause: - Answer✔Hard
pedal with very high effort required
When the brakes are applied on a car with disc-drum brakes, a vibration or pulsating movement
is felt. What can cause this problem? - Answer✔A rotor thickness variation
While test driving a car, the mechanic finds that the right front brake "grabs". The most likely
cause of this problem is: - Answer✔Brake fluid or grease on the brake linings.
1
, ©THESTAR 2024/2025 ALL RIGHTS RESERVED 11:32AM. A+
During a road test, you find that when normal breaking pressure is applied the pedal slowly
goes to the floor. What is the likely cause of this problem? - Answer✔A leaking master cylinder
primary piston seal.
A rattle is a single piston disc brake assembly which goes away when the brakes are applied is
most likely a result of: - Answer✔Loose pads in the caliper
Which of the following would most likely cause dragging brakes? - Answer✔A defective vehicle
load sensor
With the car standing still, you can hear a squeaking noise when applying the brake pedal
slowly. What could cause this noise? - Answer✔Dry backing plate contact surfaces.
There is a scraping sound coming from one rear brake. The sound stops when the brakes are
applied. What is the likely cause of the problem? - Answer✔A broken shoe hold-down spring or
pin
If a drum brake self-adjuster seizes up, the likely result will be: - Answer✔A low pedal
Which of the following can be used to check for rotor thickness variation? - Answer✔Dial
indicator
On a vehicle with a disc/drum brake system, the rear wheels lock up under hard braking. The
most likely cause is: - Answer✔A defective proportioning valve
After putting a bearing race in a hub, you notice that the new race is loose and can spin in the
hub. What should you do? - Answer✔Replace the hub
When adjusting disc-drum brakes, you should: - Answer✔Adjust the rear brakes after releasing
the parking brakes
What type of rotor surface provides the best braking with new pads? - Answer✔A smooth, flat
surface
Which of the following is a quick way to determine whether the master cylinder is bad? There
are no external leaks in the system. - Answer✔Pump up the brake pedal, then hold it firm. If the
pedal slowly drops to the floor, the master cylinder is bad.
You are rebuilding a master cylinder. What should you use to lubricate the internal parts? -
Answer✔Brake fluid
Which of the following is the most likely cause of low fluid level in the master cylinder? -
Answer✔Worn brake pads and linings
After drum brakes have been applied and released, the brake fluid returns to the master
cylinder reservoir. What causes it to return? - Answer✔Brake shoe return springs
2
