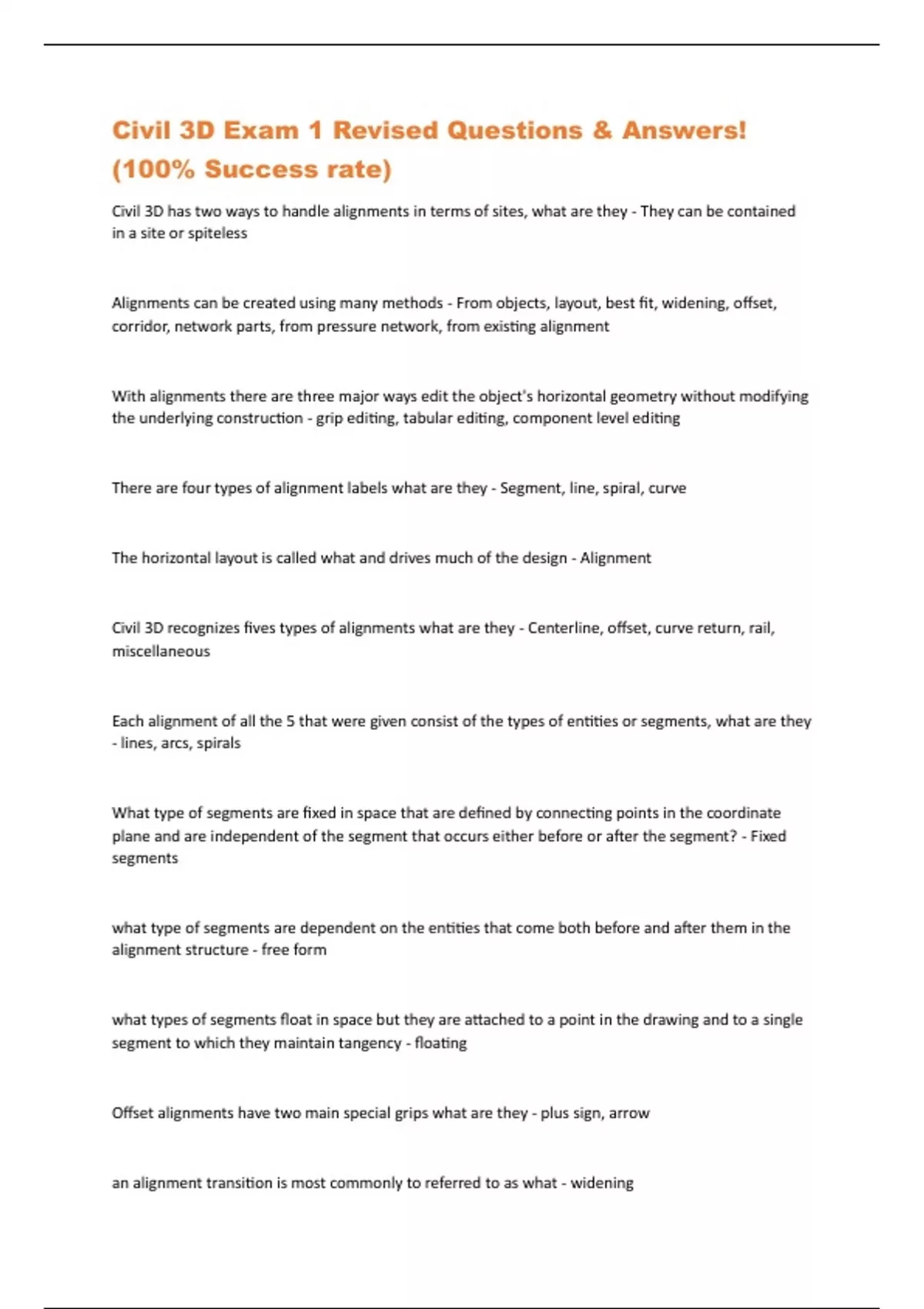

Civil 3D Exam 1 Revised Questions & Answers!
(100% Success rate)
Civil 3D has two ways to handle alignments in terms of sites, what are they - They can be contained
in a site or spiteless
Alignments can be created using many methods - From objects, layout, best fit, widening, offset,
corridor, network parts, from pressure network, from existing alignment
With alignments there are three major ways edit the object's horizontal geometry without modifying
the underlying construction - grip editing, tabular editing, component level editing
There are four types of alignment labels what are they - Segment, line, spiral, curve
The horizontal layout is called what and drives much of the design - Alignment
Civil 3D recognizes fives types of alignments what are they - Centerline, offset, curve return, rail,
miscellaneous
Each alignment of all the 5 that were given consist of the types of entities or segments, what are they
- lines, arcs, spirals
What type of segments are fixed in space that are defined by connecting points in the coordinate
plane and are independent of the segment that occurs either before or after the segment? - Fixed
segments
what type of segments are dependent on the entities that come both before and after them in the
alignment structure - free form
what types of segments float in space but they are attached to a point in the drawing and to a single
segment to which they maintain tangency - floating
Offset alignments have two main special grips what are they - plus sign, arrow
an alignment transition is most commonly to referred to as what - widening
(100% Success rate)
Civil 3D has two ways to handle alignments in terms of sites, what are they - They can be contained
in a site or spiteless
Alignments can be created using many methods - From objects, layout, best fit, widening, offset,
corridor, network parts, from pressure network, from existing alignment
With alignments there are three major ways edit the object's horizontal geometry without modifying
the underlying construction - grip editing, tabular editing, component level editing
There are four types of alignment labels what are they - Segment, line, spiral, curve
The horizontal layout is called what and drives much of the design - Alignment
Civil 3D recognizes fives types of alignments what are they - Centerline, offset, curve return, rail,
miscellaneous
Each alignment of all the 5 that were given consist of the types of entities or segments, what are they
- lines, arcs, spirals
What type of segments are fixed in space that are defined by connecting points in the coordinate
plane and are independent of the segment that occurs either before or after the segment? - Fixed
segments
what type of segments are dependent on the entities that come both before and after them in the
alignment structure - free form
what types of segments float in space but they are attached to a point in the drawing and to a single
segment to which they maintain tangency - floating
Offset alignments have two main special grips what are they - plus sign, arrow
an alignment transition is most commonly to referred to as what - widening
