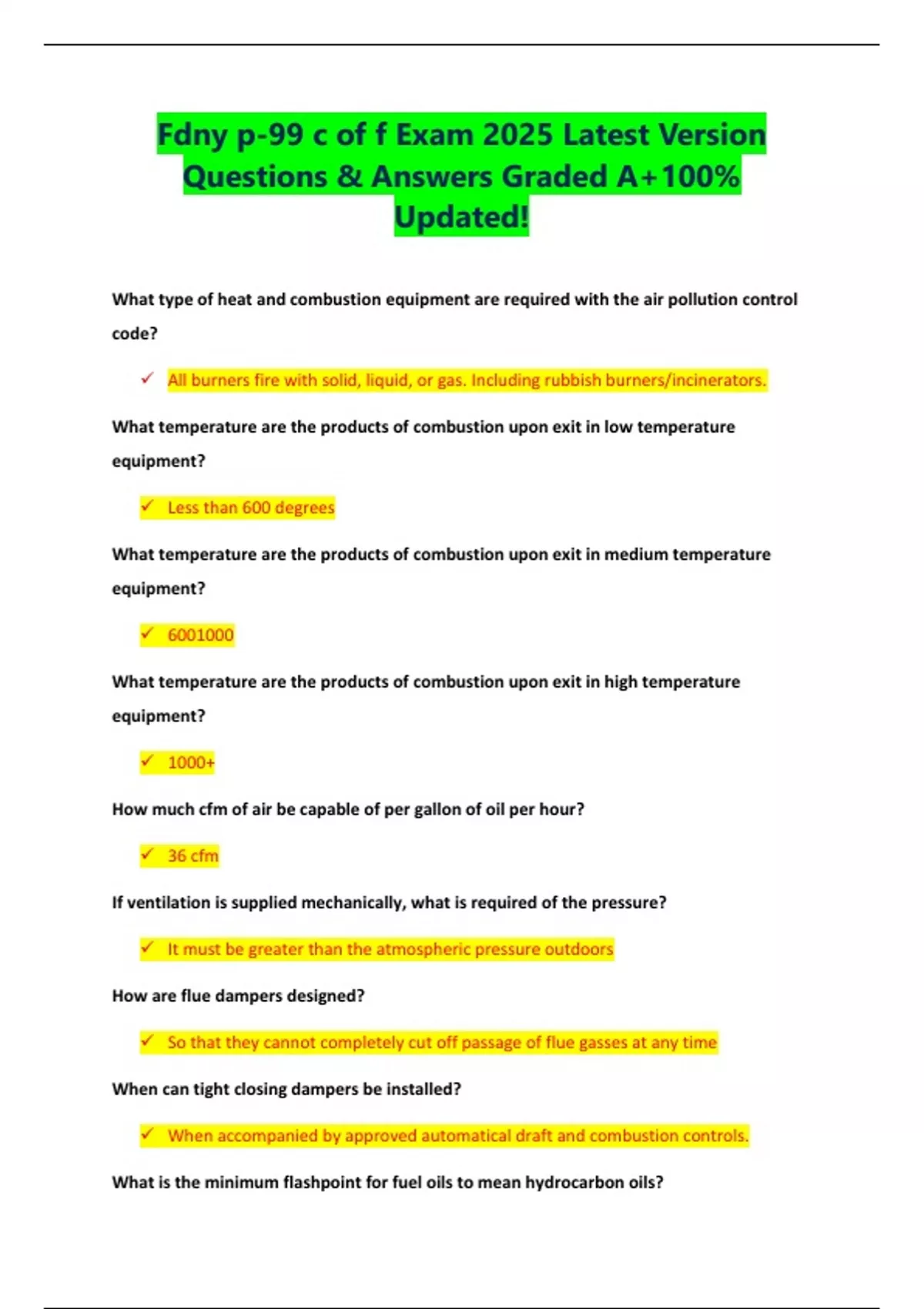

Fdny p-99 c of f Exam 2025 Latest Version
Questions & Answers Graded A+100%
Updated!
What type of heat and combustion equipment are required with the air pollution control
code?
✓ All burners fire with solid, liquid, or gas. Including rubbish burners/incinerators.
What temperature are the products of combustion upon exit in low temperature
equipment?
✓ Less than 600 degrees
What temperature are the products of combustion upon exit in medium temperature
equipment?
✓ 6001000
What temperature are the products of combustion upon exit in high temperature
equipment?
✓ 1000+
How much cfm of air be capable of per gallon of oil per hour?
✓ 36 cfm
If ventilation is supplied mechanically, what is required of the pressure?
✓ It must be greater than the atmospheric pressure outdoors
How are flue dampers designed?
✓ So that they cannot completely cut off passage of flue gasses at any time
When can tight closing dampers be installed?
✓ When accompanied by approved automatical draft and combustion controls.
What is the minimum flashpoint for fuel oils to mean hydrocarbon oils?
, ✓ 100 degrees
What type of oils should be used in low pressure burners?
✓ No. 1(range oil), no. 2(diesel oil), no. 4, no. 5, no. 6
What oil is prohibited?
✓ Crank case refuse oil
What is required of the size of overflow pipes?
✓ They should at least be the same size as supply pipes
Where should a relief valve be installed?
✓ In the discharge line between the pump and the first shut off valve
How is oil heated in storage tanks?
✓ Coils using low pressure hot water/steam or approved electric heaters.
Where are shut off valves required?
✓ One at the supply line at the tank and and one at the supply line at the burner
What stops the flow of oil?
✓ Remote control
Where is the remote control located?
✓ As close to the entrance of the boiler room as practical or immediately inside as long
as it's accessible at all times. On tank if 60 gal or less
What are the 4 safety controls implemented?
✓ Oil temperature control, ignition, stack/combustion control, and high pressure and
temperature control.
Is a chimney required to install a burner?
✓ Yes
What temperature is no. 6 oil heated to in the tank?
