Electrical Theory lvl 1 Module 4 Exam Questions and Answers 100% Solved The voltage drop across the parallel resistors shown in the figure is? - 17.3 volts What is the total resistance of the circuit in the figure? - 24.17 ohms How many amps of current would flow through the circuit in the figure? - 4.14 What is the total resistance of the three resistors in parallel with values of 2 ohms, 8 ohms, and 14 ohms? - 1.44 ohms What is the resistance of a light bulb that uses 15 watts of power when placed across a 15-volt battery? - 15 ohms What is the total resistance of three resistors in parallel with values of 4 ohms, 10 ohms, and 25 ohms? - 2.56 ohms

Content preview

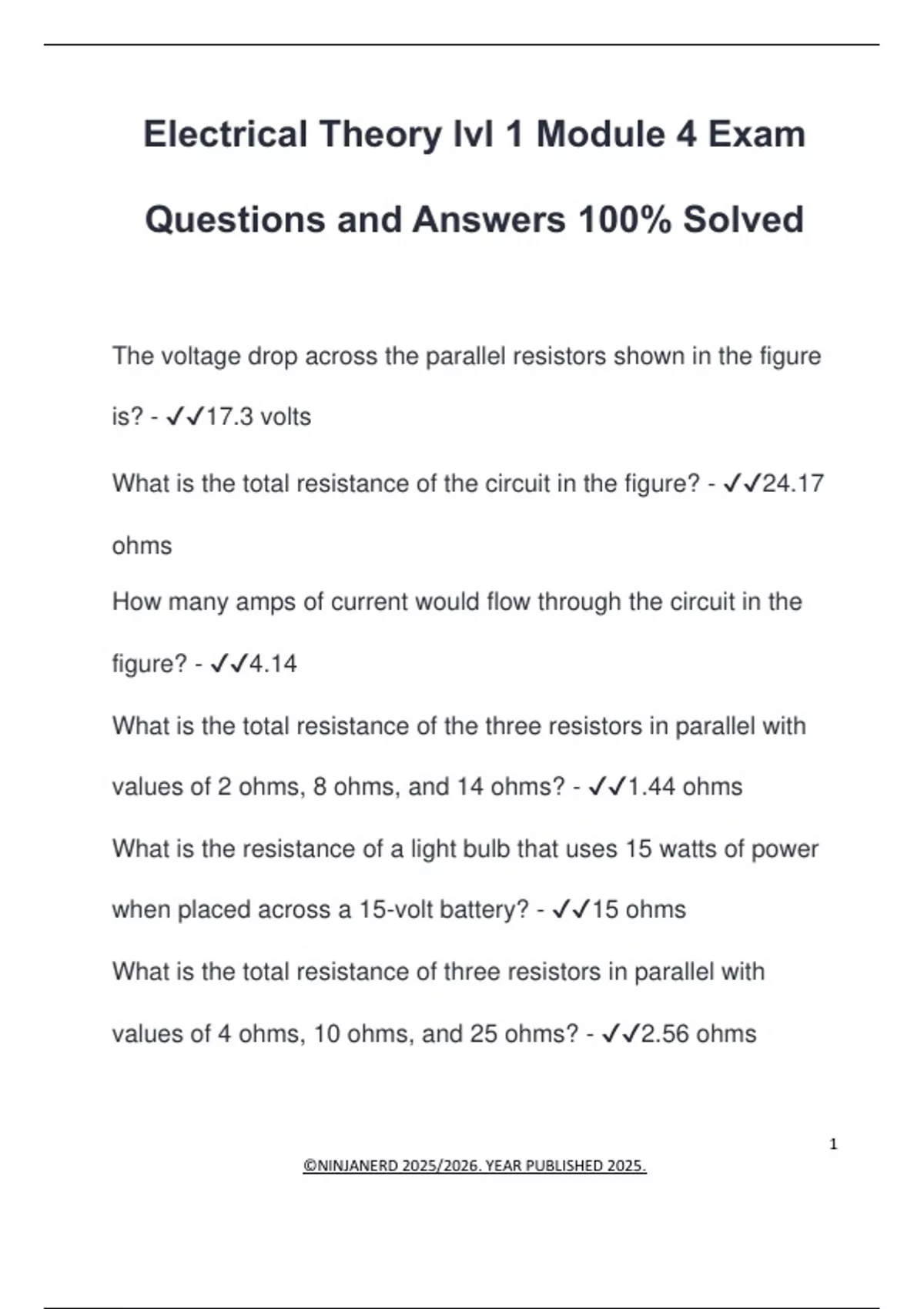

Electrical Theory lvl 1 Module 4 Exam

Questions and Answers 100% Solved


The voltage drop across the parallel resistors shown in the figure

is? - ✔✔17.3 volts

What is the total resistance of the circuit in the figure? - ✔✔24.17

ohms

How many amps of current would flow through the circuit in the

figure? - ✔✔4.14

What is the total resistance of the three resistors in parallel with

values of 2 ohms, 8 ohms, and 14 ohms? - ✔✔1.44 ohms

What is the resistance of a light bulb that uses 15 watts of power

when placed across a 15-volt battery? - ✔✔15 ohms

What is the total resistance of three resistors in parallel with

values of 4 ohms, 10 ohms, and 25 ohms? - ✔✔2.56 ohms



1
©NINJANERD 2025/2026. YEAR PUBLISHED 2025.
