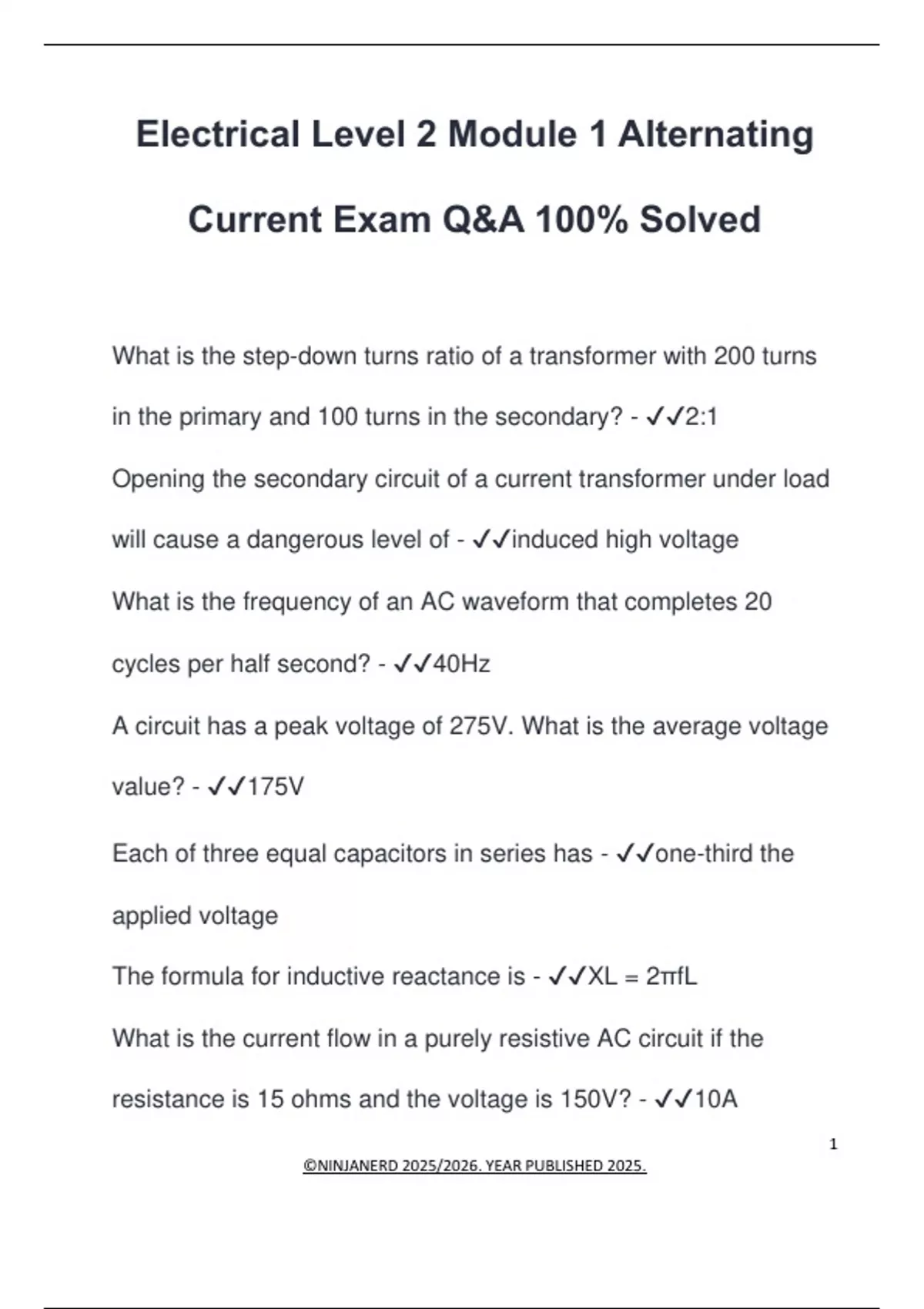

Document preview thumbnail
Preview 1 out of 4 pages
Exam (elaborations)

Electrical Level 2 Module 1 Alternating Current Exam Q&A 100% Solved

0.0
(0 reviews)
- sold
4 pages
2024/2025 Written for academic year
Institution Electrical 2
Course Electrical 2
Document preview thumbnail
Preview 1 out of 4 pages

Electrical Level 2 Module 1 Alternating Current Exam Q&A 100% Solved What is the step-down turns ratio of a transformer with 200 turns in the primary and 100 turns in the secondary? - 2:1 Opening the secondary circuit of a current transformer under load will cause a dangerous level of - induced high voltage What is the frequency of an AC waveform that completes 20 cycles per half second? - 40Hz A circuit has a peak voltage of 275V. What is the average voltage value? - 175V Each of three equal capacitors in series has - one-third the applied voltage The formula for inductive reactance is - XL = 2πfL What is the current flow in a purely resistive AC circuit if the resistance is 15 ohms and the voltage is 150V? - 10A

Content preview

Electrical Level 2 Module 1 Alternating

Current Exam Q&A 100% Solved


What is the step-down turns ratio of a transformer with 200 turns

in the primary and 100 turns in the secondary? - ✔✔2:1

Opening the secondary circuit of a current transformer under load

will cause a dangerous level of - ✔✔induced high voltage

What is the frequency of an AC waveform that completes 20

cycles per half second? - ✔✔40Hz

A circuit has a peak voltage of 275V. What is the average voltage

value? - ✔✔175V

Each of three equal capacitors in series has - ✔✔one-third the

applied voltage

The formula for inductive reactance is - ✔✔XL = 2πfL

What is the current flow in a purely resistive AC circuit if the

resistance is 15 ohms and the voltage is 150V? - ✔✔10A
1
©NINJANERD 2025/2026. YEAR PUBLISHED 2025.
