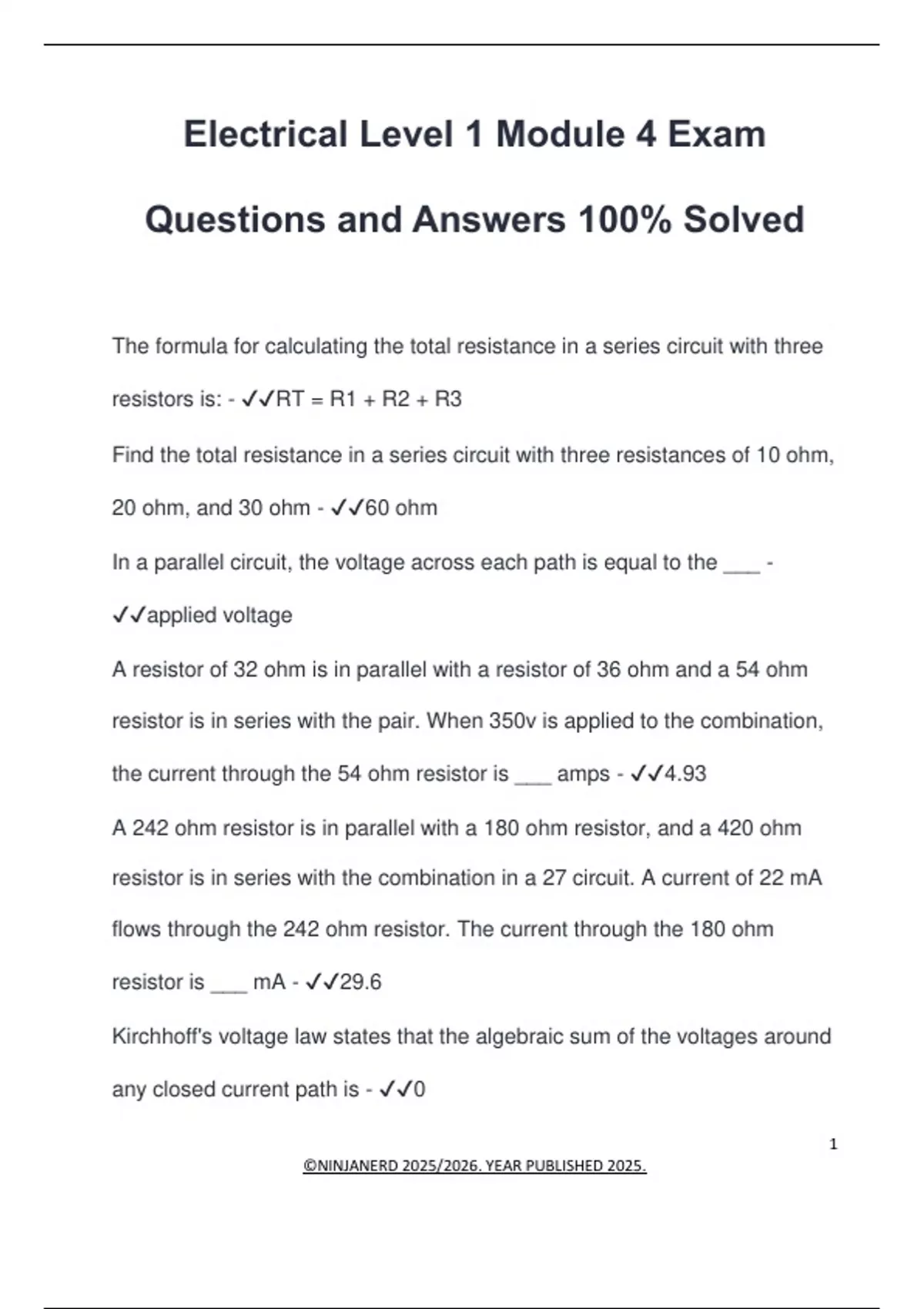

Electrical Level 1 Module 4 Exam

Questions and Answers 100% Solved


The formula for calculating the total resistance in a series circuit with three

resistors is: - ✔✔RT = R1 + R2 + R3

Find the total resistance in a series circuit with three resistances of 10 ohm,

20 ohm, and 30 ohm - ✔✔60 ohm

In a parallel circuit, the voltage across each path is equal to the ___ -

✔✔applied voltage

A resistor of 32 ohm is in parallel with a resistor of 36 ohm and a 54 ohm

resistor is in series with the pair. When 350v is applied to the combination,

the current through the 54 ohm resistor is ___ amps - ✔✔4.93

A 242 ohm resistor is in parallel with a 180 ohm resistor, and a 420 ohm

resistor is in series with the combination in a 27 circuit. A current of 22 mA

flows through the 242 ohm resistor. The current through the 180 ohm

resistor is ___ mA - ✔✔29.6

Kirchhoff's voltage law states that the algebraic sum of the voltages around

any closed current path is - ✔✔0
