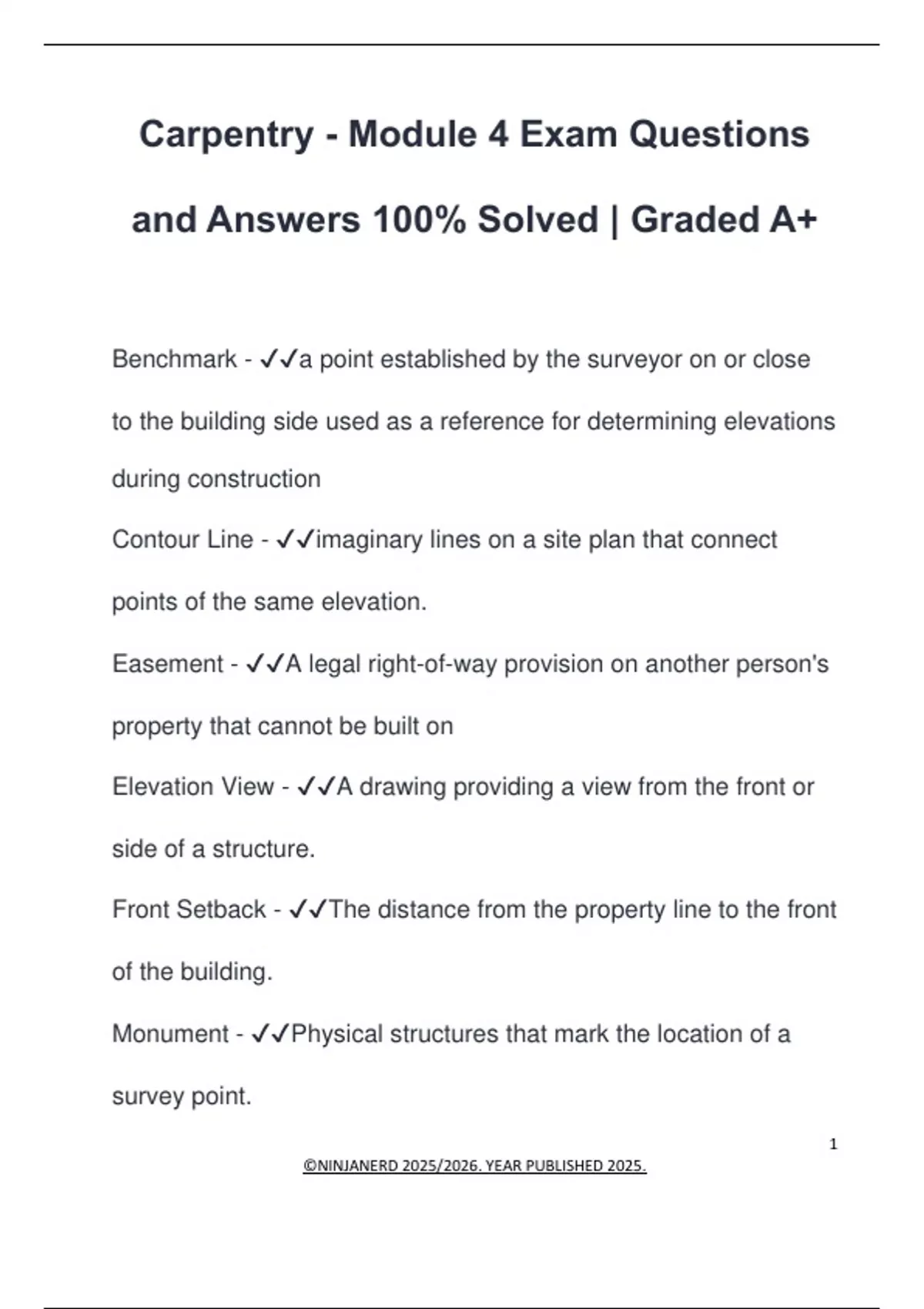

Carpentry - Module 4 Exam Questions
and Answers 100% Solved | Graded A+
Benchmark - ✔✔a point established by the surveyor on or close
to the building side used as a reference for determining elevations
during construction
Contour Line - ✔✔imaginary lines on a site plan that connect
points of the same elevation.
Easement - ✔✔A legal right-of-way provision on another person's
property that cannot be built on
Elevation View - ✔✔A drawing providing a view from the front or
side of a structure.
Front Setback - ✔✔The distance from the property line to the front
of the building.
Monument - ✔✔Physical structures that mark the location of a
survey point.
1
©NINJANERD 2025/2026. YEAR PUBLISHED 2025.
, Nominal Size - ✔✔approximate or rough size by which lumber,
CMUs, etc are commonly known and sold as. Normally slightly
larger than actual size.
Plan View - ✔✔A drawing that represents a view looking down on
an object.
Property Line - ✔✔the recorded legal boundaries of a piece of
property.
Riser Diagram - ✔✔A schematic drawing that depicts the layout,
components, and connections of a piping system.
Topographical Survey - ✔✔An accurate and detailed drawing of a
place or region that depicts all the natural and man-made physical
features, showing their relative positions and elevations.
Hidden Line - ✔✔A line type that represents an edge that is not
directly visible.
Cutting Plane Line - ✔✔Used to indicate a plane or planes in
which a sectional view is taken.
2
©NINJANERD 2025/2026. YEAR PUBLISHED 2025.
