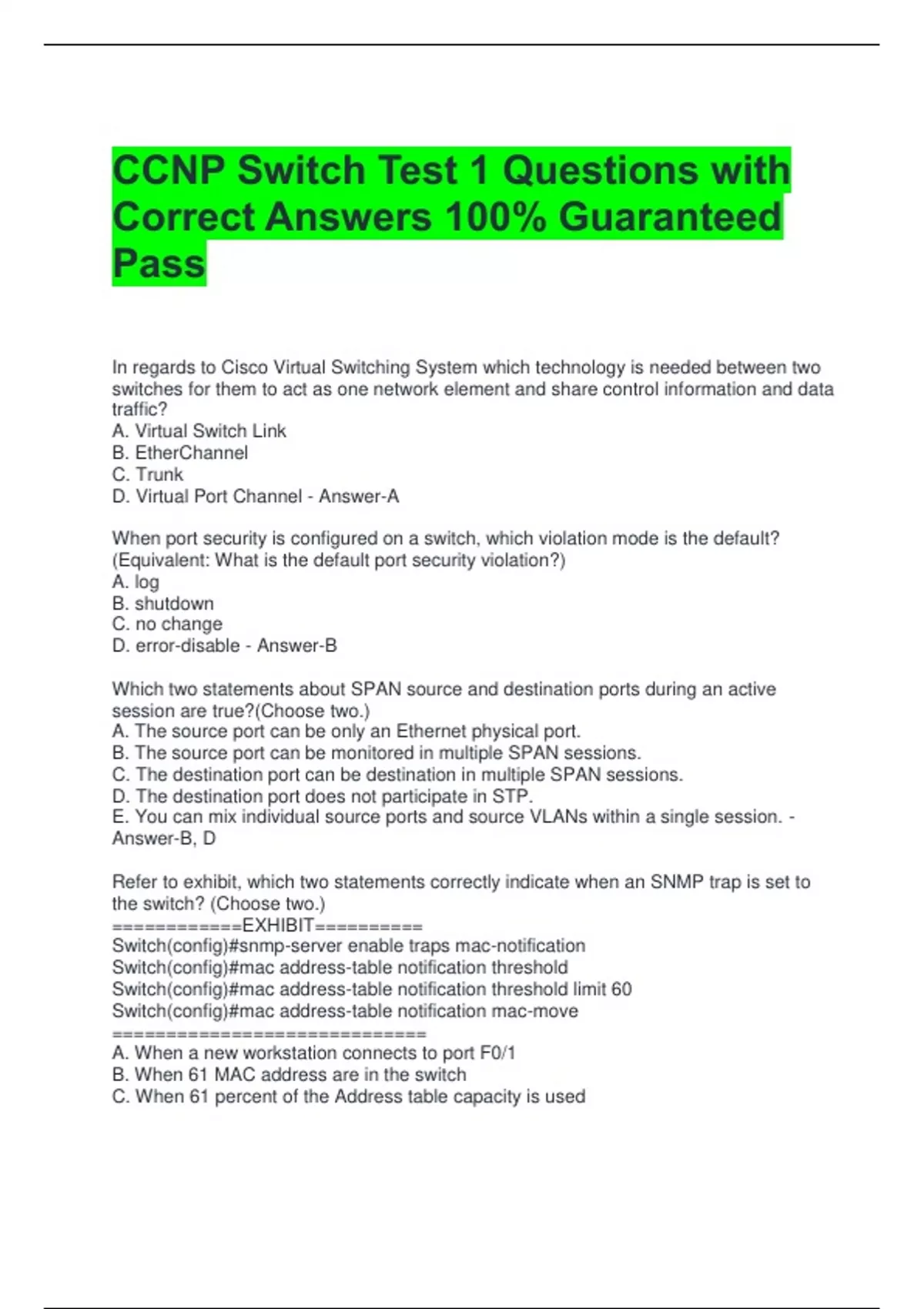

CCNP Switch Test 1 Questions with
Correct Answers 100% Guaranteed
Pass
In regards to Cisco Virtual Switching System which technology is needed between two
switches for them to act as one network element and share control information and data
traffic?
A. Virtual Switch Link
B. EtherChannel
C. Trunk
D. Virtual Port Channel - Answer-A
When port security is configured on a switch, which violation mode is the default?
(Equivalent: What is the default port security violation?)
A. log
B. shutdown
C. no change
D. error-disable - Answer-B
Which two statements about SPAN source and destination ports during an active
session are true?(Choose two.)
A. The source port can be only an Ethernet physical port.
B. The source port can be monitored in multiple SPAN sessions.
C. The destination port can be destination in multiple SPAN sessions.
D. The destination port does not participate in STP.
E. You can mix individual source ports and source VLANs within a single session. -
Answer-B, D
Refer to exhibit, which two statements correctly indicate when an SNMP trap is set to
the switch? (Choose two.)
============EXHIBIT==========
Switch(config)#snmp-server enable traps mac-notification
Switch(config)#mac address-table notification threshold
Switch(config)#mac address-table notification threshold limit 60
Switch(config)#mac address-table notification mac-move
=============================
A. When a new workstation connects to port F0/1
B. When 61 MAC address are in the switch
C. When 61 percent of the Address table capacity is used
, D. When the switch loses power and reboots
E. When the phone previously on Fa0/2 is now connect to Fa0/5 - Answer-C, E
Refer to the exhibit. What is the effect of the given configuration?
============EXHIBIT==========
spanning-tree extend system-id
spanning-tree mode pvst+
spanning-treebackbonefast
=============================
A. It used extended VLAN
B. It used to protect Root switch
C. It enables the switch to set dynamic extended System IDs.
D. NA - Answer-C
After you connected a host to switch port G0/1, the port is error disabled. Which
command can you enter to
determine the reason?
A. show interfaces g0/1 status
B. show run interface g0/1
C. show ip int brief
D. show log - Answer-D
When EtherChannel guard is enabled and a misconfiguration is detected on a port, how
does the port respond?
A. channel gets disabled
B. Goes into err-disable
C. shutdown
D. Works normal - Answer-B
Which switch is chosen as the stack master during a stack master election
A. Master member is selected based on Higher ID's priority
B. Master member is selected based on Higher Member's priority
C. Master member is selected based on Lower ID's priority
D. Master member is selected based on Lower Member's priority - Answer-B
Question about trunk configuration int fa0/10
============EXHIBIT==========
Switch(config)#int fa0/10
Switch(config-if)#switchport trunk allowed vlan 34,36,519
Switch(config-if)#switchport mode trunk
Switch(config-if)#exit
Switch#show vlan
VLAN Name Status Ports
— ——————-?—— ———————
1 default active Fa0/1, Fa0/3, Fa0/3, Fa0/10
Switch#show interface trunk
