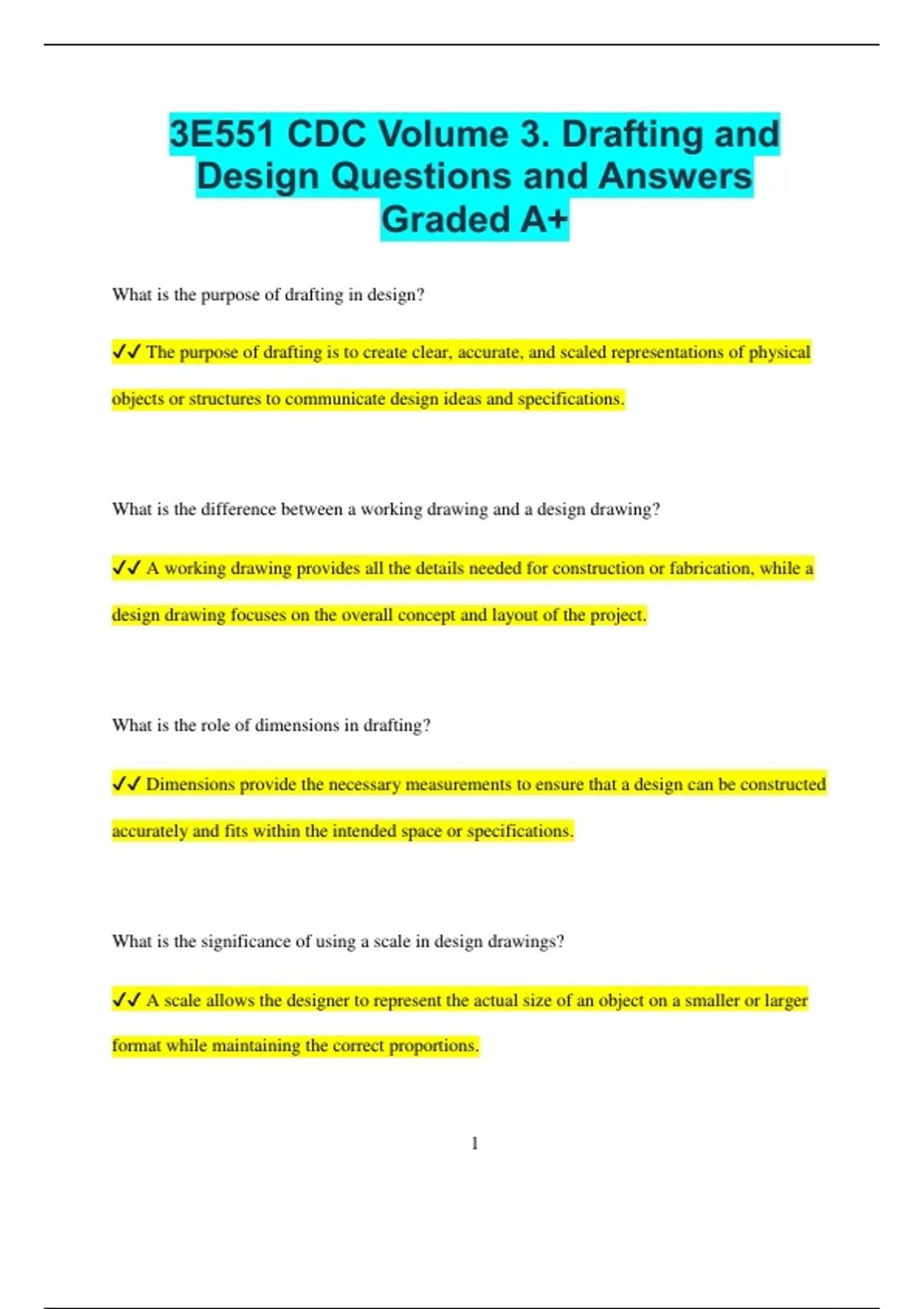

What is the purpose of drafting in design?
✔✔ The purpose of drafting is to create clear, accurate, and scaled representations of physical
objects or structures to communicate design ideas and specifications.
What is the difference between a working drawing and a design drawing?
✔✔ A working drawing provides all the details needed for construction or fabrication, while a
design drawing focuses on the overall concept and layout of the project.
What is the role of dimensions in drafting?
✔✔ Dimensions provide the necessary measurements to ensure that a design can be constructed
accurately and fits within the intended space or specifications.
What is the significance of using a scale in design drawings?
✔✔ A scale allows the designer to represent the actual size of an object on a smaller or larger
format while maintaining the correct proportions.
1
,What does the term “tolerance” refer to in drafting?
✔✔ Tolerance refers to the allowable variation in the dimensions or shape of a part, ensuring
that it can be produced within certain limits without affecting functionality.
Why is it important to use standard symbols in drafting?
✔✔ Standard symbols ensure consistency, clarity, and understanding of the drawings across
different teams, industries, and disciplines.
What is the purpose of a title block on a drawing?
✔✔ A title block provides essential information about the drawing, including the project name,
drawing number, scale, date, and the drafter’s name, among other details.
How is a section view different from an elevation view?
✔✔ A section view shows an internal cut-through of a part or structure, while an elevation view
shows the external appearance from a particular viewpoint.
What is the purpose of a bill of materials in drafting?
✔✔ A bill of materials lists all the materials, components, and parts needed to complete a
project, helping with ordering and cost estimation.
2
, How do orthographic projections differ from isometric projections?
✔✔ Orthographic projections display a 2D representation of an object from different angles (top,
front, side), while isometric projections provide a 3D view with all axes at equal angles.
Why is it important to include notes on a design drawing?
✔✔ Notes provide additional information, clarifications, or special instructions that might not be
evident from the drawing alone, ensuring proper understanding and execution.
What is the purpose of a revision block in drafting?
✔✔ A revision block tracks changes made to a drawing, including the revision number, date,
description, and the individual who made the change.
How is a leader line used in a drawing?
✔✔ A leader line is used to point to a specific part of the drawing and direct attention to a note,
dimension, or label.
What is the significance of a scale factor in drafting?
