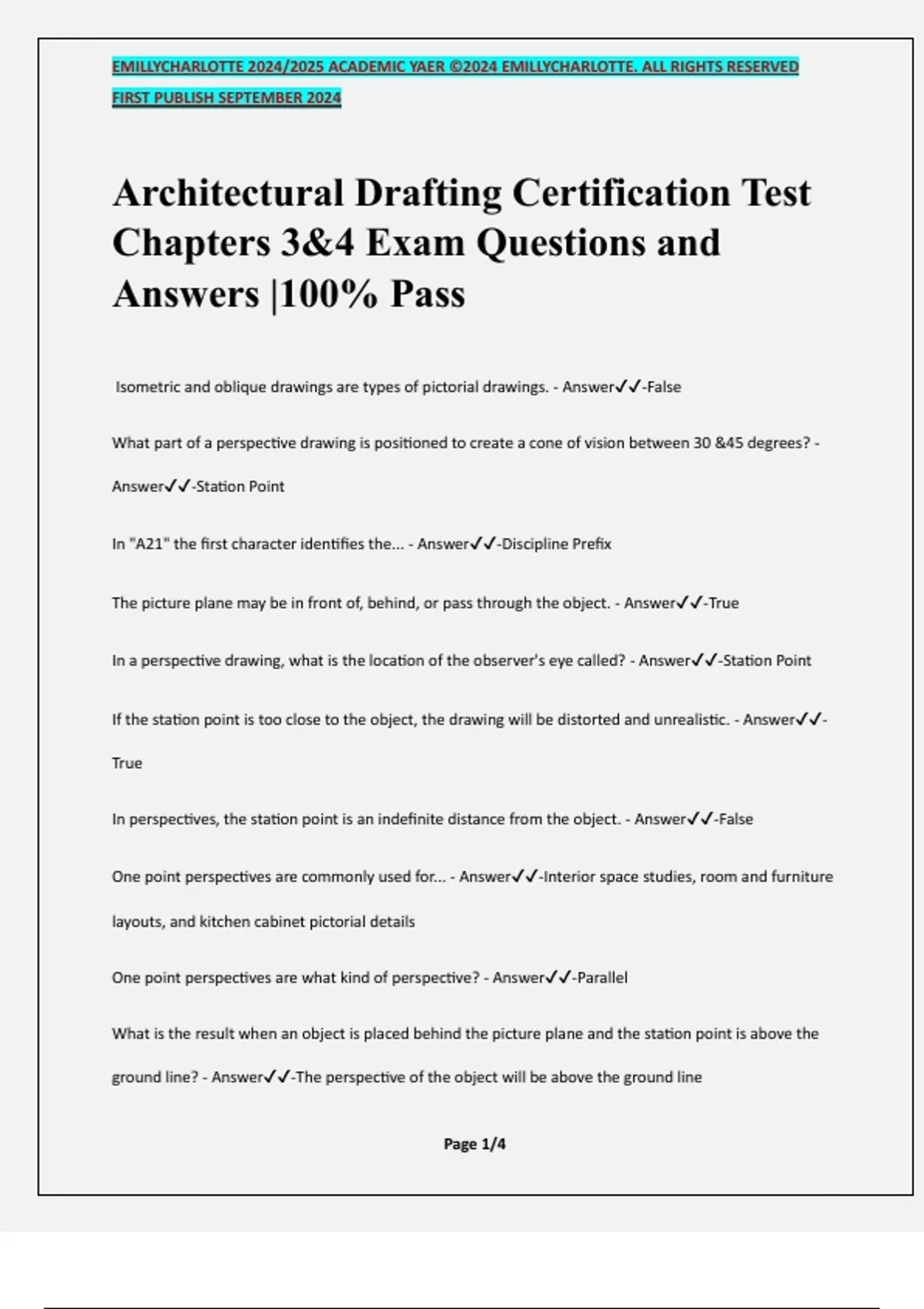

Architectural Drafting Certification Test
Chapters 3&4 Exam Questions and
Answers |100% Pass

Isometric and oblique drawings are types of pictorial drawings. - Answer✔✔-False


What part of a perspective drawing is positioned to create a cone of vision between 30 &45 degrees? -

Answer✔✔-Station Point


In "A21" the first character identifies the... - Answer✔✔-Discipline Prefix


The picture plane may be in front of, behind, or pass through the object. - Answer✔✔-True


In a perspective drawing, what is the location of the observer's eye called? - Answer✔✔-Station Point


If the station point is too close to the object, the drawing will be distorted and unrealistic. - Answer✔✔-

True


In perspectives, the station point is an indefinite distance from the object. - Answer✔✔-False


One point perspectives are commonly used for... - Answer✔✔-Interior space studies, room and furniture

layouts, and kitchen cabinet pictorial details


One point perspectives are what kind of perspective? - Answer✔✔-Parallel


What is the result when an object is placed behind the picture plane and the station point is above the

ground line? - Answer✔✔-The perspective of the object will be above the ground line
