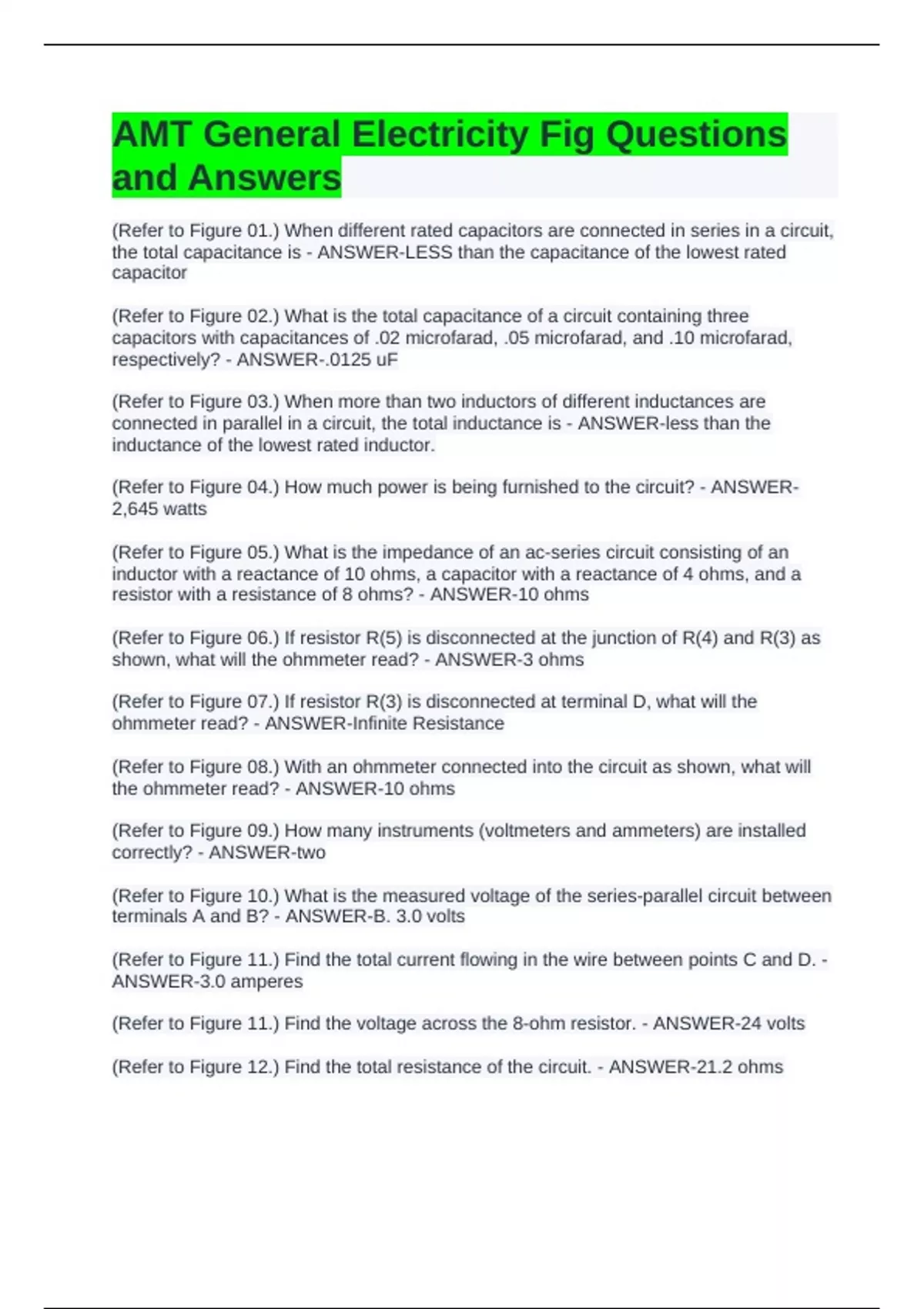

AMT General Electricity Fig Questions
and Answers
(Refer to Figure 01.) When different rated capacitors are connected in series in a circuit,
the total capacitance is - ANSWER-LESS than the capacitance of the lowest rated
capacitor
(Refer to Figure 02.) What is the total capacitance of a circuit containing three
capacitors with capacitances of .02 microfarad, .05 microfarad, and .10 microfarad,
respectively? - ANSWER-.0125 uF
(Refer to Figure 03.) When more than two inductors of different inductances are
connected in parallel in a circuit, the total inductance is - ANSWER-less than the
inductance of the lowest rated inductor.
(Refer to Figure 04.) How much power is being furnished to the circuit? - ANSWER-
2,645 watts
(Refer to Figure 05.) What is the impedance of an ac-series circuit consisting of an
inductor with a reactance of 10 ohms, a capacitor with a reactance of 4 ohms, and a
resistor with a resistance of 8 ohms? - ANSWER-10 ohms
(Refer to Figure 06.) If resistor R(5) is disconnected at the junction of R(4) and R(3) as
shown, what will the ohmmeter read? - ANSWER-3 ohms
(Refer to Figure 07.) If resistor R(3) is disconnected at terminal D, what will the
ohmmeter read? - ANSWER-Infinite Resistance
(Refer to Figure 08.) With an ohmmeter connected into the circuit as shown, what will
the ohmmeter read? - ANSWER-10 ohms
(Refer to Figure 09.) How many instruments (voltmeters and ammeters) are installed
correctly? - ANSWER-two
(Refer to Figure 10.) What is the measured voltage of the series-parallel circuit between
terminals A and B? - ANSWER-B. 3.0 volts
(Refer to Figure 11.) Find the total current flowing in the wire between points C and D. -
ANSWER-3.0 amperes
(Refer to Figure 11.) Find the voltage across the 8-ohm resistor. - ANSWER-24 volts
(Refer to Figure 12.) Find the total resistance of the circuit. - ANSWER-21.2 ohms
