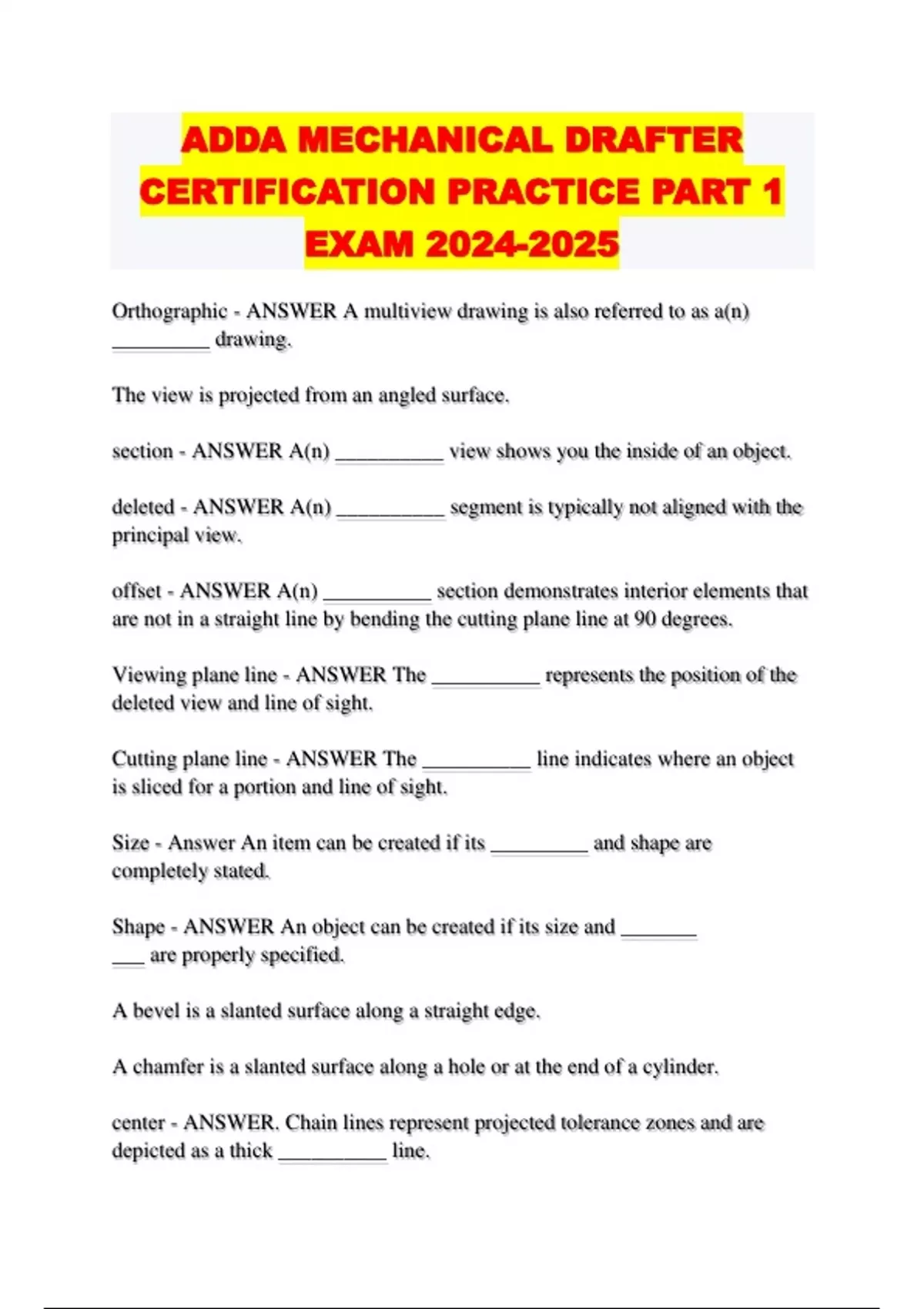

ADDA MECHANICAL DRAFTER CERTIFICATION PRACTICE PART 1 EXAM ...

Content preview

ADDA MECHANICAL DRAFTER
CERTIFICATION PRACTICE PART 1
EXAM 2024-2025
Orthographic - ANSWER A multiview drawing is also referred to as a(n)
_________ drawing.

The view is projected from an angled surface.

section - ANSWER A(n) __________ view shows you the inside of an object.

deleted - ANSWER A(n) __________ segment is typically not aligned with the
principal view.

offset - ANSWER A(n) __________ section demonstrates interior elements that
are not in a straight line by bending the cutting plane line at 90 degrees.

Viewing plane line - ANSWER The __________ represents the position of the
deleted view and line of sight.

Cutting plane line - ANSWER The __________ line indicates where an object
is sliced for a portion and line of sight.

Size - Answer An item can be created if its _________ and shape are
completely stated.

Shape - ANSWER An object can be created if its size and _______
___ are properly specified.

A bevel is a slanted surface along a straight edge.

A chamfer is a slanted surface along a hole or at the end of a cylinder.

center - ANSWER. Chain lines represent projected tolerance zones and are
depicted as a thick __________ line.
