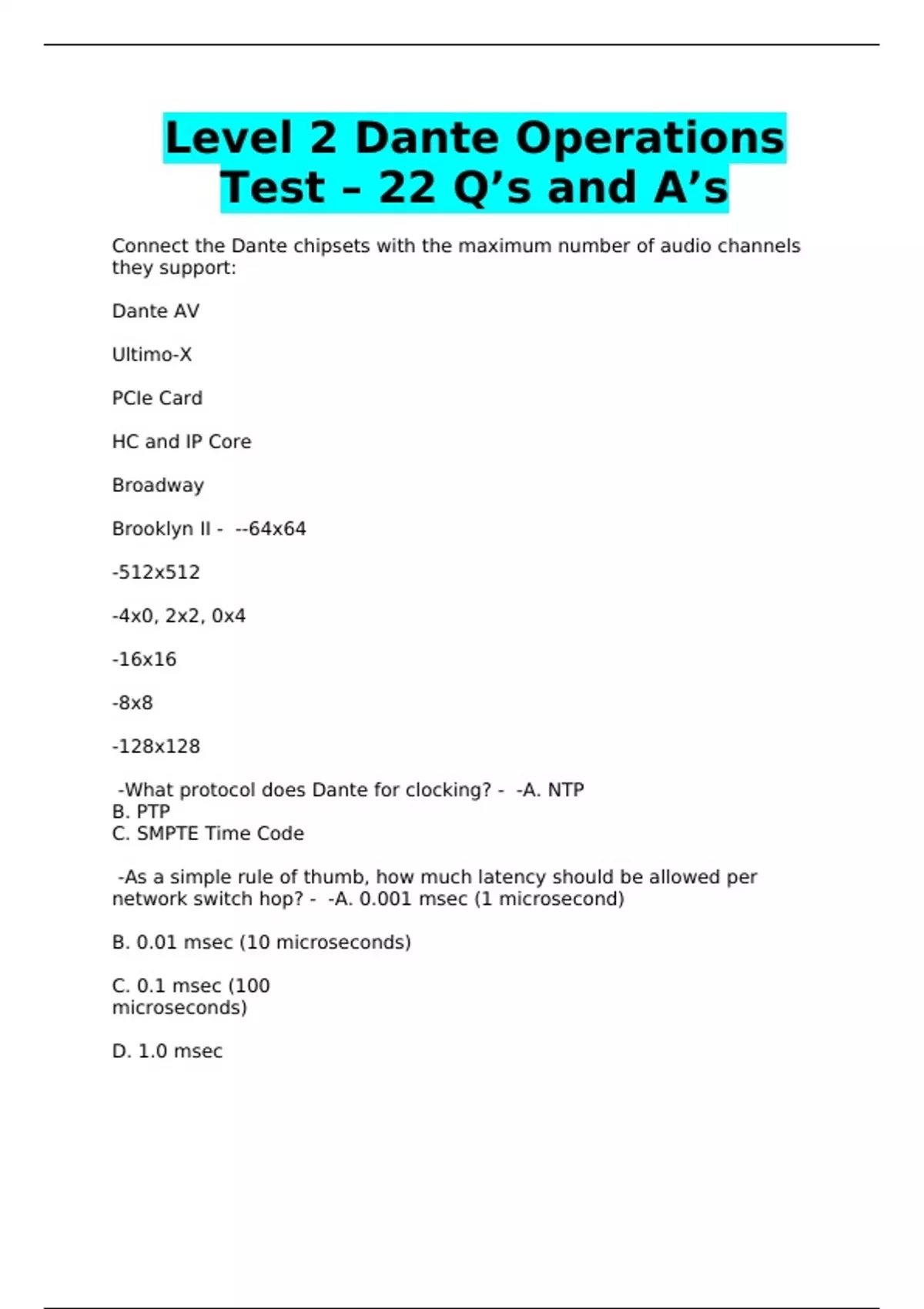

Level 2 Dante Operations
Test – 22 Q’s and A’s
Connect the Dante chipsets with the maximum number of audio channels
they support:
Dante AV
Ultimo-X
PCIe Card
HC and IP Core
Broadway
Brooklyn II - --64x64
-512x512
-4x0, 2x2, 0x4
-16x16
-8x8
-128x128
-What protocol does Dante for clocking? - -A. NTP
B. PTP
C. SMPTE Time Code
-As a simple rule of thumb, how much latency should be allowed per
network switch hop? - -A. 0.001 msec (1 microsecond)
B. 0.01 msec (10 microseconds)
C. 0.1 msec (100
microseconds)
D. 1.0 msec
, -If a transmitting device runs out of flows, what should you do to enable all
subscriptions to be made? - -A. Get a managed switch with Packet
Propagation Protocol (PPP) to duplicate a stream with new destination IP
addresses.
B. Flip stream(s) to unicast so it only takes one flow for multiple destinations.
C. Flip stream(s) to multicast so it only takes one flow for multiple
destinations.
D. Add a Dante AVIO "repeater" module, which will accept a stream and
retransmit it with up to 32 more streams.
-The redundant port allows for a second network connection in case the first
fails. Which describes the operation? - -A. Primary and secondary can be
connected in the same broadcast domain (VLAN). If one cable fails, the other
will take over.
B. The secondary network is dormant until a problem is encoutered on the
primary. In that case, the primary network shuts down, and the secondary
network starts sending and receiving data.
C. The primary and secondary operate full time in separate broadcast
domains. If the connection fails on one network, it will continue to the other.
D. Dante devices establish redundancy by linking devices in a ring. If one like
breaks, the signal can traverse the ring in the other direction.
-Approximately how much bandwidth does a unicast audio flow use? (4-ch,
24-bit, 48kHz, 1msec latency - -A. 1Mbps
B. 6Mbps
C. 20Mbps
D. 45Mbps
-Dante Controller can apply information in a Dante preset to a device of a
different model.
For instance, if a 4-channel 70V amplifier is replaced with an 8-channel
model, it could save the IP settings,
device name, as well as channel labels and subscriptions for the first four
channels - -TRUE
FALSE
