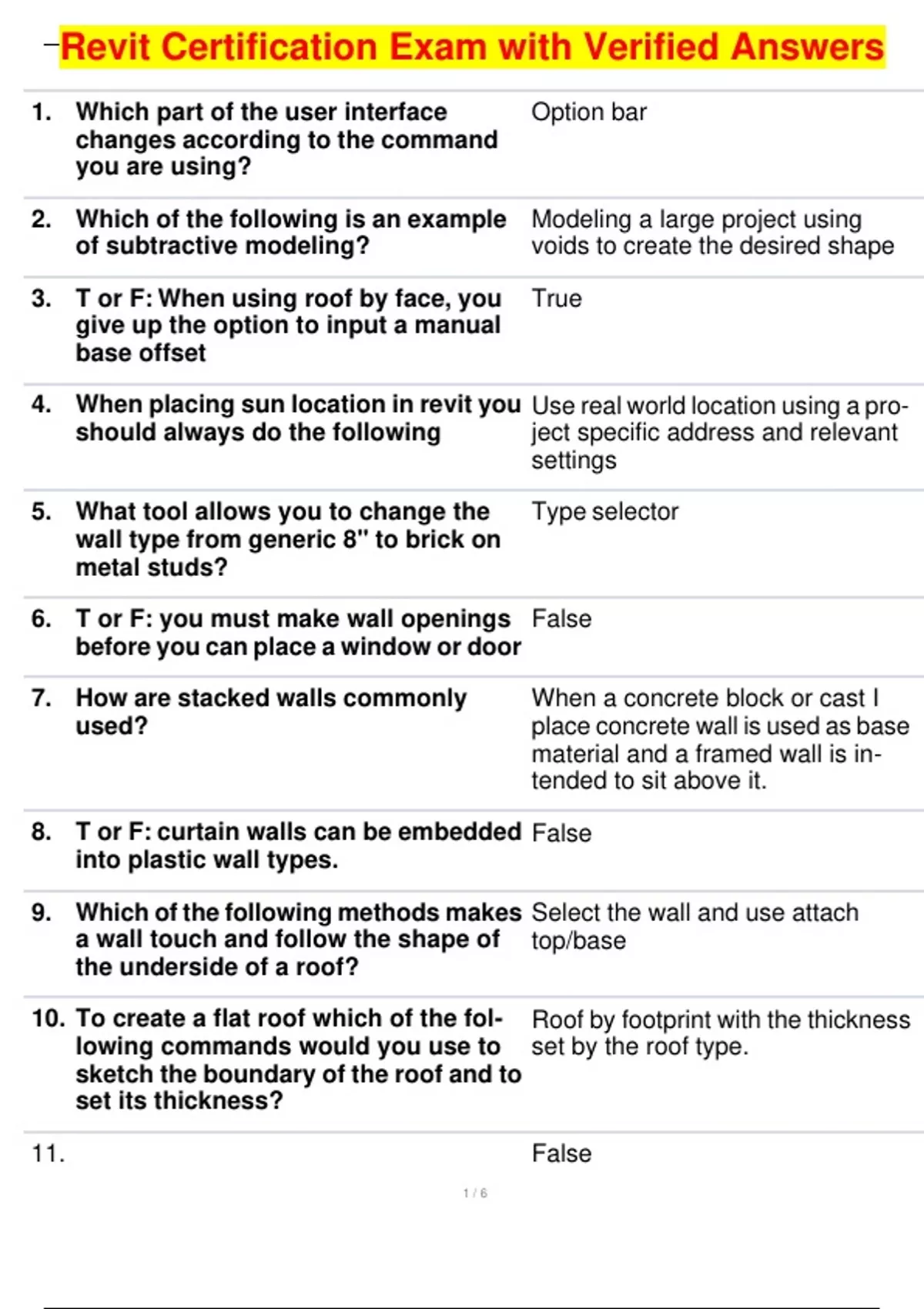

Revit Certification Exam with Verified Answers
1. Which part of the user interface Option bar
changes according to the command
you are using?
2. Which of the following is an example Modeling a large project using
of subtractive modeling? voids to create the desired shape
3. T or F: When using roof by face, you True
give up the option to input a manual
base offset
4. When placing sun location in revit you Use real world location using a pro-
should always do the following ject specific address and relevant
settings
5. What tool allows you to change the Type selector
wall type from generic 8" to brick on
metal studs?
6. T or F: you must make wall openings False
before you can place a window or door
7. How are stacked walls commonly When a concrete block or cast I
used? place concrete wall is used as base
material and a framed wall is in-
tended to sit above it.
8. T or F: curtain walls can be embedded False
into plastic wall types.
9. Which of the following methods makes Select the wall and use attach
a wall touch and follow the shape of top/base
the underside of a roof?
10. To create a flat roof which of the fol- Roof by footprint with the thickness
lowing commands would you use to set by the roof type.
sketch the boundary of the roof and to
set its thickness?
11. False
1/6
, Revit Certification Exam with Verified Answers
T or F: when drawing a roof by foot-
print in plan view, all lines must define
slope.
12. T or F: stairs are automatically drawn False
in revit: all you need to do is set the
base and top constraints and select
the appropriate stair family
13. T or F: stairs must have an associated True
bottom level by may or may not have
have an associated top level
14. T or F: openings in revit should always False
be placed using the by face tool
15. The purpose of call outs is to create Enlarged plan view of the model,
plan, elevation, or section.
16. Which is not a type of revit column Commercial
17. When creating a floor the boundary Closed with no intersecting and no
sketch must be overlapping lines.
18. T or F: ceilings in revit must be placed False
in rooms
19. Which dialogue box allows you to Visibility and graphics overrides
override project object styles on a
view by view basis
20. When placing a door window or com- Type selector
ponent you select the family you want
to use in the
21. The furniture family must be created This is partially true and is best
using the furniture family template practice. The appropriate category
template should be used.
22.22.
2/6
