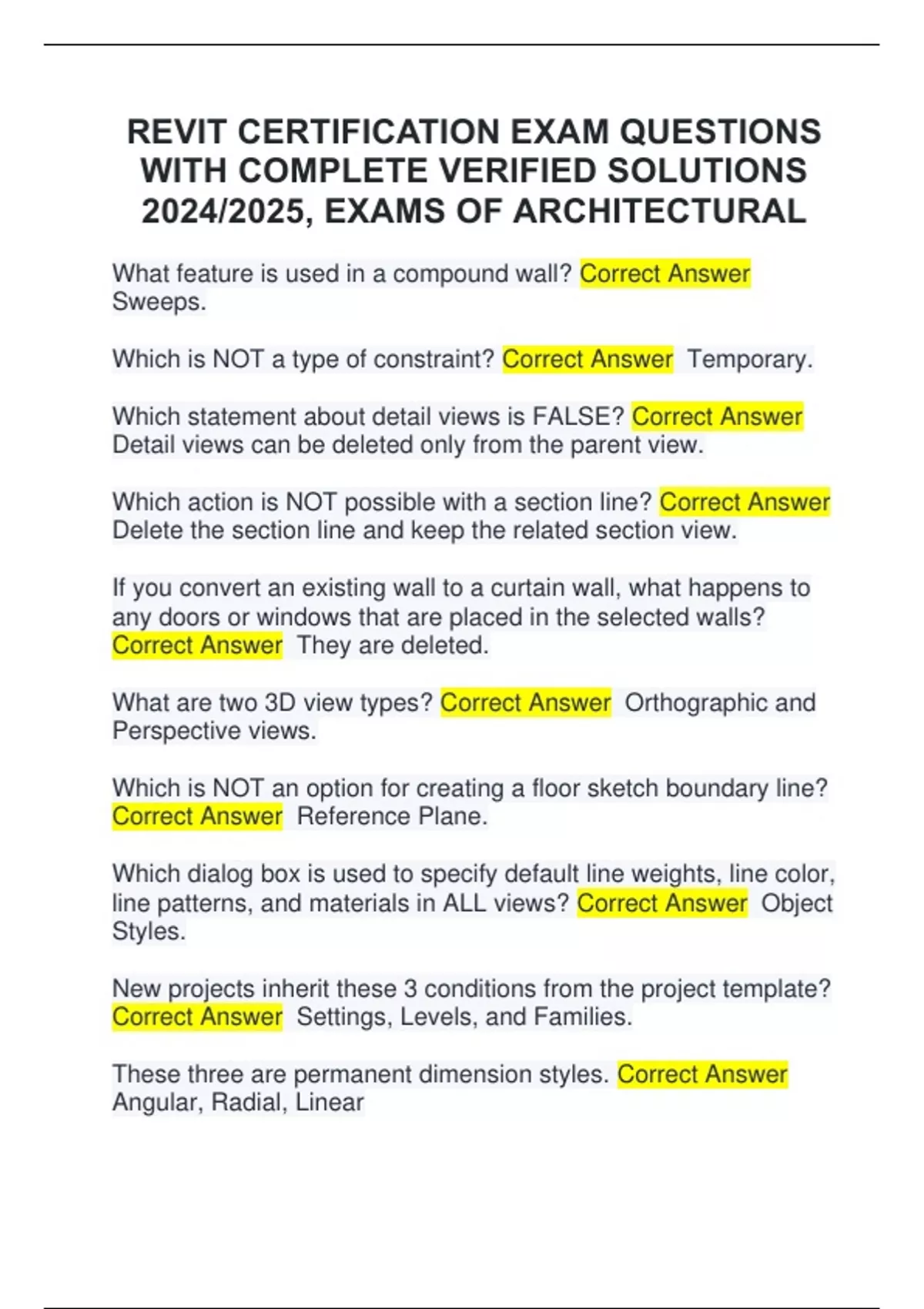

REVIT CERTIFICATION EXAM QUESTIONS
WITH COMPLETE VERIFIED SOLUTIONS
2024/2025, EXAMS OF ARCHITECTURAL
What feature is used in a compound wall? Correct Answer
Sweeps.
Which is NOT a type of constraint? Correct Answer Temporary.
Which statement about detail views is FALSE? Correct Answer
Detail views can be deleted only from the parent view.
Which action is NOT possible with a section line? Correct Answer
Delete the section line and keep the related section view.
If you convert an existing wall to a curtain wall, what happens to
any doors or windows that are placed in the selected walls?
Correct Answer They are deleted.
What are two 3D view types? Correct Answer Orthographic and
Perspective views.
Which is NOT an option for creating a floor sketch boundary line?
Correct Answer Reference Plane.
Which dialog box is used to specify default line weights, line color,
line patterns, and materials in ALL views? Correct Answer Object
Styles.
New projects inherit these 3 conditions from the project template?
Correct Answer Settings, Levels, and Families.
These three are permanent dimension styles. Correct Answer
Angular, Radial, Linear
,Which parameter of a plan view opens a dialog box to edit the
depth of a view? Correct Answer View Range.
Which three tabs on the Schedule/Quantities dialog enable
calculations and totals? Correct Answer Sorting/Grouping, Fields,
Formatting.
When you tag an element by category, what three things are
TRUE? Correct Answer Tags display information based on the
family and the item tagged, tags appear only in active view where
they are placed, the tag family for a model element must be
loaded before you can place the tag for that element.
What does the small triangle next to roof boundary line indicate in
the roof sketch? Correct Answer Slope.
What are two type properties of a wall? Correct Answer Coarse
fill pattern, and function.
What three classes are elements classified into? Correct Answer
View, Annotation, and Model.
Which is NOT used to create a custom title block? Correct
Answer Viewpoints.
Which statement about drafting views is FALSE? Correct Answer
Drafting views show the building model.
What statement about text is FALSE? Correct Answer Text
leaders must be placed separately.
What three model types can be used to define the boundaries of a
room? Correct Answer Ceiling, Wall, and Floor.
, What is NOT an option when sketching a ceiling? Correct Answer
Construction Line.
Walls are system families. What is NOT a wall family? Correct
Answer Complicated.
What statement about callouts is FALSE? Correct Answer You
have to create the bubble, head, and leader separately.
What effect does rendering not create? Correct Answer Rain and
Lightning.
What statement about sheets is FALSE? Correct Answer
Viewports cannot be scaled on a drawing sheet.
What statement about legends is TRUE? Correct Answer Legend
components represent model and annotation elements.
What statement about revision clouds is FALSE? Correct Answer
Revision clouds can be placed in a 3D view.
In what view type can you place a level? Correct Answer
Elevations.
What command is used to place a free standing element, such as
furniture? Correct Answer Component.
What statement is FALSE about stair sketches? Correct Answer
Risers must be parallel.
Which of the following is not found in the Properties Area in
Revit?
-View Name
-Type Selector
-Groups
