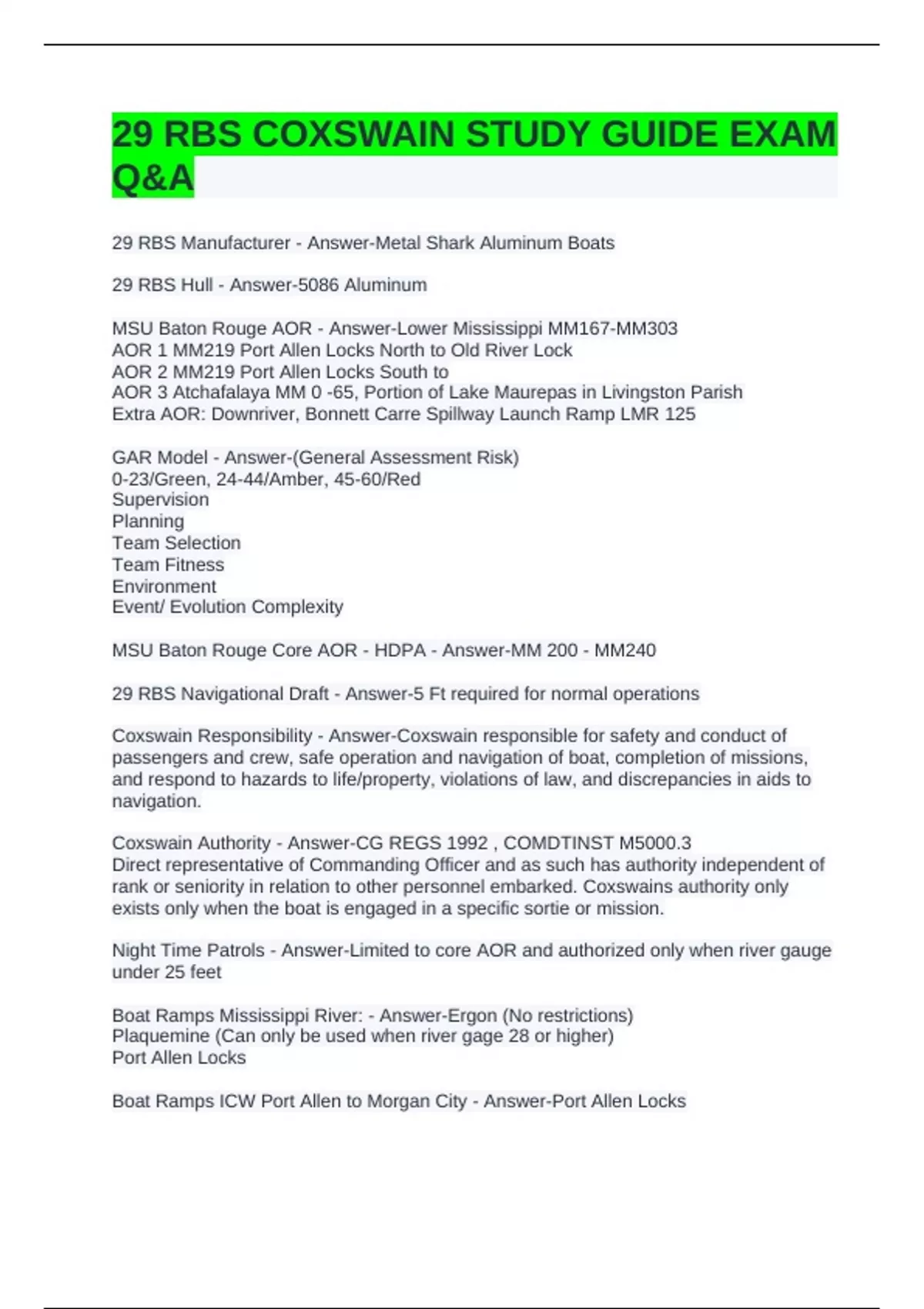

29 RBS COXSWAIN STUDY GUIDE EXAM
Q&A
29 RBS Manufacturer - Answer-Metal Shark Aluminum Boats
29 RBS Hull - Answer-5086 Aluminum
MSU Baton Rouge AOR - Answer-Lower Mississippi MM167-MM303
AOR 1 MM219 Port Allen Locks North to Old River Lock
AOR 2 MM219 Port Allen Locks South to
AOR 3 Atchafalaya MM 0 -65, Portion of Lake Maurepas in Livingston Parish
Extra AOR: Downriver, Bonnett Carre Spillway Launch Ramp LMR 125
GAR Model - Answer-(General Assessment Risk)
0-23/Green, 24-44/Amber, 45-60/Red
Supervision
Planning
Team Selection
Team Fitness
Environment
Event/ Evolution Complexity
MSU Baton Rouge Core AOR - HDPA - Answer-MM 200 - MM240
29 RBS Navigational Draft - Answer-5 Ft required for normal operations
Coxswain Responsibility - Answer-Coxswain responsible for safety and conduct of
passengers and crew, safe operation and navigation of boat, completion of missions,
and respond to hazards to life/property, violations of law, and discrepancies in aids to
navigation.
Coxswain Authority - Answer-CG REGS 1992 , COMDTINST M5000.3
Direct representative of Commanding Officer and as such has authority independent of
rank or seniority in relation to other personnel embarked. Coxswains authority only
exists only when the boat is engaged in a specific sortie or mission.
Night Time Patrols - Answer-Limited to core AOR and authorized only when river gauge
under 25 feet
Boat Ramps Mississippi River: - Answer-Ergon (No restrictions)
Plaquemine (Can only be used when river gage 28 or higher)
Port Allen Locks
Boat Ramps ICW Port Allen to Morgan City - Answer-Port Allen Locks
, Jack Millers Landing
Boat Ramps Atchafalaya River - Answer-Atchafalaya Basin Canprground
Tickfaw River Boat Ramps - Answer-Make Em Wet
Diversion Canal Boat Ramps - Answer-Hilltop Ramp
29 Length Overall including collar and taffrail - Answer-31 ft 8 inches
29 Length at waterline - Answer-26 ft 2 inches
Length overall on trailer - Answer-36 ft 10 inches
29 Beam - Answer-8 ft 5 inches
29 Draft DIW Engines down - Answer-33 inches
29 Draft DIW engines up - Answer-19 inches
Height, ground highest point on trailer radar stowed - Answer-10 feet 4 inches
Height, ground to highest point on trailer radar up - Answer-13 feet 4 inches
Height, ground to Nav light, deployed - Answer-13 feet 6 inches
Crew capacity pilothouse - Answer-4
Auxiliary Crew Seating - Answer-2
seating total - Answer-6
Fuel Tank Capacity - Answer-110 gallons
Propulsion Machinery - Answer-Twin Honda 225 4 stroke outboard engines
3 blade propellers - Answer-18" Pitch Solas LEXOR
Vessel Weight (full outfit, no crew, trailer) - Answer-9960 pounds
Vessel Max Weight (Full outfit, 4 crew, 6 passengers - Answer-10,600 pounds
Vessel weight (full outfit, fuel, no trailer, no crew) - Answer-8400 pounds
Max outside air temp. - Answer-135-0 F
