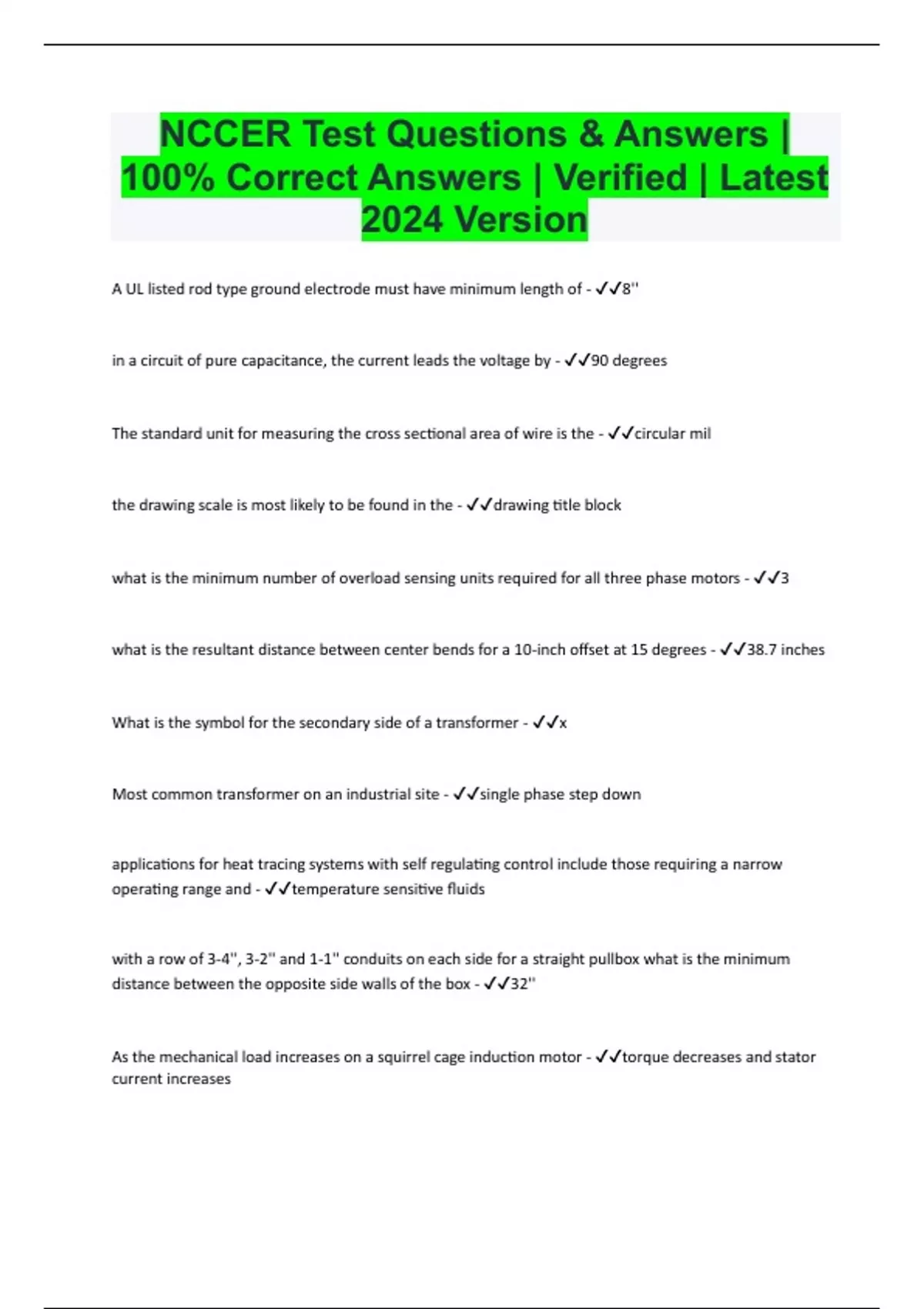

NCCER Test Questions & Answers | 100% Correct Answers | Verified | Latest 2024 Version
A UL listed rod type ground electrode must have minimum length of - 8'' in a circuit of pure capacitance, the current leads the voltage by - 90 degrees The standard unit for measuring the cross sectional area of wire is the - circular mil the drawing scale is most likely to be found in the - drawing title block what is the minimum number of overload sensing units required for all three phase motors - 3 what is the resultant distance between center bends for a 10-inch offset at 15 degrees - 38.7 inches What is the symbol for the secondary side of a transformer - x Most common transformer on an industrial site - single phase step down applications for heat tracing systems with self regulating control include those requiring a narrow operating range and - temperature sensitive fluids with a row of 3-4'', 3-2'' and 1-1'' conduits on each side for a straight pullbox what is the minimum distance between the opposite side walls of the box - 32'' As the mechanical load increases on a squirrel cage
