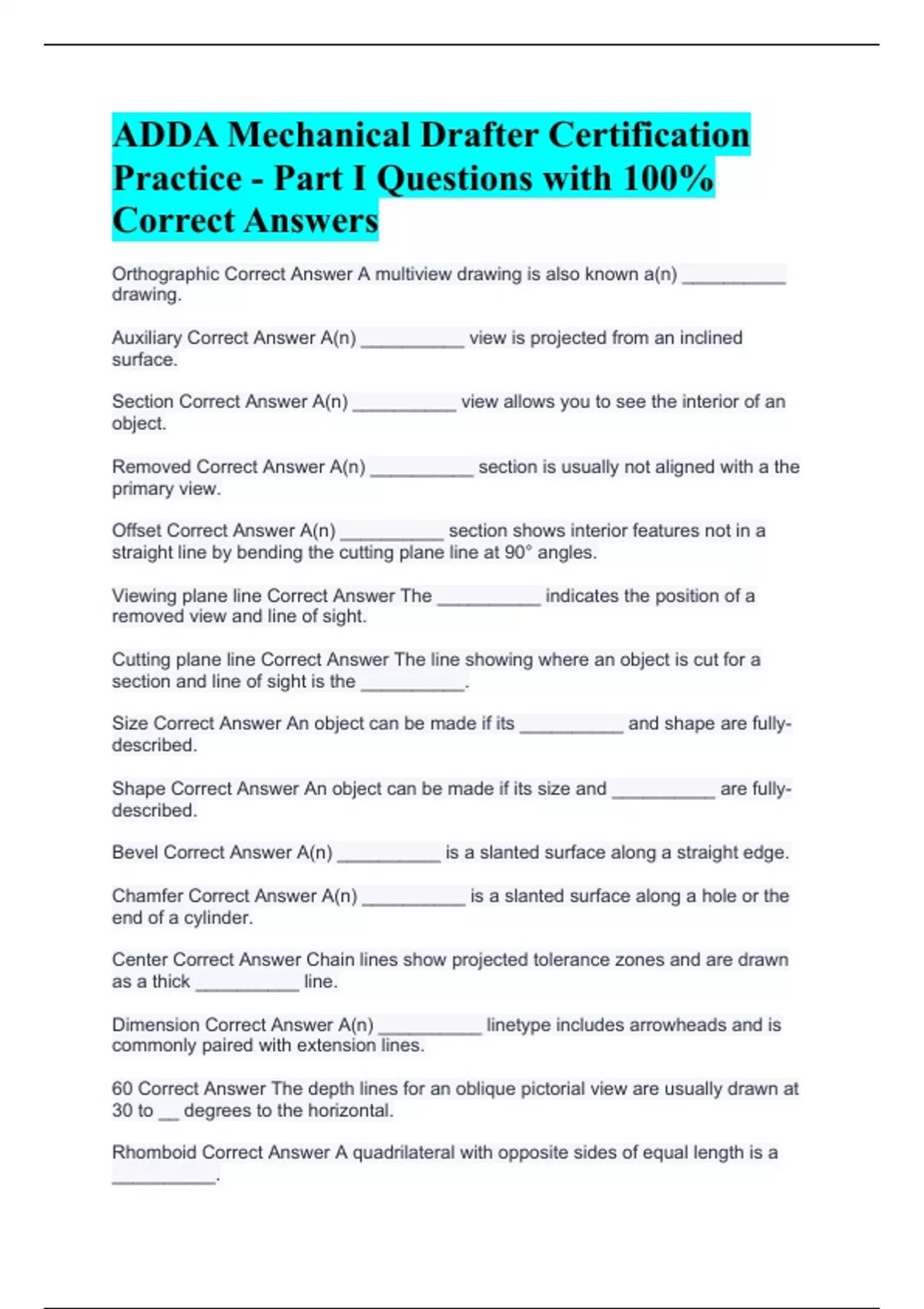

ADDA Mechanical Drafter Certification Practice - Part I Questions with 100% Correct Answers

Orthographic Correct Answer A multiview drawing is also known a(n) __________ drawing. Auxiliary Correct Answer A(n) __________ view is projected from an inclined surface. Section Correct Answer A(n) __________ view allows you to see the interior of an object. Removed Correct Answer A(n) __________ section is usually not aligned with a the primary view. Offset Correct Answer A(n) __________ section shows interior features not in a straight line by bending the cutting plane line at 90° angles. Viewing plane line Correct Answer The __________ indicates the position of a removed view and line of sight. Cutting plane line Correct Answer The line showing where an object is cut for a section and line of sight is the __________. Size Correct Answer An object can be made if its __________ and shape are fully-described. Shape Correct Answer An object can be made if its size and __________ are fully-described. Bevel Correct Answer A(n) __________ is a slanted surface along a straight edge. Chamfer Correct Answer A(n) __________ is a slanted surface along a hole or the end of a cylinder. Center Correct Answer Chain lines show projected tolerance zones and are drawn as a thick __________ line. Dimension Correct Answer A(n) __________ linetype includes arrowheads and is commonly paired with extension lines. 60 Correct Answer The depth lines for an oblique pictorial view are usually drawn at 30 to __ degrees to the horizontal. Rhomboid Correct Answer A quadrilateral with opposite sides of equal length is a __________.
