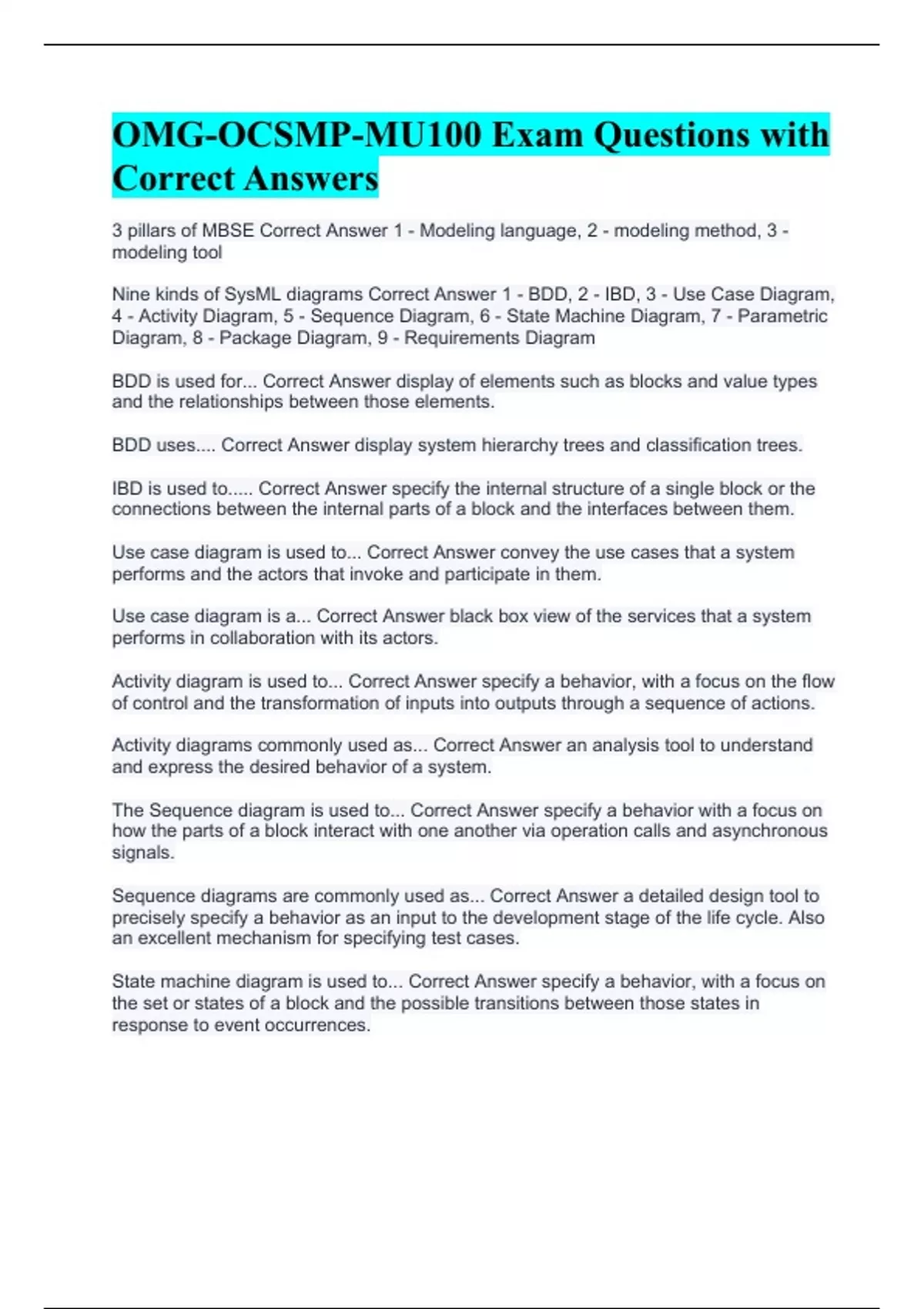

3 pillars of MBSE Correct Answer 1 - Modeling language, 2 - modeling method, 3 - modeling tool Nine kinds of SysML diagrams Correct Answer 1 - BDD, 2 - IBD, 3 - Use Case Diagram, 4 - Activity Diagram, 5 - Sequence Diagram, 6 - State Machine Diagram, 7 - Parametric Diagram, 8 - Package Diagram, 9 - Requirements Diagram BDD is used for... Correct Answer display of elements such as blocks and value types and the relationships between those elements. BDD uses.... Correct Answer display system hierarchy trees and classification trees. IBD is used to..... Correct Answer specify the internal structure of a single block or the connections between the internal parts of a block and the interfaces between them. Use case diagram is used to... Correct Answer convey the use cases that a system performs and the actors that invoke and participate in them. Use case diagram is a... Correct Answer black box view of the services that a system performs in collaboration with its actors. Activity diagram is used to... Correct Answer specify a behavior, with a focus on the flow of control and the transformation of inputs into outputs through a sequence of actions. Activity diagrams commonly used as... Correct Answer an analysis tool to understand and express the desired behavior of a system. The Sequence diagram is used to... Correct Answer specify a behavior with a focus on how the parts of a block interact with one another via operation calls and asynchronous signals. Sequence diagrams are commonly used as... Correct Answer a detailed design tool to precisely specify a behavior as an input to the development stage of the life cycle. Also an excellent mechanism for specifying test cases. State machine diagram is used to... Correct Answer specify a behavior, with a focus on the set or states of a block and the possible transitions between those states in response to event occurrences.
