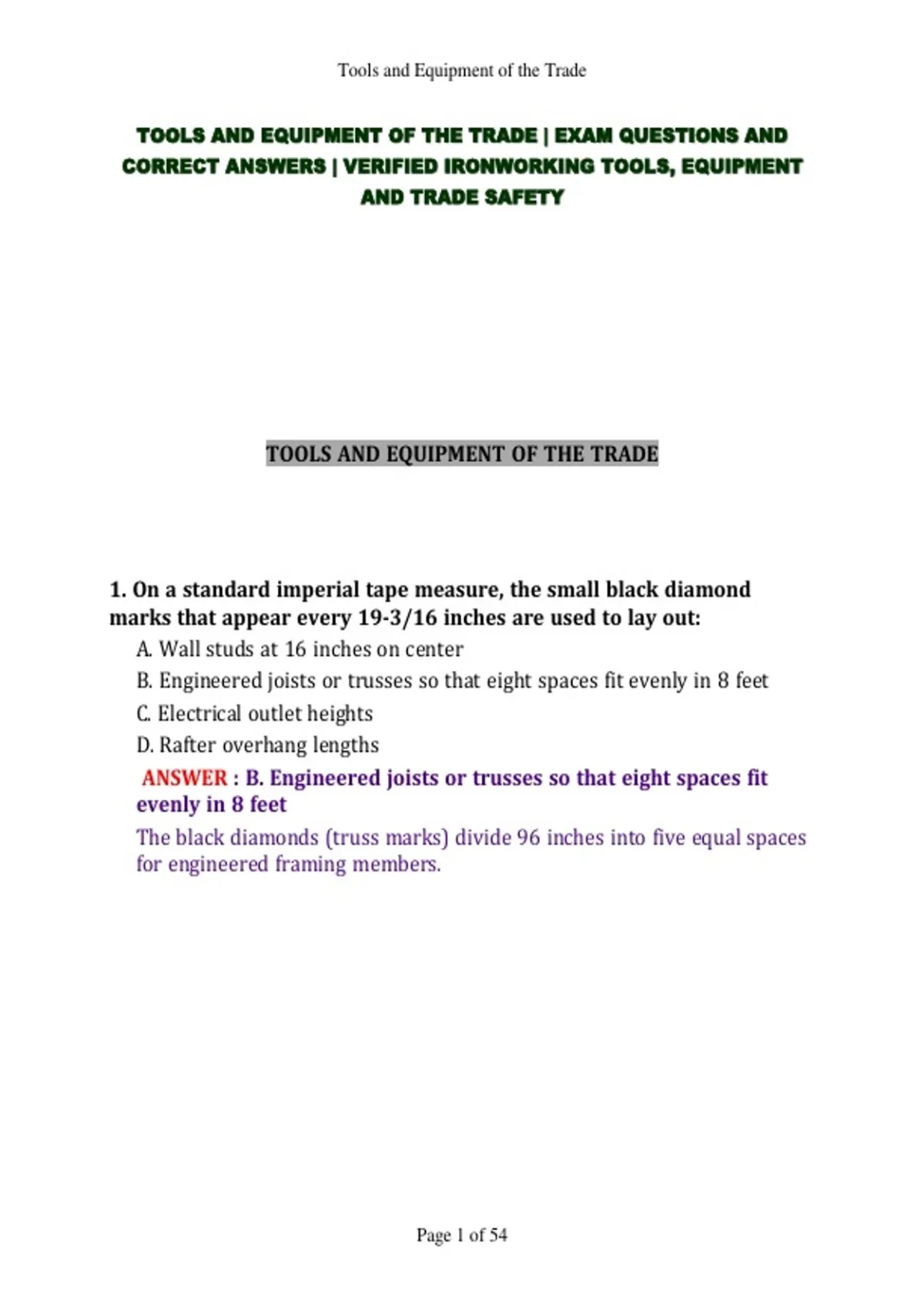

Tools and Equipment of the Trade
TOOLS AND EQUIPMENT OF THE TRADE | EXAM QUESTIONS AND
CORRECT ANSWERS | VERIFIED IRONWORKING TOOLS, EQUIPMENT
AND TRADE SAFETY
TOOLS AND EQUIPMENT OF THE TRADE
1. On a standard imperial tape measure, the small black diamond
marks that appear every 19-3/16 inches are used to lay out:
A. Wall studs at 16 inches on center
B. Engineered joists or trusses so that eight spaces fit evenly in 8 feet
C. Electrical outlet heights
D. Rafter overhang lengths
ANSWER : B. Engineered joists or trusses so that eight spaces fit
evenly in 8 feet
The black diamonds (truss marks) divide 96 inches into five equal spaces
for engineered framing members.
Page 1 of 54
, Tools and Equipment of the Trade
2. The hook at the end of a tape measure moves slightly back and forth
because it:
A. Is worn out and should be replaced
B. Compensates for its own thickness on inside and outside
measurements
C. Reduces the chance of the blade snapping
D. Allows the blade to retract more smoothly
ANSWER : B. Compensates for its own thickness on inside and
outside measurements
The sliding hook shifts by exactly its thickness so push and pull
measurements both stay accurate.
3. Which measuring tool is best suited for checking the inside diameter
of a pipe to the nearest thousandth of an inch?
A. Combination square
B. Folding rule
C. Steel tape measure
D. Dial or digital caliper
ANSWER : D. Dial or digital caliper
Calipers have inside jaws designed to read internal dimensions with fine
precision.
4. A folding rule with an extension slide is especially useful for:
A. Marking circles on plywood
B. Checking a surface for level
C. Taking accurate inside measurements such as between door jambs
D. Measuring distances over 100 feet
ANSWER : C. Taking accurate inside measurements such as between
door jambs
The brass extension slides out so the rule can read inside dimensions
without bending.
Page 2 of 54
, Tools and Equipment of the Trade
5. A worker needs to measure the length of a 250-foot property line.
The most appropriate tool is a:
A. Six-foot folding rule
B. 25-foot pocket tape
C. Long steel or fiberglass reel tape
D. Outside micrometer
ANSWER : C. Long steel or fiberglass reel tape
Reel tapes of 100 to 300 feet are built for long site and survey
measurements.
6. When reading a standard outside micrometer, one full turn of the
thimble moves the spindle:
A. 0.025 inch
B. 0.001 inch
C. 0.100 inch
D. 0.250 inch
ANSWER : A. 0.025 inch
The spindle thread has 40 threads per inch, so each revolution advances
0.025 inch.
7. A measuring wheel (surveyor's wheel) is most practical for:
A. Checking the squareness of a frame
B. Estimating long distances such as driveways or fence lines
C. Finding the depth of a mortise
D. Setting the angle on a miter saw
ANSWER : B. Estimating long distances such as driveways or fence
lines
Each rotation of the wheel covers a known distance, making quick long-
run estimates easy.
Page 3 of 54
, Tools and Equipment of the Trade
8. A laser distance meter is limited in accuracy mainly when:
A. Used outdoors in bright sunlight on a poor target surface
B. Used indoors on a painted wall
C. Measured from a fixed reference point
D. Held steady against a flat surface
ANSWER : A. Used outdoors in bright sunlight on a poor target
surface
Sunlight and dark or angled targets make the reflected beam hard for the
sensor to read.
9. A feeler gauge is used to measure:
A. The pitch of a roof
B. The thickness of sheet plywood
C. Electrical voltage
D. Small gaps or clearances between two parts
ANSWER : D. Small gaps or clearances between two parts
Feeler gauges are thin calibrated blades slipped into a gap to find its
width.
10. Before trusting a new tape measure on a critical job, a careful
tradesperson should:
A. Stretch the blade fully to loosen it
B. Oil the blade to reduce friction
C. Compare it against a known accurate reference rule
D. Remove the end hook
ANSWER : C. Compare it against a known accurate reference rule
Checking against a reference confirms the hook and graduations are true
before cutting material.
Page 4 of 54
