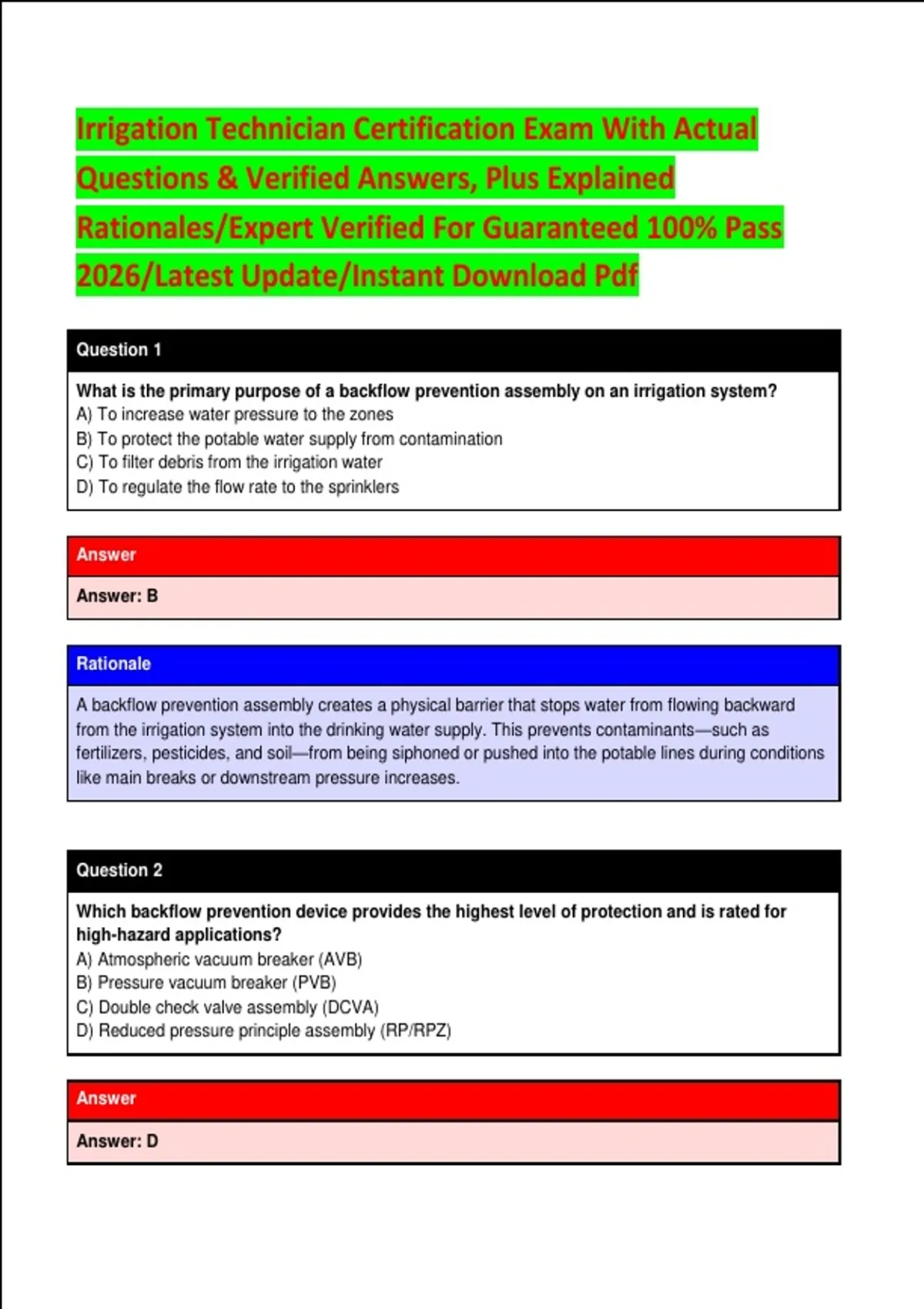

Irrigation Technician Certification Exam With Actual
Questions & Verified Answers, Plus Explained
Rationales/Expert Verified For Guaranteed 100% Pass
2026/Latest Update/Instant Download Pdf
Question 1
What is the primary purpose of a backflow prevention assembly on an irrigation system?
A) To increase water pressure to the zones
B) To protect the potable water supply from contamination
C) To filter debris from the irrigation water
D) To regulate the flow rate to the sprinklers
Answer
Answer: B
Rationale
A backflow prevention assembly creates a physical barrier that stops water from flowing backward
from the irrigation system into the drinking water supply. This prevents contaminants—such as
fertilizers, pesticides, and soil—from being siphoned or pushed into the potable lines during conditions
like main breaks or downstream pressure increases.
Question 2
Which backflow prevention device provides the highest level of protection and is rated for
high-hazard applications?
A) Atmospheric vacuum breaker (AVB)
B) Pressure vacuum breaker (PVB)
C) Double check valve assembly (DCVA)
D) Reduced pressure principle assembly (RP/RPZ)
Answer
Answer: D
,Rationale
The reduced pressure principle assembly contains two independently acting check valves with a
pressure differential relief valve located between them. If either check valve fails or if backpressure or
backsiphonage occurs, the relief valve opens to discharge water, maintaining an air gap and providing
the highest degree of protection against both backflow conditions.
Question 3
A pressure vacuum breaker (PVB) must be installed at what minimum height above the highest
downstream outlet?
A) 6 inches
B) 12 inches
C) 18 inches
D) 24 inches
Answer
Answer: B
Rationale
The PVB must be installed a minimum of 12 inches above the highest point of any downstream piping
or outlet it protects. This elevation ensures that the vacuum breaker's air inlet can open to atmosphere
and break the siphon without water discharging from the assembly, maintaining proper protection
against backsiphonage.
Question 4
Which backflow preventer protects against backsiphonage only and is not approved for
continuous pressure applications?
A) Pressure vacuum breaker (PVB)
B) Atmospheric vacuum breaker (AVB)
C) Double check valve assembly (DCVA)
D) Reduced pressure principle assembly (RP)
Answer
Answer: B
Rationale
2
,The AVB relies on a float that seals against a seat under normal flow. It must be installed downstream
of the last control valve and cannot be subjected to continuous pressure, because sustained pressure
would hold the float closed and prevent it from opening to break a siphon when needed.
Question 5
What is the defining characteristic of a double check valve assembly (DCVA)?
A) It has an atmospheric vent between two check valves
B) It protects against both backsiphonage and backpressure but is limited to low-hazard applications
C) It is the only device approved for high-hazard protection
D) It must be installed 12 inches above the highest outlet
Answer
Answer: B
Rationale
A DCVA consists of two independent check valves in series. It prevents reverse flow from both
backsiphonage and backpressure, but because it lacks a relief valve or air inlet, it cannot discharge
contaminants if a check valve fails. Therefore, it is approved only for low-hazard installations where the
degree of contamination risk is minimal.
Question 6
A drip irrigation zone is operating at 30 psi, but the pressure measured at the start of the lateral
is 48 psi. Which condition is the most likely cause?
A) A closed isolation valve downstream
B) A partially closed valve or excessive elevation drop
C) A broken emitter
D) The controller is set to the wrong program
Answer
Answer: B
Rationale
When the pressure at the beginning of the lateral is significantly higher than the design operating
pressure, the cause is usually a restriction or pressure source issue upstream. A partially closed
isolation valve or a large elevation drop from the source to the lateral can create excessive pressure at
3
, the zone entry. The system must be regulated or the cause corrected to prevent emitter flow rates
from exceeding design.
Question 7
What does the abbreviation GPM represent in irrigation system specifications?
A) Gallons per month
B) Gallons per minute
C) Gallons per meter
D) Gravity pressure measurement
Answer
Answer: B
Rationale
GPM is the standard unit of flow rate in North American irrigation work. It expresses the volume of
water moving through the system in gallons during each minute of operation. Flow rate is a critical
design parameter because it determines pipe sizing, valve selection, and available irrigation time.
Question 8
A gear-driven rotor nozzle typically operates at approximately what pressure for optimal
performance?
A) 15 psi
B) 30 psi
C) 45 psi
D) 80 psi
Answer
Answer: C
Rationale
Gear-driven rotors are designed to operate at approximately 45 psi at the nozzle. This pressure
provides the energy needed to drive the gear mechanism and achieve the designed throw radius and
droplet size. Spray heads, by contrast, typically operate at about 30 psi.
4
