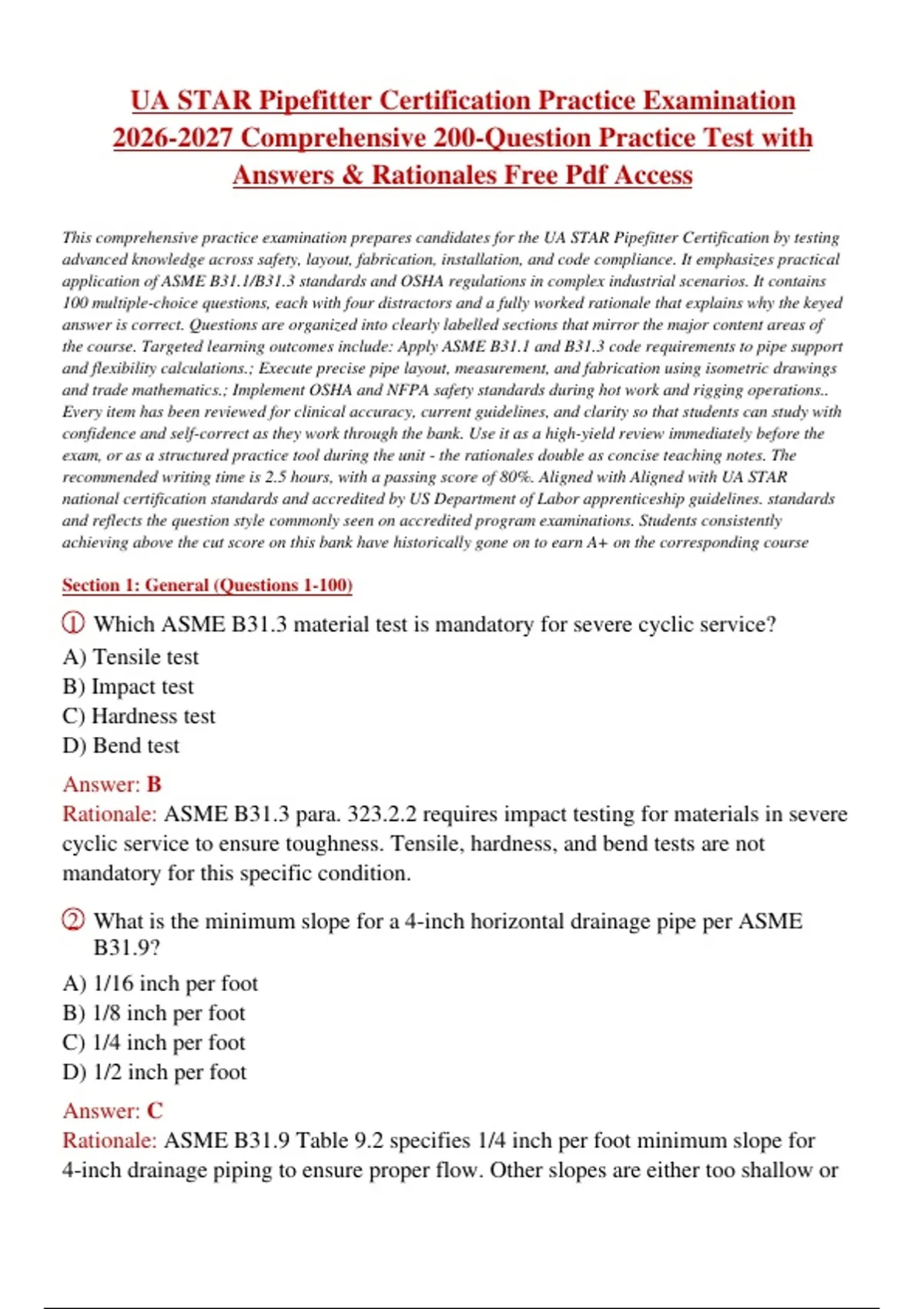

UA STAR Pipefitter Certification Practice Examination
2026-2027 Comprehensive 200-Question Practice Test with
Answers & Rationales Free Pdf Access
This comprehensive practice examination prepares candidates for the UA STAR Pipefitter Certification by testing
advanced knowledge across safety, layout, fabrication, installation, and code compliance. It emphasizes practical
application of ASME B31.1/B31.3 standards and OSHA regulations in complex industrial scenarios. It contains
100 multiple-choice questions, each with four distractors and a fully worked rationale that explains why the keyed
answer is correct. Questions are organized into clearly labelled sections that mirror the major content areas of
the course. Targeted learning outcomes include: Apply ASME B31.1 and B31.3 code requirements to pipe support
and flexibility calculations.; Execute precise pipe layout, measurement, and fabrication using isometric drawings
and trade mathematics.; Implement OSHA and NFPA safety standards during hot work and rigging operations..
Every item has been reviewed for clinical accuracy, current guidelines, and clarity so that students can study with
confidence and self-correct as they work through the bank. Use it as a high-yield review immediately before the
exam, or as a structured practice tool during the unit - the rationales double as concise teaching notes. The
recommended writing time is 2.5 hours, with a passing score of 80%. Aligned with Aligned with UA STAR
national certification standards and accredited by US Department of Labor apprenticeship guidelines. standards
and reflects the question style commonly seen on accredited program examinations. Students consistently
achieving above the cut score on this bank have historically gone on to earn A+ on the corresponding course
Section 1: General (Questions 1-100)
1 Which ASME B31.3 material test is mandatory for severe cyclic service?
A) Tensile test
B) Impact test
C) Hardness test
D) Bend test
Answer: B
Rationale: ASME B31.3 para. 323.2.2 requires impact testing for materials in severe
cyclic service to ensure toughness. Tensile, hardness, and bend tests are not
mandatory for this specific condition.
2 What is the minimum slope for a 4-inch horizontal drainage pipe per ASME
B31.9?
A) 1/16 inch per foot
B) 1/8 inch per foot
C) 1/4 inch per foot
D) 1/2 inch per foot
Answer: C
Rationale: ASME B31.9 Table 9.2 specifies 1/4 inch per foot minimum slope for
4-inch drainage piping to ensure proper flow. Other slopes are either too shallow or
,excessive for this diameter.
3 During pipe bending, what is the primary cause of ovality in a cold bend?
A) Excessive bending speed
B) Insufficient mandrel support
C) Incorrect bend angle
D) High material yield strength
Answer: B
Rationale: Ovality occurs when the pipe wall collapses inward due to lack of internal
support; a mandrel prevents this. Speed, angle, and yield strength affect other defects
like thinning or springback.
4 Which rigging configuration reduces tension on slings when lifting a long pipe?
A) Single vertical hitch
B) Basket hitch with two slings
C) Choker hitch at center
D) Bridle hitch with four legs
Answer: B
Rationale: A basket hitch distributes load across two slings, reducing tension
compared to a single vertical or choker hitch. A bridle hitch is for asymmetric loads.
5 In isometric drawing, what does a double line with an arrow indicate?
A) Flow direction
B) Pipe insulation
C) Weld location
D) Slope direction
Answer: A
Rationale: In piping isometrics, arrows on double lines denote flow direction.
Insulation, welds, and slopes use different symbols.
6 Calculate the travel of a 45° offset with a 6-inch rise using standard pipefitter
constants.
A) 6 inches
B) 8.49 inches
C) 10.39 inches
D) 12 inches
Answer: B
Rationale: Travel = rise × 1.414 = 6 × 1.414 "H 8.49 inches. Other options misapply
,multipliers or use incorrect constants.
7 Which valve is best for throttling flow in a high-pressure steam line?
A) Gate valve
B) Globe valve
C) Ball valve
D) Butterfly valve
Answer: B
Rationale: Globe valves are designed for throttling due to their spherical body and
plug design. Gate and ball valves are for on/off service; butterfly valves are for
lower pressure.
8 What is the minimum clearance required between a pipe and a hanger rod per
ASME B31.1?
A) 1/2 inch
B) 1 inch
C) 2 inches
D) 3 inches
Answer: B
Rationale: ASME B31.1 requires at least 1 inch clearance to allow for insulation and
movement. Other values are either insufficient or excessive.
9 Which OSHA standard governs fire prevention during pipe welding in a confined
space?
A) 29 CFR 1910.146
B) 29 CFR 1926.352
C) NFPA 51B
D) 29 CFR 1926.1200
Answer: B
Rationale: OSHA 29 CFR 1926.352 specifically addresses fire prevention during
welding and cutting. 1910.146 covers confined spaces, and NFPA 51B is a
consensus standard.
10 When assembling flanged joints, what is the correct bolt tightening sequence?
A) Sequential clockwise
B) Star pattern from center
C) Crisscross pattern
D) Random pattern
, Answer: C
Rationale: A crisscross pattern ensures even gasket compression and prevents
leakage. Sequential or random patterns cause uneven stress.
11 For a 6-inch Schedule 40 carbon steel line at 400°F, which support type prevents
excessive sag per ASME B31.1?
A) Rigid rod hanger spaced at maximum 20 feet
B) Variable spring hanger with travel range sized to actual thermal movement
C) Constant effort support sized to the calculated hot load
D) Trapeze hanger with two rods and a roller assembly
Answer: B
Rationale: Variable spring hangers accommodate thermal movement while
maintaining acceptable load variation (typically 25%) per ASME B31.1; rigid rods
and rollers do not control vertical displacement, and constant effort supports are
reserved for critical lines where load variation must be near zero.
12 A double-offset 45° offset has a true offset of 12 inches. What is the face-to-face
travel between the two 45° elbows?
A) 12 inches
B) 16.97 inches
C) 24 inches
D) 8.49 inches
Answer: B
Rationale: For a 45° offset, travel = true offset × 1.414; 12 × 1.414 = 16.97 inches.
The 1.414 multiplier is the cosecant of 45°, and the other options reflect common
errors such as using the offset directly or applying the wrong trigonometric function.
13 When cutting 8-inch Schedule 80 carbon steel pipe with an oxy-fuel torch, which
practice best prevents heat-affected zone cracking?
A) Preheating the cut line to 400°F before cutting
B) Using a cutting tip one size larger than recommended
C) Cutting at maximum travel speed with a neutral flame
D) Quenching the cut edge with water immediately after cutting
Answer: A
Rationale: Preheating to 400°F reduces the cooling rate and residual stresses in
thick-wall pipe, minimizing heat-affected zone cracking per ASME B31.1 and
NFPA 51B. Larger tips, high travel speed, or water quenching increase thermal
gradients and crack susceptibility.
