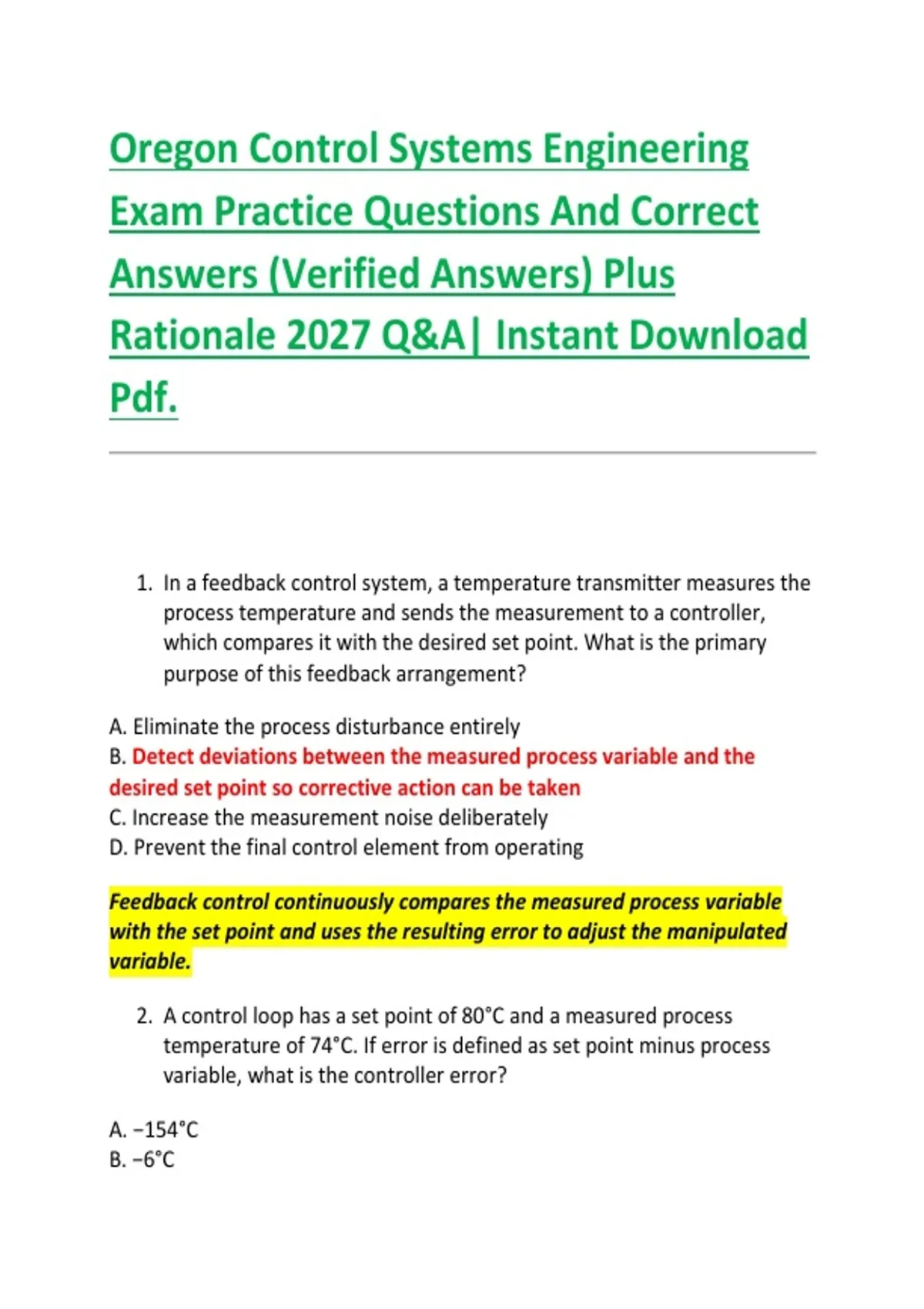

Oregon Control Systems Engineering
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2027 Q&A| Instant Download
Pdf.
1. In a feedback control system, a temperature transmitter measures the
process temperature and sends the measurement to a controller,
which compares it with the desired set point. What is the primary
purpose of this feedback arrangement?
A. Eliminate the process disturbance entirely
B. Detect deviations between the measured process variable and the
desired set point so corrective action can be taken
C. Increase the measurement noise deliberately
D. Prevent the final control element from operating
Feedback control continuously compares the measured process variable
with the set point and uses the resulting error to adjust the manipulated
variable.
2. A control loop has a set point of 80°C and a measured process
temperature of 74°C. If error is defined as set point minus process
variable, what is the controller error?
A. −154°C
B. −6°C
,C. 6°C
D. 154°C
The control error is calculated as set point minus measured value, giving 80
− 74 = 6°C.
3. A proportional controller is adjusted so that a small change in process
error produces a relatively large change in controller output. Which
controller characteristic has been increased?
A. Integral reset time
B. Derivative filtering
C. Proportional gain
D. Sensor dead time
Increasing proportional gain increases the controller output response to a
given instantaneous error.
4. A process temperature remains consistently below its set point
despite a proportional controller operating normally. What is a
common limitation of proportional-only control that can cause this
condition?
A. Infinite bandwidth
B. Steady-state offset
C. Automatic integral action
D. Elimination of process gain
A proportional-only controller may require a nonzero steady-state error to
produce the output necessary to balance the process load, resulting in
offset.
5. A process controller includes integral action. What is the principal
purpose of the integral term?
A. Predict future disturbances exclusively
B. Accumulate error over time to eliminate steady-state offset
,C. Remove the process sensor
D. Increase measurement dead time
Integral action responds to the accumulated error and continues adjusting
controller output until the persistent steady-state error is removed.
6. A derivative controller responds strongly to the rate at which the
process variable changes. What is a primary benefit of derivative
action?
A. Elimination of all measurement noise
B. Anticipatory response to rapidly changing error
C. Permanent removal of process gain
D. Elimination of actuator limitations
Derivative action responds to the rate of change of error, allowing the
controller to react to the direction and speed of process changes before the
error becomes large.
7. A PID controller is being tuned for a process with substantial
measurement noise. Which controller action is particularly sensitive to
high-frequency measurement noise?
A. Proportional action only
B. Integral action only
C. Derivative action
D. Manual output action
Derivative action amplifies rapid changes in the measured signal, so
filtering is commonly used when measurement noise is significant.
8. A process has a long transport delay between movement of a control
valve and the resulting change in the measured process variable.
Which control problem can result?
A. Instantaneous response
B. Oscillation or instability if the controller is tuned too aggressively
, C. Elimination of process dynamics
D. Infinite control bandwidth
Long dead time delays the controller’s observation of its own actions,
making excessive gain or aggressive tuning more likely to cause oscillation
or instability.
9. A first-order process has a time constant of 10 minutes. Approximately
how long does it take for a step response to reach about 63% of its
final value?
A. 1 minute
B. 5 minutes
C. 10 minutes
D. 100 minutes
For a first-order system subjected to a step input, the response reaches
approximately 63.2% of its final value after one time constant.
10. A stable first-order process receives a step change in input. As
time approaches infinity, the process output approaches:
A. Infinite amplitude
B. Zero regardless of input
C. A new steady-state value
D. A permanently oscillating value
A stable first-order process settles toward a finite steady-state output
determined by its gain and the applied input change.
11. In a linear control system, the transfer function is defined as the
ratio of:
A. Output power to input power only
B. Laplace-transformed output to Laplace-transformed input under zero
initial conditions
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2027 Q&A| Instant Download
Pdf.
1. In a feedback control system, a temperature transmitter measures the
process temperature and sends the measurement to a controller,
which compares it with the desired set point. What is the primary
purpose of this feedback arrangement?
A. Eliminate the process disturbance entirely
B. Detect deviations between the measured process variable and the
desired set point so corrective action can be taken
C. Increase the measurement noise deliberately
D. Prevent the final control element from operating
Feedback control continuously compares the measured process variable
with the set point and uses the resulting error to adjust the manipulated
variable.
2. A control loop has a set point of 80°C and a measured process
temperature of 74°C. If error is defined as set point minus process
variable, what is the controller error?
A. −154°C
B. −6°C
,C. 6°C
D. 154°C
The control error is calculated as set point minus measured value, giving 80
− 74 = 6°C.
3. A proportional controller is adjusted so that a small change in process
error produces a relatively large change in controller output. Which
controller characteristic has been increased?
A. Integral reset time
B. Derivative filtering
C. Proportional gain
D. Sensor dead time
Increasing proportional gain increases the controller output response to a
given instantaneous error.
4. A process temperature remains consistently below its set point
despite a proportional controller operating normally. What is a
common limitation of proportional-only control that can cause this
condition?
A. Infinite bandwidth
B. Steady-state offset
C. Automatic integral action
D. Elimination of process gain
A proportional-only controller may require a nonzero steady-state error to
produce the output necessary to balance the process load, resulting in
offset.
5. A process controller includes integral action. What is the principal
purpose of the integral term?
A. Predict future disturbances exclusively
B. Accumulate error over time to eliminate steady-state offset
,C. Remove the process sensor
D. Increase measurement dead time
Integral action responds to the accumulated error and continues adjusting
controller output until the persistent steady-state error is removed.
6. A derivative controller responds strongly to the rate at which the
process variable changes. What is a primary benefit of derivative
action?
A. Elimination of all measurement noise
B. Anticipatory response to rapidly changing error
C. Permanent removal of process gain
D. Elimination of actuator limitations
Derivative action responds to the rate of change of error, allowing the
controller to react to the direction and speed of process changes before the
error becomes large.
7. A PID controller is being tuned for a process with substantial
measurement noise. Which controller action is particularly sensitive to
high-frequency measurement noise?
A. Proportional action only
B. Integral action only
C. Derivative action
D. Manual output action
Derivative action amplifies rapid changes in the measured signal, so
filtering is commonly used when measurement noise is significant.
8. A process has a long transport delay between movement of a control
valve and the resulting change in the measured process variable.
Which control problem can result?
A. Instantaneous response
B. Oscillation or instability if the controller is tuned too aggressively
, C. Elimination of process dynamics
D. Infinite control bandwidth
Long dead time delays the controller’s observation of its own actions,
making excessive gain or aggressive tuning more likely to cause oscillation
or instability.
9. A first-order process has a time constant of 10 minutes. Approximately
how long does it take for a step response to reach about 63% of its
final value?
A. 1 minute
B. 5 minutes
C. 10 minutes
D. 100 minutes
For a first-order system subjected to a step input, the response reaches
approximately 63.2% of its final value after one time constant.
10. A stable first-order process receives a step change in input. As
time approaches infinity, the process output approaches:
A. Infinite amplitude
B. Zero regardless of input
C. A new steady-state value
D. A permanently oscillating value
A stable first-order process settles toward a finite steady-state output
determined by its gain and the applied input change.
11. In a linear control system, the transfer function is defined as the
ratio of:
A. Output power to input power only
B. Laplace-transformed output to Laplace-transformed input under zero
initial conditions
