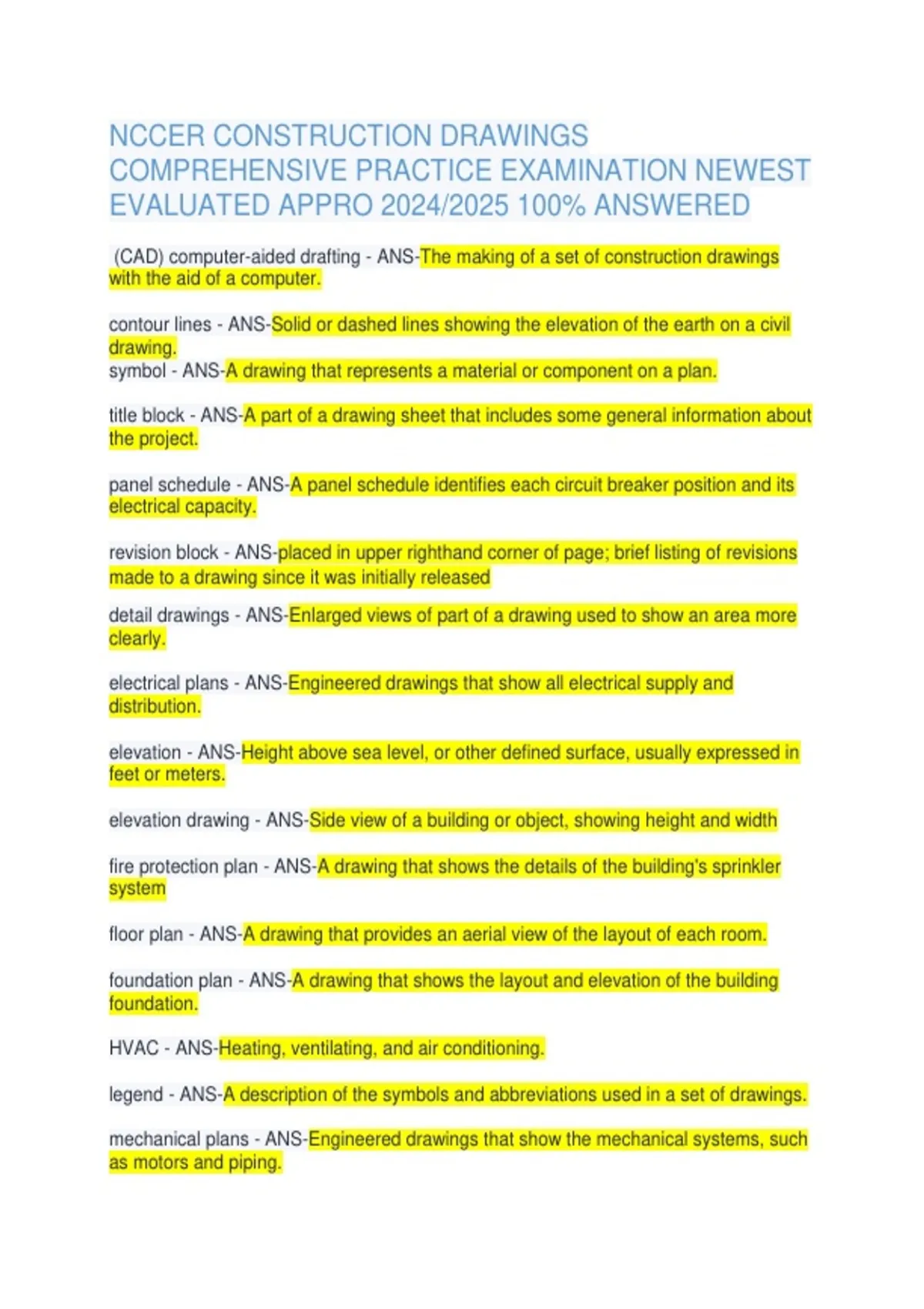

NCCER CONSTRUCTION DRAWINGS
COMPREHENSIVE PRACTICE EXAMINATION NEWEST
EVALUATED APPRO 2024/2025 100% ANSWERED
(CAD) computer-aided drafting - ANS-The making of a set of construction drawings
with the aid of a computer.
contour lines - ANS-Solid or dashed lines showing the elevation of the earth on a civil
drawing.
symbol - ANS-A drawing that represents a material or component on a plan.
title block - ANS-A part of a drawing sheet that includes some general information about
the project.
panel schedule - ANS-A panel schedule identifies each circuit breaker position and its
electrical capacity.
revision block - ANS-placed in upper righthand corner of page; brief listing of revisions
made to a drawing since it was initially released
detail drawings - ANS-Enlarged views of part of a drawing used to show an area more
clearly.
electrical plans - ANS-Engineered drawings that show all electrical supply and
distribution.
elevation - ANS-Height above sea level, or other defined surface, usually expressed in
feet or meters.
elevation drawing - ANS-Side view of a building or object, showing height and width
fire protection plan - ANS-A drawing that shows the details of the building's sprinkler
system
floor plan - ANS-A drawing that provides an aerial view of the layout of each room.
foundation plan - ANS-A drawing that shows the layout and elevation of the building
foundation.
HVAC - ANS-Heating, ventilating, and air conditioning.
legend - ANS-A description of the symbols and abbreviations used in a set of drawings.
mechanical plans - ANS-Engineered drawings that show the mechanical systems, such
as motors and piping.
